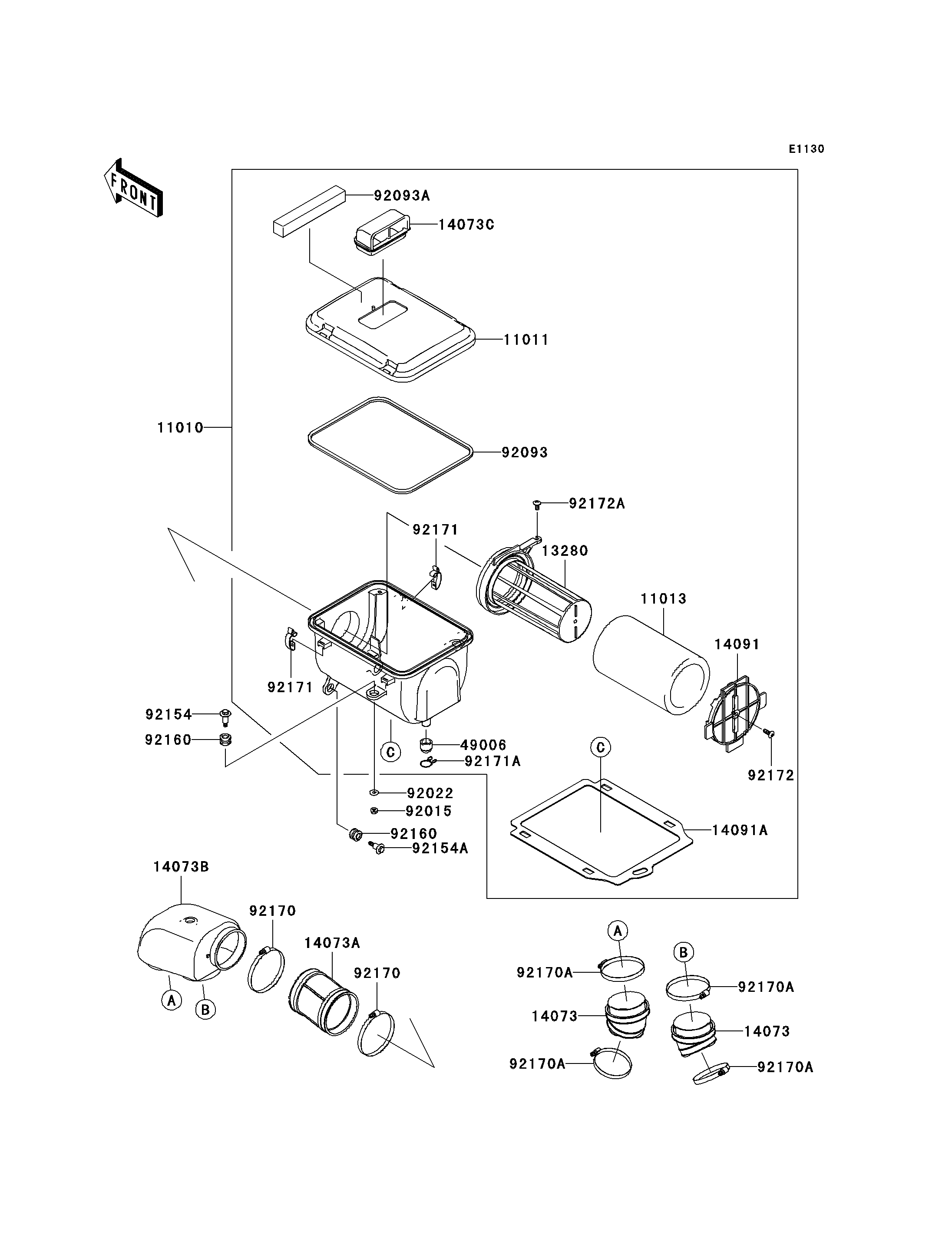

2008 Teryx® 750 4X4 - Air Cleaner

DOWNLOAD PDF
SELECT A NEW PART
11010
11011
11013
13280
14073
14073
14073A
14073B
14073C
14091
14091A
49006
92015
92022
92093
92093A
92154
92154A
92160
92160
92170
92170
92170A
92170A
92170A
92170A
92171
92171
92171A
92172
92172A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
FILTER-ASSY-AIR 11010 11010-0154 1
CASE-AIR FILTER,UPP 11011 11011-0120 1
ELEMENT-AIR FILTER 11013 11013-0018 1
HOLDER 13280 13280-0267 1
DUCT,JOINT 14073 14073-0030 2
DUCT,JOINT,A/C 14073A 14073-0140 1
DUCT,MIDDLE 14073B 14073-0141 1
DUCT 14073C 14073-0199 1
COVER 14091 14091-0935 1
COVER 14091A 14091-0989 1
BOOT,DRAIN 49006 49006-3718 1
NUT,FLANGED,6MM 92015 92015-1367 2
WASHER,6.5X16X1.0 92022 92022-1093 2
SEAL 92093 92093-0083 1
SEAL 92093A 92093-0126 1
BOLT,FLANGED,6X28.7 92154 92154-0028 2
BOLT,FLANGED,6X27.5 92154A 92154-0029 2
DAMPER 92160 92160-1594 4
CLAMP 92170 92170-1676 2
CLAMP 92170A 92170-1763 4
CLAMP 92171 92171-0225 4
CLAMP,BOOT 92171A 92171-3711 1
SCREW,6X18 92172 92172-0130 1
SCREW,6X14 92172A 92172-0131 1
