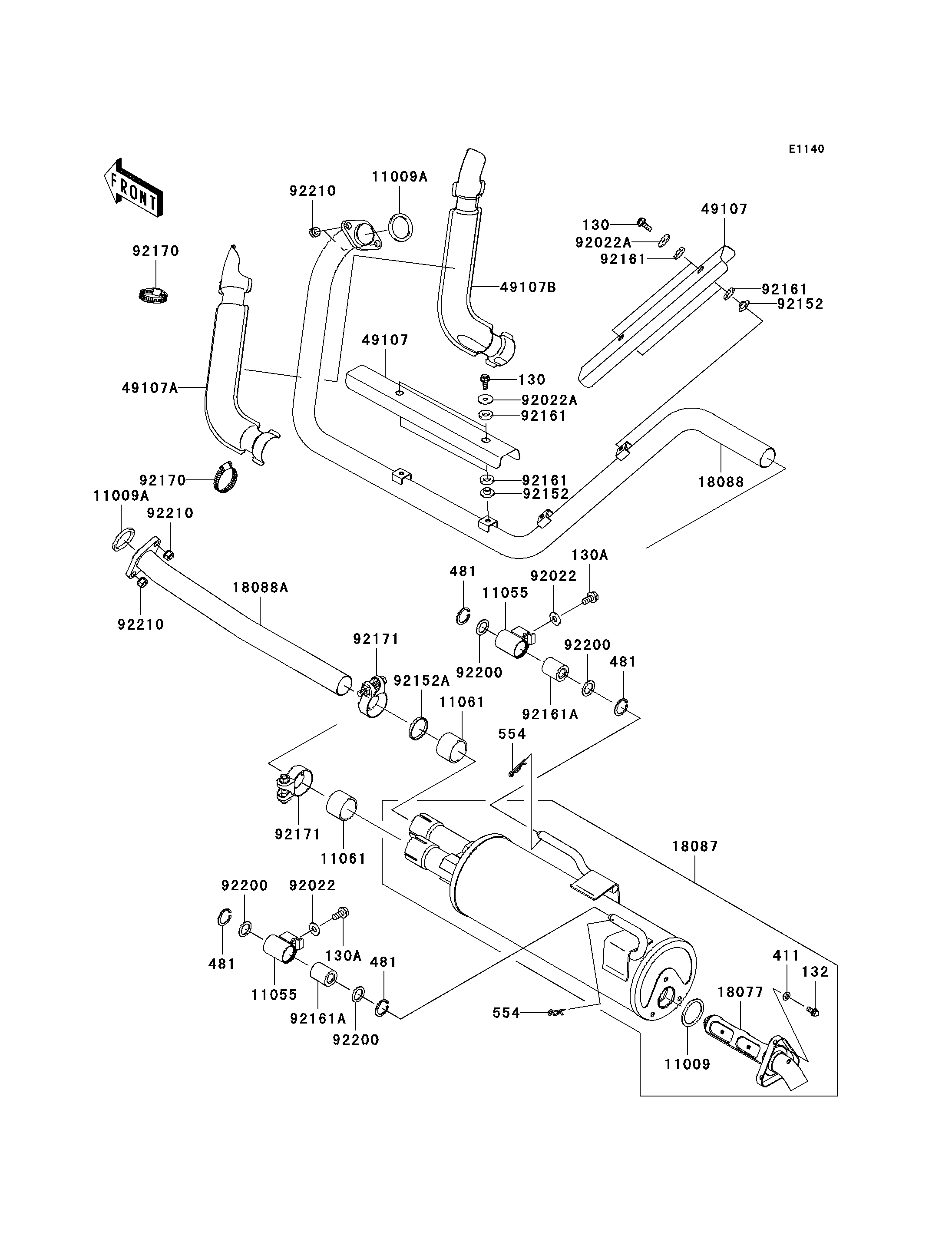

2008 Teryx® 750 4X4 - Muffler(s)

DOWNLOAD PDF
SELECT A NEW PART
130
130
130A
130A
132
411
481
481
481
481
554
554
11009
11009A
11009A
11055
11055
11061
11061
18077
18087
18088
18088A
49107
49107
49107A
49107B
92022
92022
92022A
92022A
92152
92152
92152A
92161
92161
92161
92161
92161A
92161A
92170
92170
92171
92171
92200
92200
92200
92200
92210
92210
92210
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED,6X16 130 130BD0616 4
BOLT-FLANGED,8X16 130A 130CB0816 2
BOLT-FLANGED-SMALL,6X12 132 132BD0612 3
WASHER-PLAIN,6MM 411 411S0600 3
CIRCLIP-TYPE-C,25MM 481 481J2500 4
PIN-SNAP,12MM 554 554DA1200 2
GASKET,EXHAUST PIPE HOLDER 11009 11009-1856 1
GASKET,EXHAUST HOLDER 11009A 11009-1894 2
BRACKET 11055 11055-0499 2
GASKET,MUFFLER CONNECTING 11061 11061-0360 2
ARRESTER-SPARK 18077 18077-0027 1
MUFFLER 18087 18087-0177 1
PIPE-EXHAUST,FR 18088 18088-0423 1
PIPE-EXHAUST,RR 18088A 18088-0430 1
COVER-EXHAUST PIPE,MIDDLE 49107 49107-0118 2
COVER-EXHAUST PIPE,FR,LH 49107A 49107-0130 1
COVER-EXHAUST PIPE,FR,RH 49107B 49107-0131 1
WASHER,8.5X20X1.6,BLACK 92022 92022-1317 2
WASHER,6.5X22X1.6 92022A 92022-237 4
COLLAR 92152 92152-0423 4
COLLAR 92152A 92152-0741 1
DAMPER 92161 92161-0319 8
DAMPER 92161A 92161-0594 2
CLAMP 92170 92170-1036 2
CLAMP 92171 92171-1921 2
WASHER,17X24.5X1.2 92200 92200-0421 4
NUT,8MM 92210 92210-1242 4
