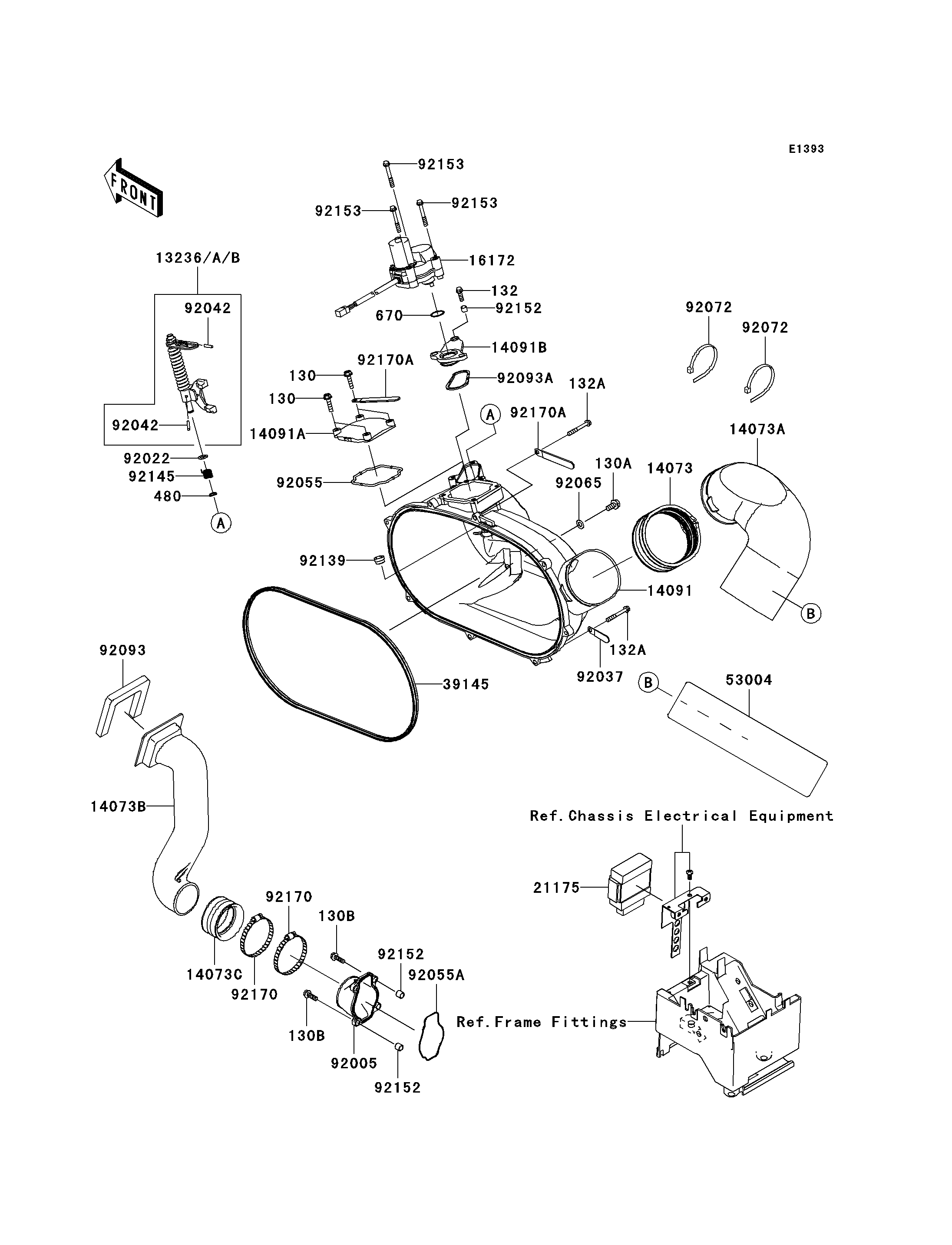

2008 Teryx® 750 4X4 - Converter Cover

DOWNLOAD PDF
SELECT A NEW PART
130
130
130A
130B
130B
132
132A
132A
480
670
13236
13236A
13236B
14073
14073A
14073B
14073C
14091
14091A
14091B
16172
21175
39145
53004
92005
92022
92037
92042
92042
92055
92055A
92065
92072
92072
92093
92093A
92139
92145
92152
92152
92152
92153
92153
92153
92170
92170
92170A
92170A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED,6X25 130 130BA0625 4
BOLT-FLANGED,8X16 130A 130BA0816 1
BOLT-FLANGED,6X20 130B 130CD0620 4
BOLT-FLANGED-SMALL,6X20 132 132BA0620 1
BOLT-FLANGED-SMALL,6X45 132A 132BA0645 8
CIRCLIP-TYPE-C,10MM 480 480J1000 1
O RING 670 670D3022 1
LEVER-COMP,YELLOW 13236 13236-0123 AR
LEVER-COMP,GREEN 13236A 13236-0124 AR
LEVER-COMP,PAINT LESS 13236B 13236-0125 1
DUCT,EXHAUST JOINT 14073 14073-0136 1
DUCT,EXHAUST 14073A 14073-0201 1
DUCT,INTAKE 14073B 14073-0213 1
DUCT,JOINT 14073C 14073-1775 1
COVER,CVT 14091 14091-0671 1
COVER,ACCESS 14091A 14091-0672 1
COVER,MOUNTING EYE,ACTR 14091B 14091-0673 1
ACTUATOR 16172 16172-0017 1
CONTROL UNIT-ELECTRONIC 21175 21175-0151 1
TRIM-SEAL 39145 39145-0037 1
MAT 53004 53004-0027 1
FITTING 92005 92005-1387 1
WASHER,10.2X16X1 92022 92022-1829 1
CLAMP,L=45 92037 92037-1539 1
PIN,DOWEL,4X15.8 92042 92042-014 AR
RING-O 92055 92055-0120 1
RING-O 92055A 92055-1630 1
GASKET 92065 92065-023 1
BAND,L=460 92072 92072-0073 2
SEAL,INTAKE DUCT 92093 92093-0140 1
SEAL 92093A 92093-1548 1
BUSHING,10X14X11 92139 92139-0214 1
SPRING,RETURN 92145 92145-0443 1
COLLAR 92152 92152-1332 5
BOLT,6X47 92153 92153-0678 3
CLAMP 92170 92170-1764 2
CLAMP 92170A 92170-1925 2
