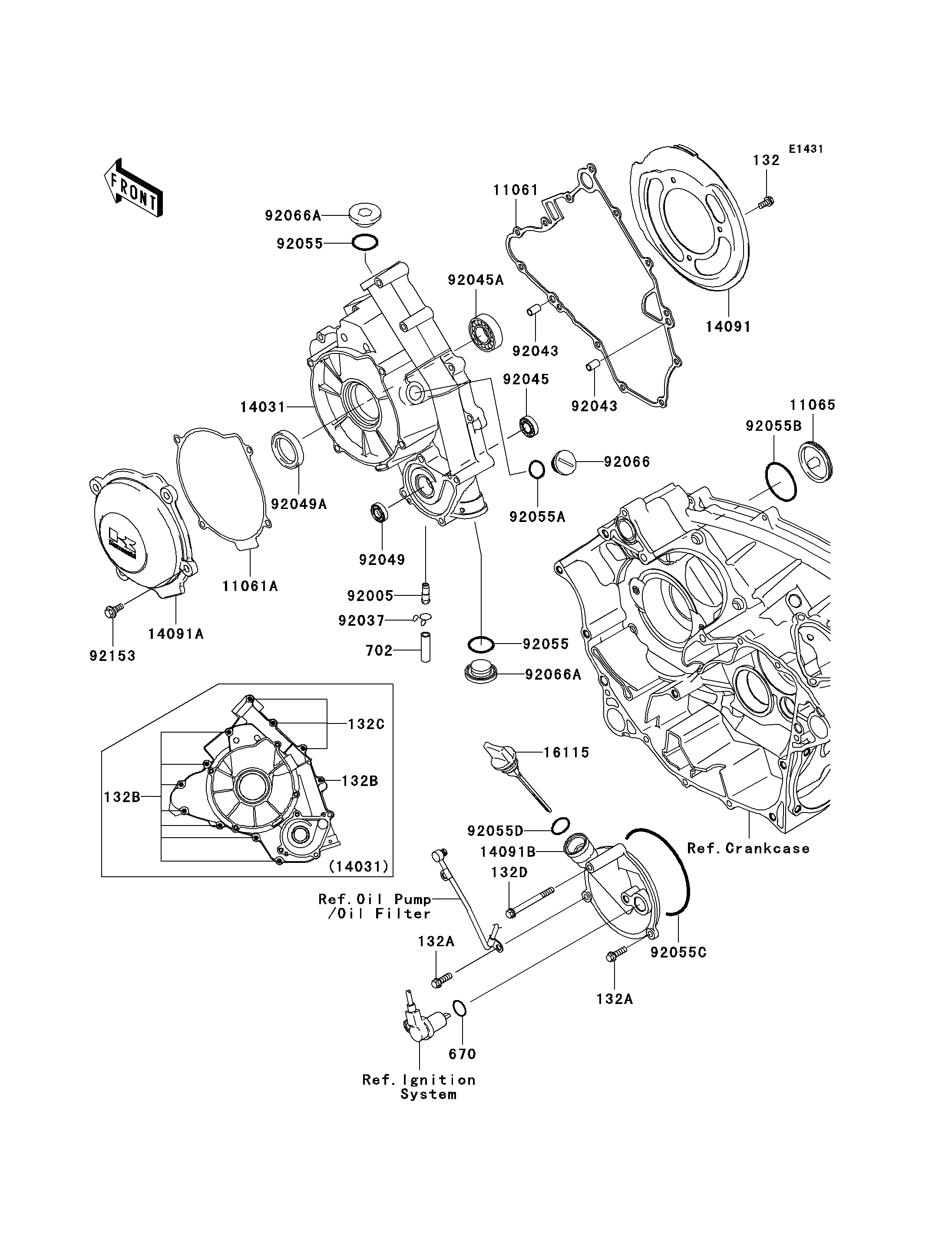

2008 Teryx® 750 4X4 - Engine Cover(s)

DOWNLOAD PDF
SELECT A NEW PART
132
132A
132A
132B
132B
132C
132D
670
702
11061
11061A
11065
14031
14091
14091A
14091B
16115
92005
92037
92043
92043
92045
92045A
92049
92049A
92055
92055
92055A
92055B
92055C
92055D
92066
92066A
92066A
92153
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED-SMALL,6X12 132 132BD0612 3
BOLT-FLANGED-SMALL,6X20 132A 132BD0620 2
BOLT-FLANGED-SMALL,6X30 132B 132BD0630 8
BOLT-FLANGED-SMALL,6X55 132C 132BD0655 3
BOLT-FLANGED-SMALL,6X65 132D 132BD0665 1
O RING 670 670D2018 1
TUBE-RUBBER,7X10X35 702 702A07035 1
GASKET 11061 11061-1119 1
GASKET 11061A 11061-1153 1
CAP 11065 11065-1151 1
COVER-GENERATOR 14031 14031-0030 1
COVER,BELT CONVERTER 14091 14091-0309 1
COVER 14091A 14091-0738 1
COVER 14091B 14091-1365 1
CAP-OIL FILLER 16115 16115-1072 1
FITTING 92005 92005-1369 1
CLAMP,TUBE 92037 92037-147 1
PIN,6.2X8X14 92043 92043-1263 2
BEARING-BALL,6901 92045 92045-0084 1
BEARING-BALL,TMB004JR2CM 92045A 92045-0086 1
SEAL-OIL,SC 12X22X5 92049 92049-1228 1
SEAL-OIL,HTC 28X45X7 92049A 92049-1576 1
RING-O,25.7X2.4 92055 92055-1136 2
RING-O,20X2 92055A 92055-1146 1
RING-O,44.7X2.4 92055B 92055-1279 1
RING-O,99.5X2.0 92055C 92055-1632 1
RING-O,20X3 92055D 92055-2185 1
PLUG,COVER 92066 92066-0011 1
PLUG,25X8 92066A 92066-0012 2
BOLT,FLANGED,6X16 92153 92153-7007 4
