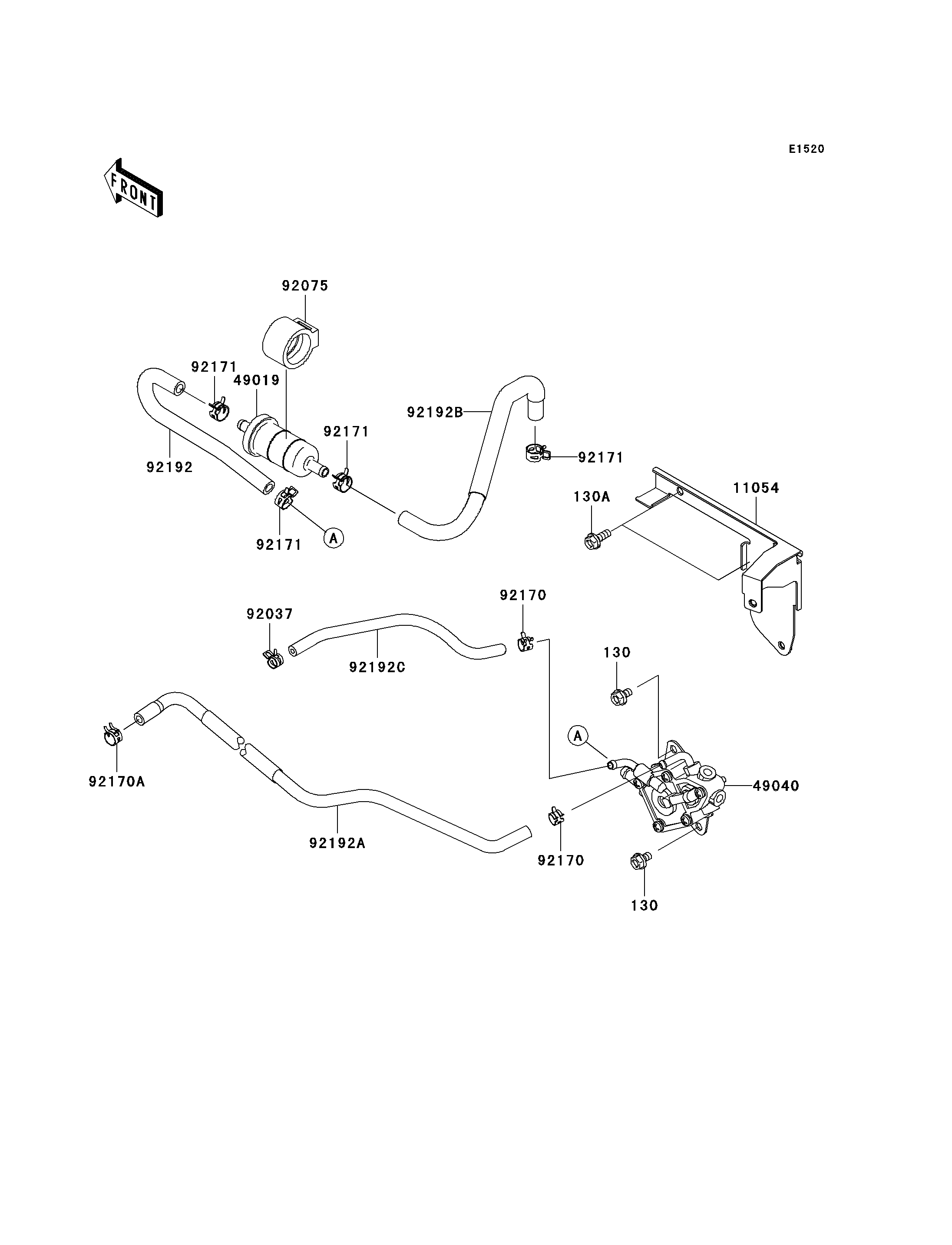

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED,6X10 130 130BB0610 2
BOLT-FLANGED,6X16 130A 130BB0616 2
BRACKET,FUEL PUMP 11054 11054-1078 1
FILTER-FUEL 49019 49019-1055 1
PUMP-FUEL 49040 49040-0025 1
CLAMP,TUBE 92037 92037-1461 1
DAMPER,FUEL FILTER 92075 92075-1853 1
CLAMP 92170 92170-2042 2
CLAMP 92170A 92170-2043 1
CLAMP 92171 92171-0515 4
TUBE,FUEL PUMP-FUEL FILTER 92192 92192-0403 1
TUBE,FUEL PUMP-CARB. 92192A 92192-0624 1
TUBE,TANK-FUEL FILTER 92192B 92192-0625 1
TUBE,FUEL PUMP-CYL.HEAD 92192C 92192-0643 1
