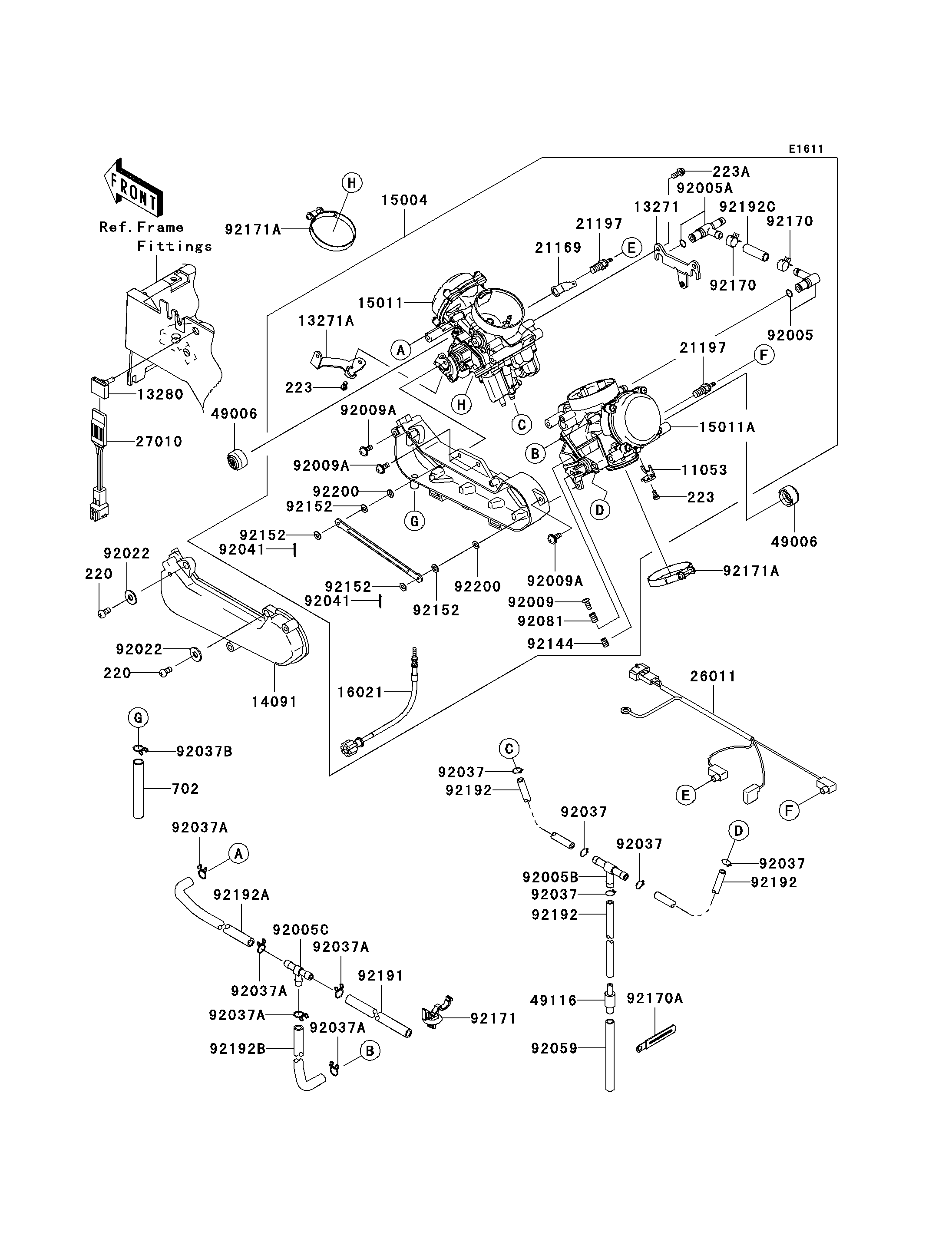

2008 Teryx® 750 4X4 - Carburetor

DOWNLOAD PDF
SELECT A NEW PART
11053
11053
13271
13271
13271A
13271A
13280
13280
14091
14091
15004
15004
15011
15011
15011A
15011A
16021
16021
21169
21169
21197
21197
21197
21197
26011
26011
27010
27010
49006
49006
49006
49006
49116
49116
92005
92005
92005A
92005A
92005B
92005B
92005C
92005C
92009
92009
92009A
92009A
92009A
92009A
92009A
92009A
92022
92022
92022
92022
92037
92037
92037
92037
92037
92037
92037
92037
92037
92037
92037A
92037A
92037A
92037A
92037A
92037A
92037A
92037A
92037A
92037A
92037B
92037B
92041
92041
92041
92041
92059
92059
92081
92081
92144
92144
92152
92152
92152
92152
92152
92152
92152
92152
92170
92170
92170
92170
92170A
92170A
92171
92171
92171A
92171A
92171A
92171A
92191
92191
92192
92192
92192
92192
92192
92192
92192A
92192A
92192B
92192B
92192C
92192C
92200
92200
92200
92200
220
220
220
220
223
223
223
223
223A
223A
702
702
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET 11053 11053-1606 1
PLATE 13271 13271-0750 1
PLATE 13271A 13271-0751 1
HOLDER,CARBURETOR 13280 13280-1253 1
COVER 14091 14091-0360 1
CARBURETOR-ASSY,CVKR34 15004 15004-0017 1
CARBURETOR,FR 15011 15011-0126 1
CARBURETOR,RR 15011A 15011-0127 1
SCREW-THROTTLE STOP 16021 16021-0011 1
TERMINAL 21169 21169-0001 1
HEATER 21197 21197-1006 2
WIRE-LEAD 26011 26011-0229 1
SWITCH 27010 27010-0013 1
BOOT,STARTER CABLE 49006 49006-1353 2
VALVE-ASSY 49116 49116-1126 1
FITTING 92005 92005-0029 1
FITTING 92005A 92005-0030 1
FITTING,TUBE,T-TYPE 92005B 92005-1017 1
FITTING,T-TYPE 92005C 92005-1119 1
SCREW,SYNCHRONIZE 92009 92009-1858 1
SCREW 92009A 92009-1878 4
WASHER,5.2X13X1 92022 92022-1380 2
CLAMP,TUBE 92037 92037-010 5
CLAMP,TUBE 92037A 92037-147 5
CLAMP,TUBE 92037B 92037-1972 1
COTTER 92041 92041-1061 2
TUBE,7X10X100 92059 92059-1736 1
SPRING 92081 92081-1620 1
SPRING 92144 92144-1451 1
COLLAR 92152 92152-0268 4
CLAMP,TUBE 92170 92170-1051 2
CLAMP 92170A 92170-1514 1
CLAMP 92171 92171-0453 1
CLAMP 92171A 92171-0722 2
TUBE,7X11X470 92191 92191-1531 1
TUBE,4.5X8X120 92192 92192-0141 3
TUBE,AIR-VENT,FR 92192A 92192-0276 1
TUBE,CARB.-FITTING 92192B 92192-0454 1
TUBE 92192C 92192-0606 1
WASHER,LINK ARM,PLASTIC 92200 92200-1432 2
SCREW-PAN-CROS,4X8 220 220AA0408 2
SCREW-PAN-WS-CROS,4X8 223 223AA0408 2
SCREW-PAN-WS-CROS,5X14 223A 223AA0514 2
TUBE-RUBBER 702 702A09080 1
