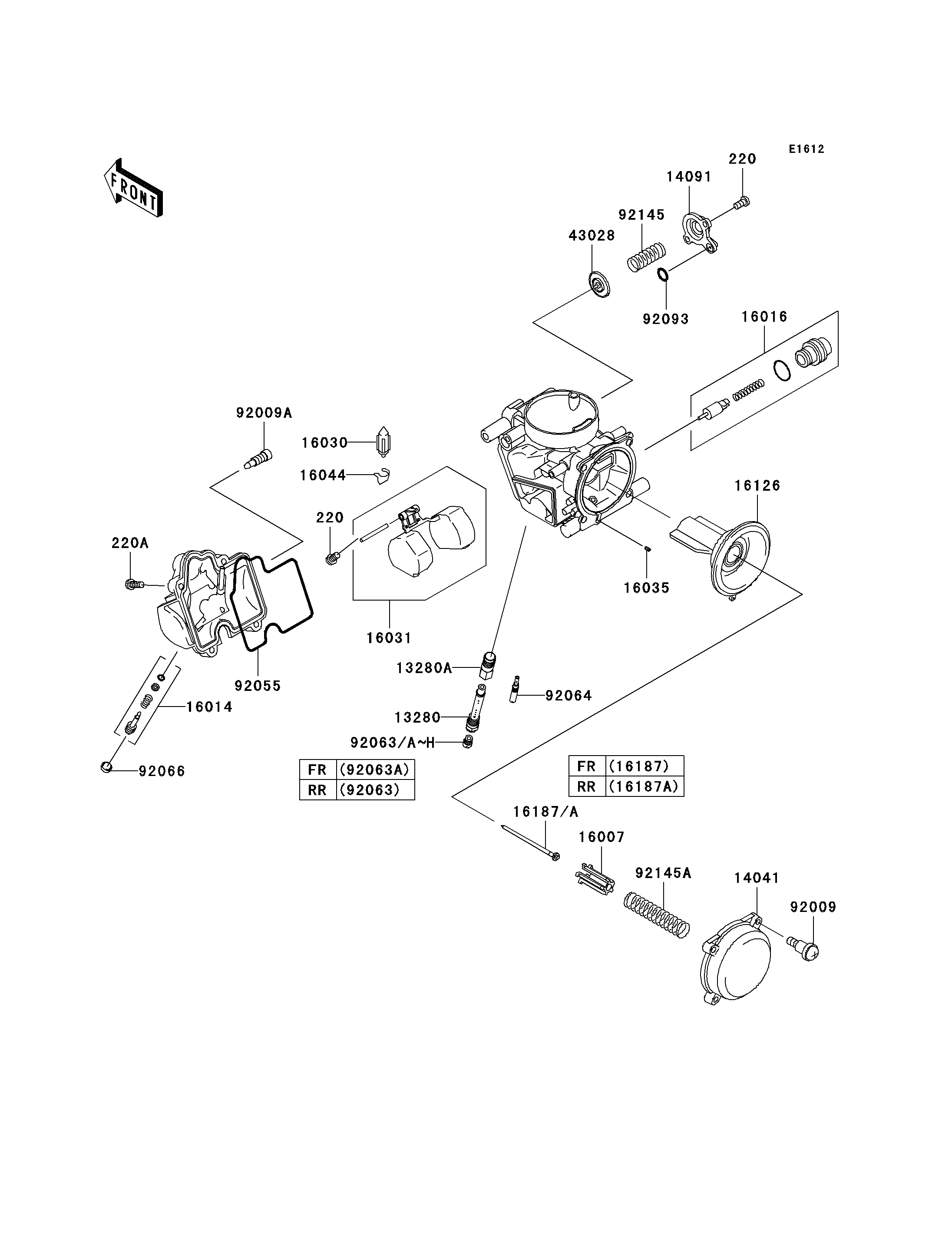

2008 Teryx® 750 4X4 - Carburetor Parts

DOWNLOAD PDF
SELECT A NEW PART
220
220
220A
13280
13280A
14041
14091
16007
16014
16016
16030
16031
16035
16044
16126
16187
16187A
43028
92009
92009A
92055
92063
92063A
92063B
92063C
92063D
92063E
92063F
92063G
92063H
92064
92066
92093
92145
92145A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
SCREW-PAN-CROS,4X8 220 220AA0408 6
SCREW-PAN-CROS,4X14 220A 220AA0414 8
HOLDER 13280 13280-0115 2
HOLDER,JET 13280A 13280-1096 2
CAP-CHAMBER,MIXING 14041 14041-1091 2
COVER,AIR CUT VALVE 14091 14091-1246 2
SEAT-SPRING,VALVE 16007 16007-1117 2
SCREW-PILOT AIR 16014 16014-0009 2
PLUNGER 16016 16016-1117 2
VALVE-FLOAT 16030 16030-1007 2
FLOAT 16031 16031-1097 2
JET-AIR,LEAK 16035 16035-1055 2
CLAMP,FLOAT VALVE 16044 16044-007 2
VALVE 16126 16126-0015 2
NEEDLE-JET,N3RL,FR 16187 16187-0281 1
NEEDLE-JET,NFCH,RR 16187A 16187-0282 1
DIAPHRAGM,AIR CUT VALVE 43028 43028-1085 2
SCREW,4X4.4 92009 92009-1549 8
SCREW,DRAIN,6X0.75 92009A 92009-1551 2
RING-O,FLOAT CHAMBER 92055 92055-1589 2
JET-MAIN,#140,RR 92063 92063-1013 1
JET-MAIN,#135,FR 92063A 92063-1014 1
JET-MAIN,#138 92063B 92063-1015 AR (OPTION)
JET-MAIN,#142 92063C 92063-1016 AR (OPTION)
JET-MAIN,#145 92063D 92063-1017 AR (OPTION)
JET-MAIN,#125 92063E 92063-1069 AR (OPTION)
JET-MAIN,#128 92063F 92063-1074 AR (OPTION)
JET-MAIN,#130 92063G 92063-1075 AR (OPTION)
JET-MAIN,#132 92063H 92063-1076 AR (OPTION)
JET-PILOT,#38 92064 92064-0011 2
PLUG,PILOT AIR SCREW,6.9X2 92066 92066-1051 2
SEAL,"U"RING 92093 92093-1046 2
SPRING,AIR CUT VALVE 92145 92145-0097 2
SPRING,VACUUM VALVE 92145A 92145-1064 2
