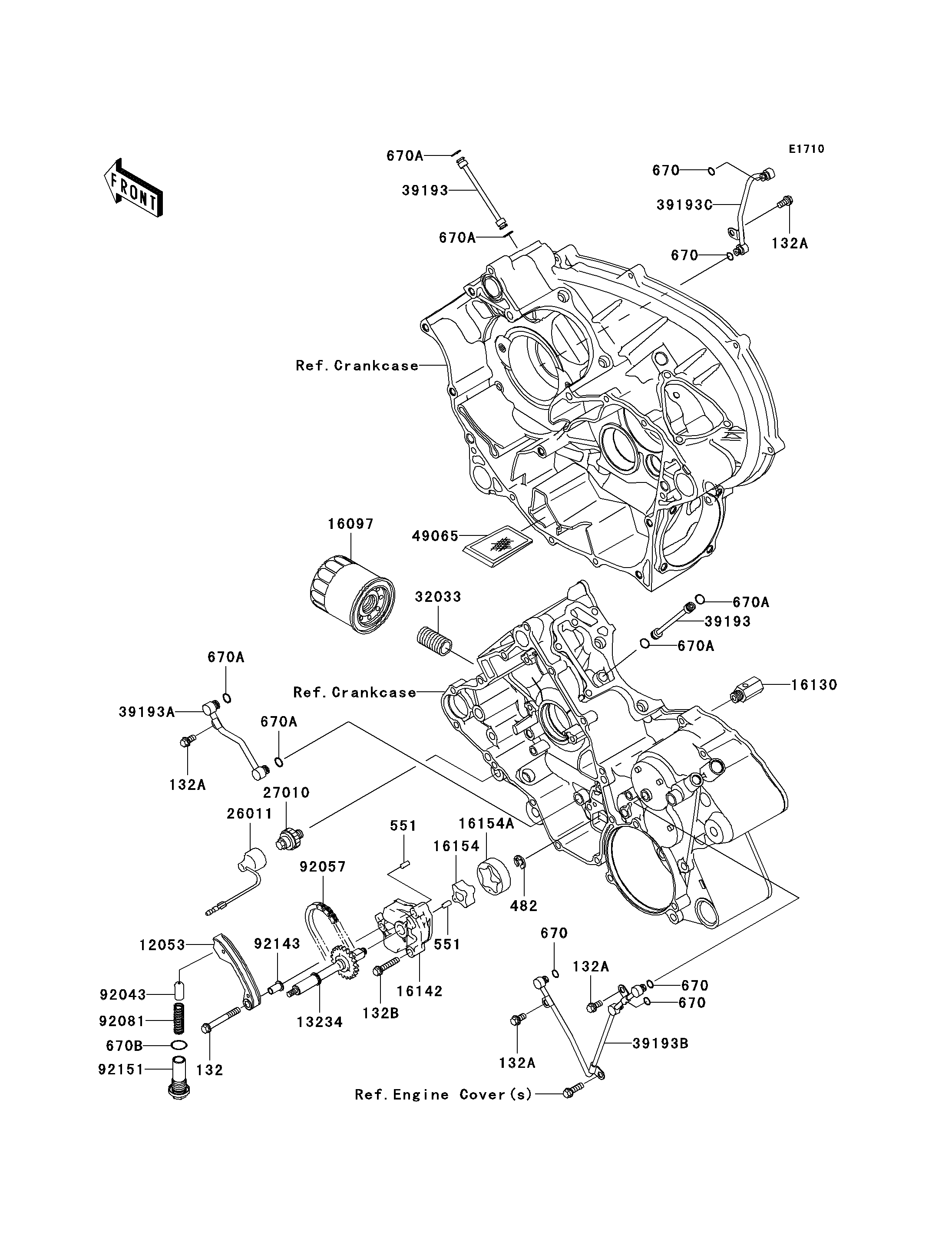

2008 Teryx® 750 4X4 - Oil Pump/Oil Filter

DOWNLOAD PDF
SELECT A NEW PART
132
132A
132A
132A
132A
132B
482
551
551
670
670
670
670
670
670A
670A
670A
670A
670A
670A
670B
12053
13234
16097
16130
16142
16154
16154A
26011
27010
32033
39193
39193
39193A
39193B
39193C
49065
92043
92057
92081
92143
92151
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED-SMALL,6X50 132 132BB0650 1
BOLT-FLANGED-SMALL,6X12 132A 132BD0612 4
BOLT-FLANGED-SMALL,6X30 132B 132BD0630 2
CIRCLIP-TYPE-E,6MM 482 482J6000 1
PIN-DOWEL,4X8 551 551A0408 2
O RING 670 670D1505 5
O RING,7MM 670A 670D1507 6
O RING,16MM 670B 670D2016 1
GUIDE-CHAIN,SLACK 12053 12053-1440 1
SHAFT-COMP,OIL PUMP 13234 13234-1112 1
FILTER-ASSY-OIL 16097 16097-0003 1
VALVE-ASSY-RELIEF 16130 16130-1058 1
COVER-PUMP 16142 16142-1162 1
ROTOR-PUMP,INNER 16154 16154-2059 1
ROTOR-PUMP,OUTER 16154A 16154-2060 1
WIRE-LEAD 26011 26011-1755 1
SWITCH,OIL PRESSURE 27010 27010-1313 1
PIPE,OIL FILTER 32033 32033-1535 1
PIPE-OIL,CRANKCASE-HEAD 39193 39193-0015 2
PIPE-OIL,CRANKSHAFT 39193A 39193-1052 1
PIPE-OIL,CRANKCASE,LH 39193B 39193-1053 1
PIPE-OIL,CRANKCASE,RH 39193C 39193-1054 1
FILTER-OIL 49065 49065-1086 1
PIN 92043 92043-076 1
CHAIN,DID SCR-0409 SDH 92057 92057-0075 1
SPRING 92081 92081-112 1
COLLAR 92143 92143-1857 1
BOLT,16X41 92151 92151-1781 1
