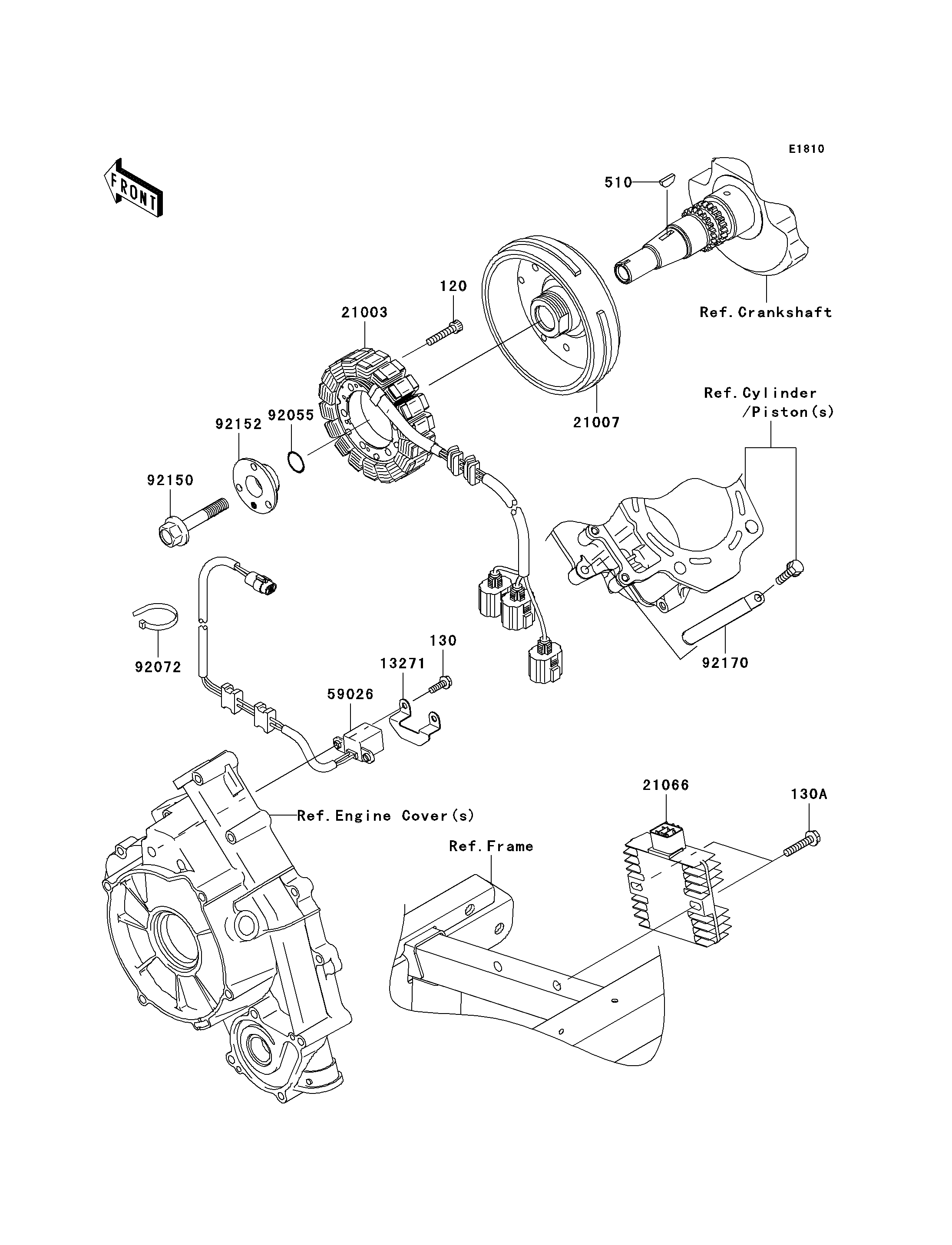

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-SOCKET,6X28 120 120CA0628 3
BOLT-FLANGED,5X16 130 130BA0516 2
BOLT-FLANGED,6X30 130A 130BB0630 2
KEY-WOODRUFF 510 510A4200 1
PLATE 13271 13271-1369 1
STATOR 21003 21003-0077 1
ROTOR 21007 21007-1367 1
REGULATOR-VOLTAGE 21066 21066-0030 1
COIL-PULSING 59026 59026-1159 1
RING-O,19.8X2.2 92055 92055-1215 1
BAND,L=188 92072 92072-1239 1
BOLT,12X65 92150 92150-1987 1
COLLAR,20X51X17 92152 92152-1467 1
CLAMP 92170 92170-1925 1
