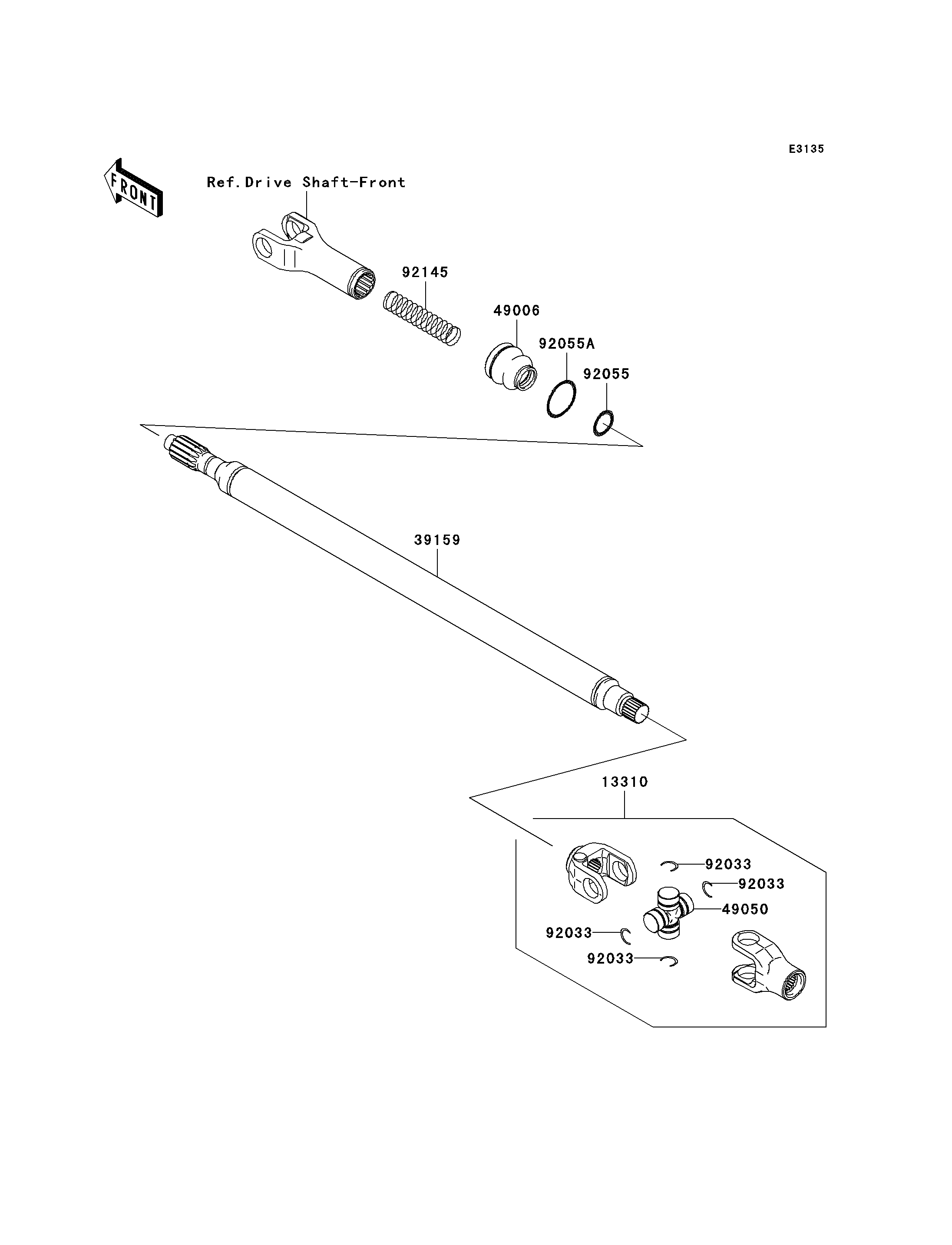

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
SHAFT-ASSY 13310 13310-0017 1
SHAFT-DRIVE 39159 39159-0021 1
BOOT 49006 49006-0010 1
SPIDER 49050 49050-1075 1
RING-SNAP 92033 92033-1030 4
RING-O,18X24X3 92055 92055-1633 1
RING-O,30X35X2.5 92055A 92055-1693 1
SPRING 92145 92145-0247 1
