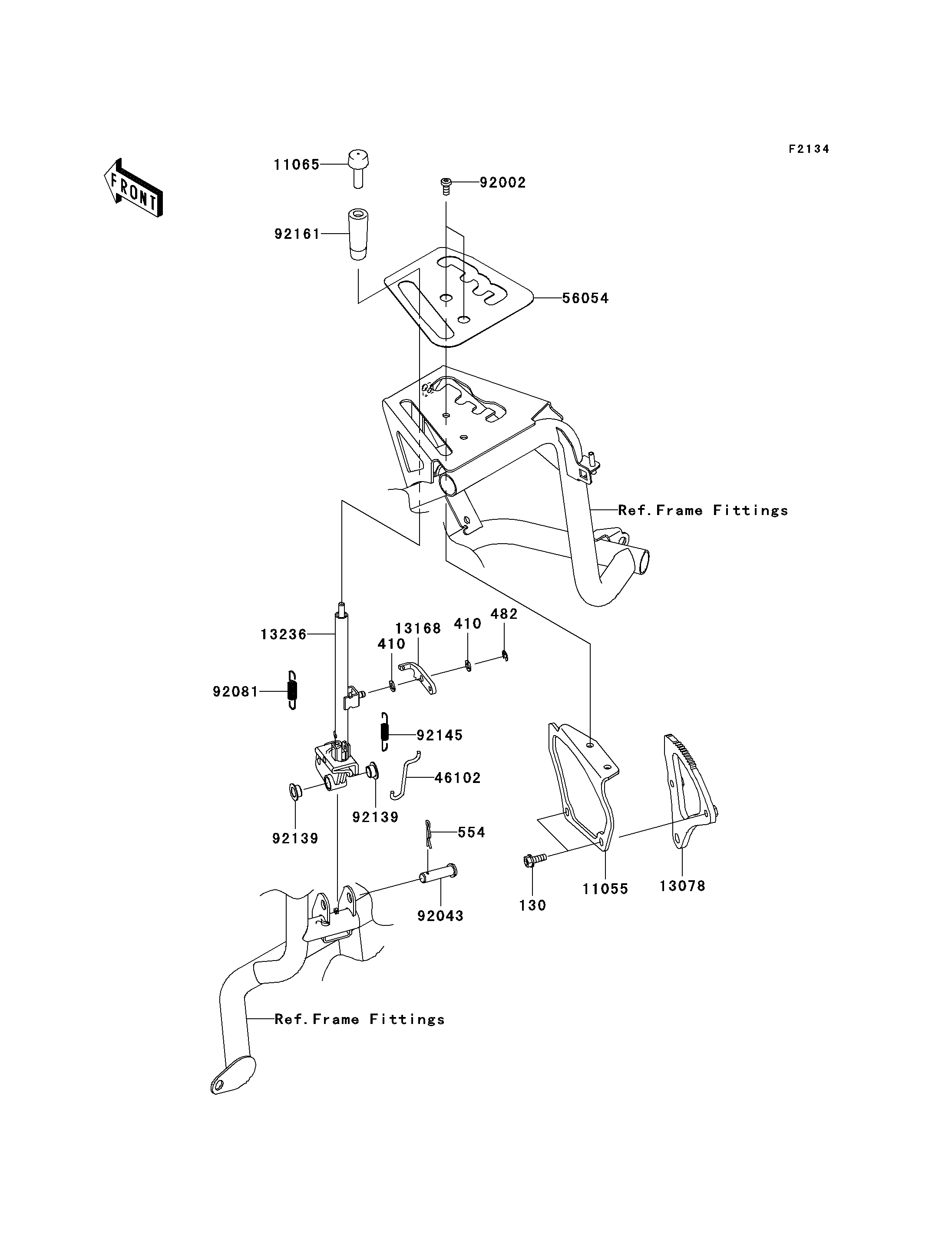

Parts Diagrams |
130
410
410
482
554
11055
11065
13078
13168
13236
46102
56054
92002
92043
92081
92139
92139
92145
92161
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BOLT-FLANGED,6X16 | 130 | 130BB0616 | 2 | ||
| WASHER-PLAIN-SMALL | 410 | 410AA0600 | 2 | ||
| CIRCLIP-TYPE-E | 482 | 482EA5000 | 1 | ||
| PIN-SNAP,10MM | 554 | 554DA1000 | 1 | ||
| BRACKET | 11055 | 11055-0477 | 1 | ||
| CAP | 11065 | 11065-0269 | 1 | ||
| RATCHET | 13078 | 13078-0021 | 1 | ||
| LEVER | 13168 | 13168-0175 | 1 | ||
| LEVER-COMP | 13236 | 13236-0163 | 1 | ||
| ROD | 46102 | 46102-0131 | 1 | ||
| MARK,DIFF LOCK | 56054 | 56054-0179 | 1 | ||
| BOLT,6X14 | 92002 | 92002-1700 | 2 | ||
| PIN,10X34 | 92043 | 92043-1069 | 1 | ||
| SPRING | 92081 | 92081-1023 | 1 | ||
| BUSHING | 92139 | 92139-0230 | 2 | ||
| SPRING | 92145 | 92145-0611 | 1 | ||
| DAMPER | 92161 | 92161-0616 | 1 |
