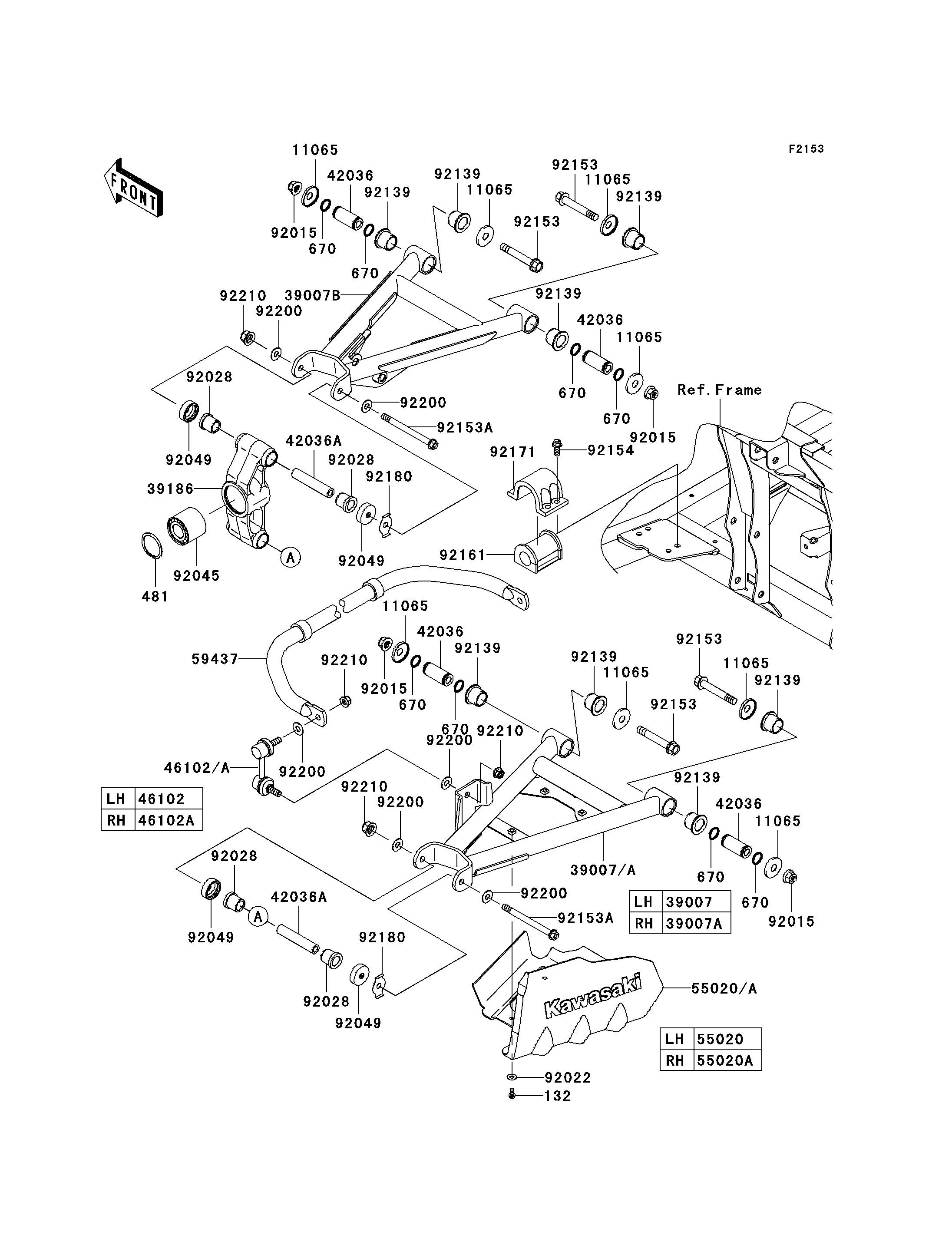

2008 Teryx® 750 4X4 - Rear Suspension

DOWNLOAD PDF
SELECT A NEW PART
132
481
670
670
670
670
670
670
670
670
11065
11065
11065
11065
11065
11065
11065
11065
39007
39007
39007A
39007A
39007B
39186
42036
42036
42036
42036
42036A
42036A
46102
46102
46102A
46102A
55020
55020
55020A
55020A
59437
92015
92015
92015
92015
92022
92028
92028
92028
92028
92045
92049
92049
92049
92049
92139
92139
92139
92139
92139
92139
92139
92139
92153
92153
92153
92153
92153A
92153A
92154
92161
92171
92180
92180
92200
92200
92200
92200
92200
92200
92210
92210
92210
92210
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED-SMALL,6X12 132 132BB0612 6
CIRCLIP 481 481J5200 2
O RING,18MM 670 670B2018 16
CAP 11065 11065-0253 16
ARM-SUSP,RR,LWR,LH 39007 39007-0128 1
ARM-SUSP,RR,LWR,RH 39007A 39007-0129 1
ARM-SUSP,RR,UPP,LH&RH 39007B 39007-0143 2
KNUCKLE,RR,LH&RH 39186 39186-0071 2
SLEEVE 42036 42036-0062 8
SLEEVE,10X17X85.6 42036A 42036-1190 4
ROD,STABILIZER,LH 46102 46102-0100 1
ROD,STABILIZER,RH 46102A 46102-0101 1
GUARD,RR,LH 55020 55020-0310 1
GUARD,RR,RH 55020A 55020-0311 1
STABILIZER 59437 59437-0006 1
NUT,LOCK,FLANGED,12MM 92015 92015-1433 8
WASHER,7X16X1.2 92022 92022-1344 6
BUSHING 92028 92028-1466 8
BEARING-BALL,DAC2552W-7CS31 92045 92045-0102 2
SEAL-OIL,KNUCKLE 92049 92049-1198 8
BUSHING 92139 92139-0231 16
BOLT,FLANGED,12X76.5 92153 92153-1733 8
BOLT,FLANGED,10X117 92153A 92153-1966 4
BOLT,FLANGED,8X20 92154 92154-0100 8
DAMPER 92161 92161-0539 2
CLAMP 92171 92171-1695 2
SHIM 92180 92180-0292 AR
WASHER,10.3X23X1.6 92200 92200-2009 12
NUT,LOCK,FLANGED,10MM 92210 92210-0276 8
