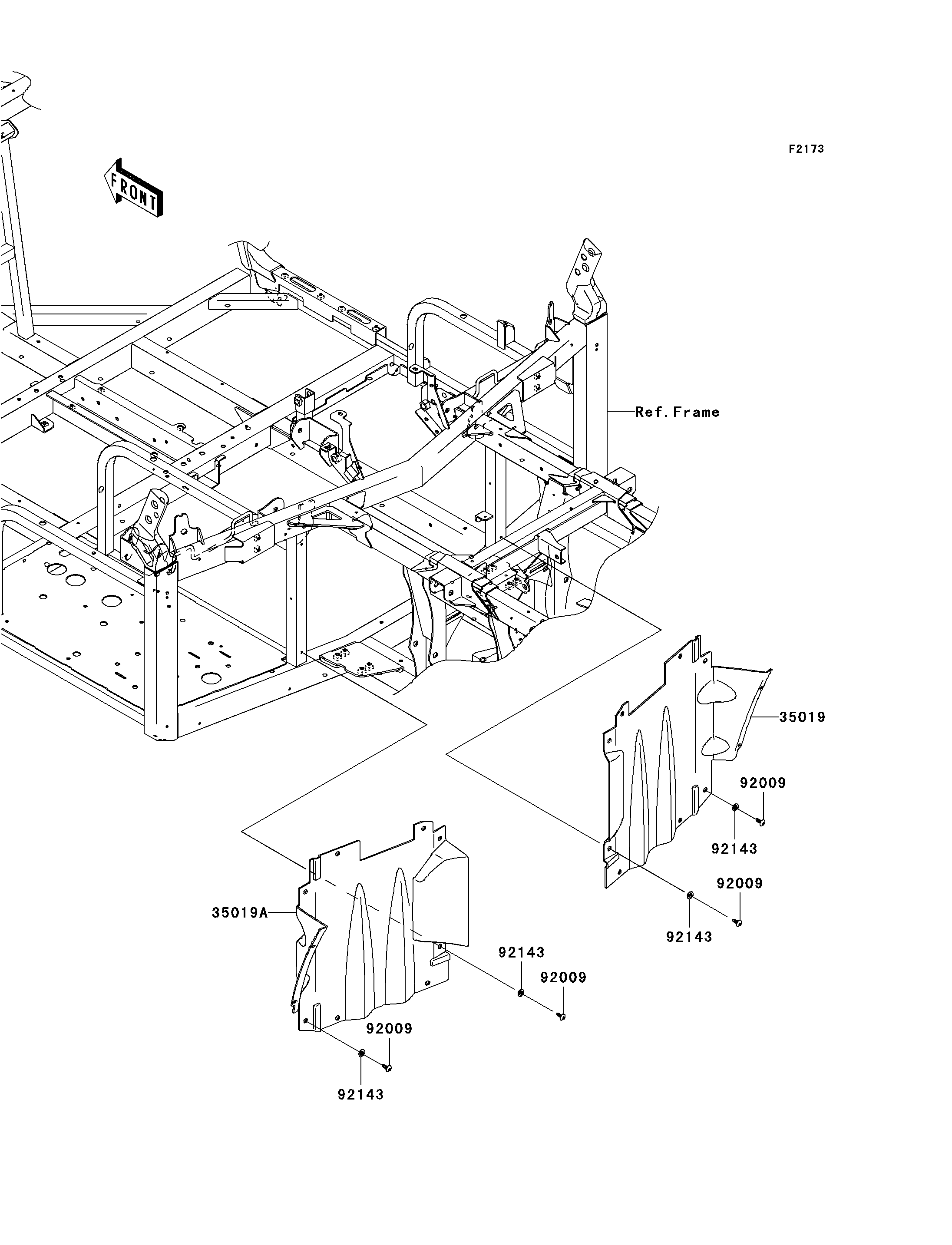

35019
35019A
92009
92009
92009
92009
92143
92143
92143
92143
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
FLAP,RH 35019 35019-0054 1
FLAP,LH 35019A 35019-0072 1
SCREW,TAPPING,6X16 92009 92009-1166 16
COLLAR 92143 92143-1087 16
