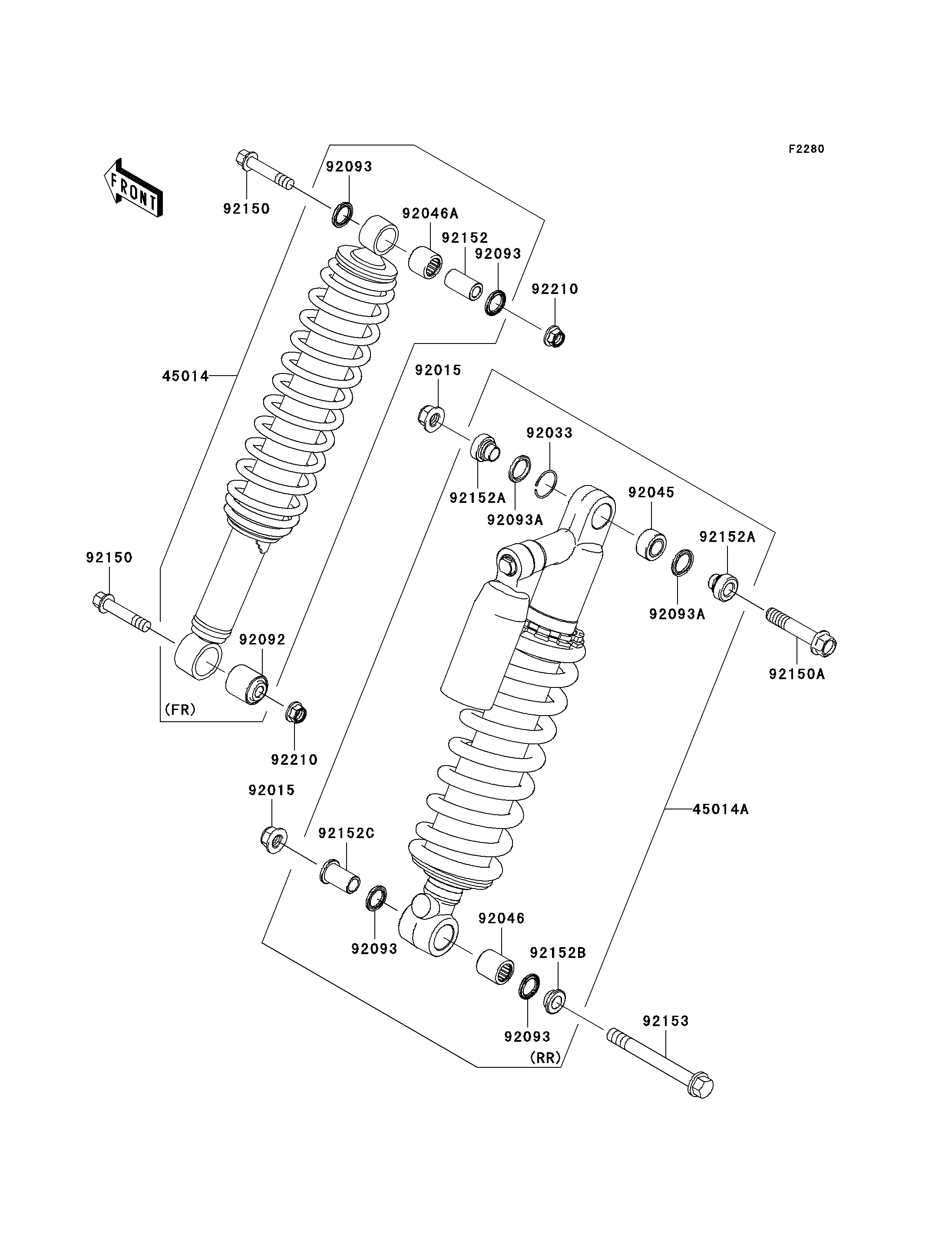

2008 Teryx® 750 4X4 - Shock Absorber(s)

DOWNLOAD PDF
SELECT A NEW PART
45014
45014A
92015
92015
92033
92045
92046
92046A
92092
92093
92093
92093
92093
92093A
92093A
92150
92150
92150A
92152
92152A
92152A
92152B
92152C
92153
92210
92210
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
SHOCKABSORBER,FR,BLACK 45014 45014-0232-17D 2
SHOCKABSORBER,RR,BLACK 45014A 45014-0233-17D 2
NUT,LOCK,FLANGED,12MM 92015 92015-1433 4
RING-SNAP 92033 92033-0054 2
BEARING-BALL 92045 92045-0120 2
BEARING-NEEDLE 92046 92046-0031 2
BEARING-NEEDLE 92046A 92046-0032 2
BUSHING-RUBBER 92092 92092-0014 2
SEAL 92093 92093-0124 8
SEAL 92093A 92093-0125 4
BOLT,FLANGED,10X50 92150 92150-1125 4
BOLT,FLANGED,12X63 92150A 92150-1258 2
COLLAR 92152 92152-0635 2
COLLAR 92152A 92152-0637 4
COLLAR 92152B 92152-0681 2
COLLAR 92152C 92152-0682 2
BOLT,FRANGED,12X108 92153 92153-1741 2
NUT,LOCK,FLANGED,10MM 92210 92210-0276 4
