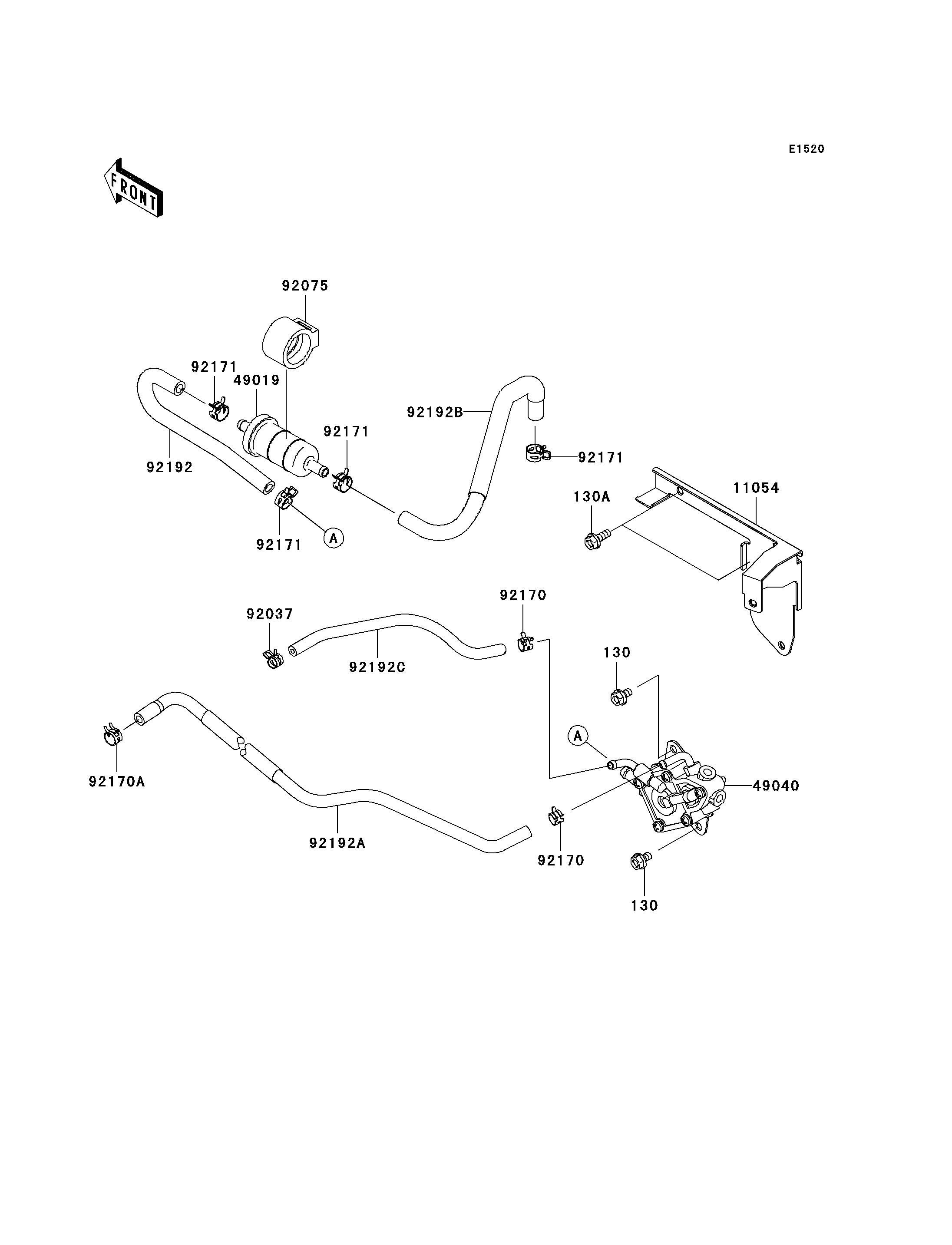

Parts Diagrams |
130
130
130A
11054
49019
49040
92037
92075
92170
92170
92170A
92171
92171
92171
92171
92192
92192A
92192B
92192C
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BOLT-FLANGED,6X10 | 130 | 130BB0610 | 2 | ||
| BOLT-FLANGED,6X16 | 130A | 130BB0616 | 2 | ||
| BRACKET,FUEL PUMP | 11054 | 11054-1078 | 1 | ||
| FILTER-FUEL | 49019 | 49019-1055 | 1 | ||
| PUMP-FUEL | 49040 | 49040-0025 | 1 | ||
| CLAMP,TUBE | 92037 | 92037-1461 | 1 | ||
| DAMPER,FUEL FILTER | 92075 | 92075-1853 | 1 | ||
| CLAMP | 92170 | 92170-2042 | 2 | ||
| CLAMP | 92170A | 92170-2043 | 1 | ||
| CLAMP | 92171 | 92171-0515 | 4 | ||
| TUBE,FUEL PUMP-FUEL FILTER | 92192 | 92192-0403 | 1 | ||
| TUBE,FUEL PUMP-CARB. | 92192A | 92192-0624 | 1 | ||
| TUBE,TANK-FUEL FILTER | 92192B | 92192-0625 | 1 | ||
| TUBE,FUEL PUMP-CYL.HEAD | 92192C | 92192-0643 | 1 |
