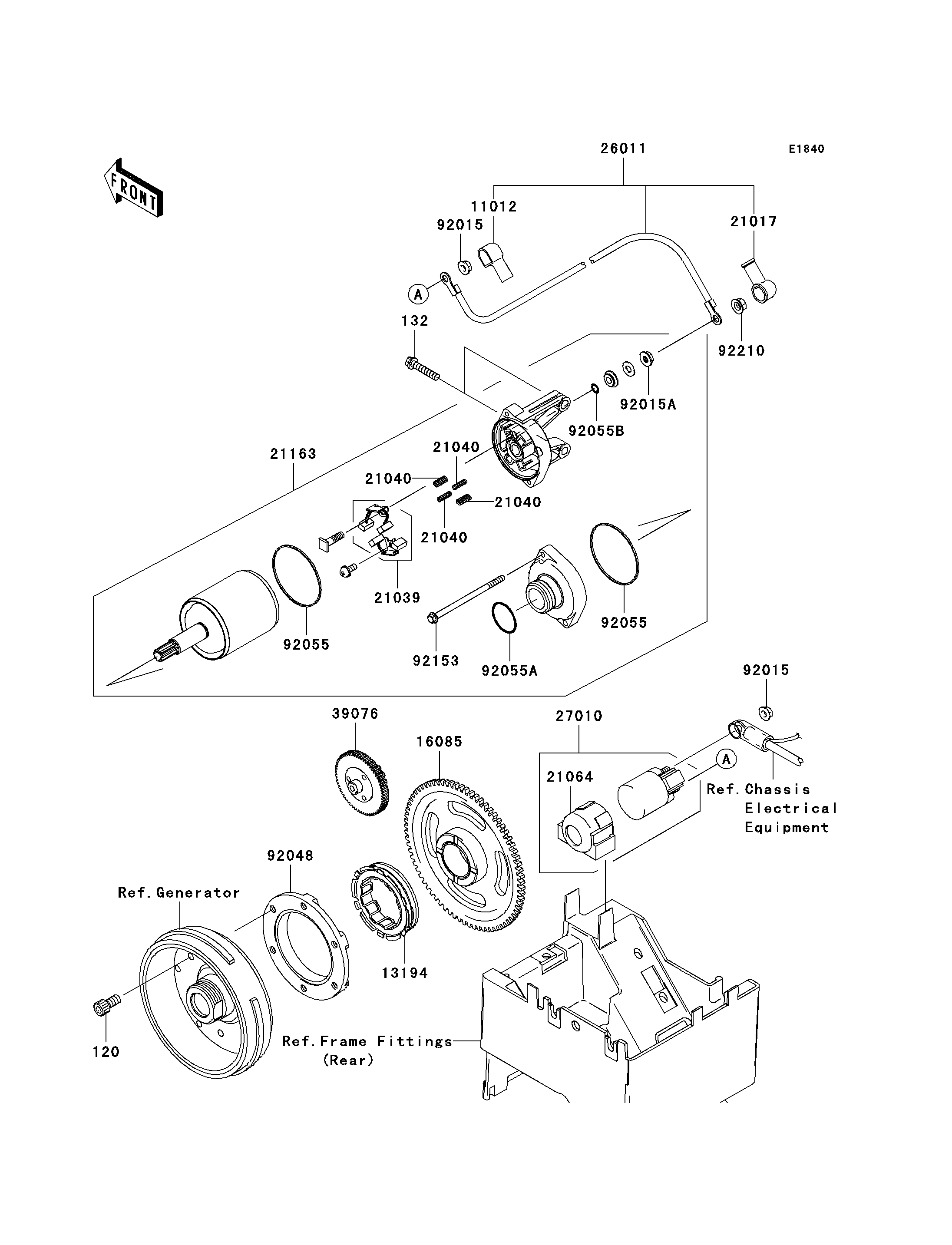

2008 Teryx® 750 4X4 LE - Starter Motor

DOWNLOAD PDF
SELECT A NEW PART
120
132
11012
13194
16085
21017
21039
21040
21040
21040
21040
21064
21163
26011
27010
39076
92015
92015
92015A
92048
92055
92055
92055A
92055B
92153
92210
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-SOCKET,8X16 120 120CA0816 6
BOLT-FLANGED-SMALL,6X30 132 132BD0630 2
CAP,TERMINAL 11012 11012-1354 1
CLUTCH-ONEWAY 13194 13194-1094 1
GEAR,STARTER 16085 16085-1238 1
GROMMET,STARTER TERMINAL 21017 21017-017 1
BRUSH,CARBON 21039 21039-0004 1
SPRING-BRUSH 21040 21040-0003 4
DAMPER,MAGNETIC SWITCH 21064 21064-002 1
STARTER-ELECTRIC 21163 21163-0037 1
WIRE-LEAD,STARTER CABLE 26011 26011-0111 1
SWITCH,MAGNETIC 27010 27010-1098 1
LIMITER,STARTER 39076 39076-0005 1
NUT,FLANGED,6MM 92015 92015-1367 2
NUT,STARTER MOTOR 92015A 92015-1476 1
RACE,ONE WAY CLUTCH 92048 92048-0002 1
RING-O 92055 92055-0136 2
RING-O 92055A 92055-1276 1
RING-O,4.5X2.0 92055B 92055-1370 1
BOLT 92153 92153-1850 2
NUT,6MM 92210 92210-0188 1
