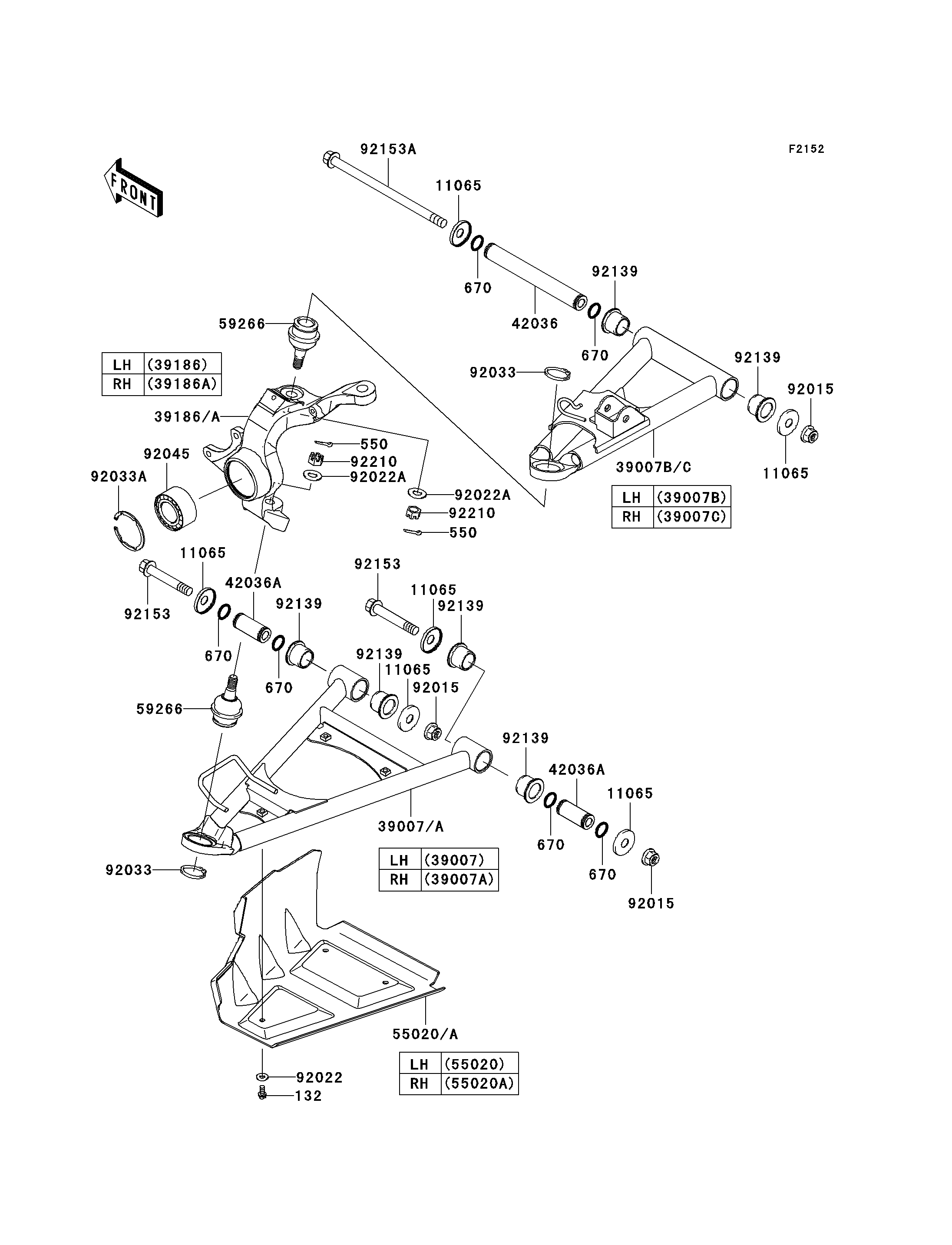

2008 Teryx® 750 4X4 LE - Front Suspension
132
550
550
670
670
670
670
670
670
11065
11065
11065
11065
11065
11065
39007
39007A
39007B
39007C
39186
39186A
42036
42036A
42036A
55020
55020A
59266
59266
92015
92015
92015
92022
92022A
92022A
92033
92033
92033A
92045
92139
92139
92139
92139
92139
92139
92153
92153
92153A
92210
92210
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
BOLT-FLANGED-SMALL,6X12 | 132 | 132BB0612 | 6 | ||
PIN-COTTER,3.0X25 | 550 | 550AA3025 | 4 | ||
O RING,18MM | 670 | 670B2018 | 12 | ||
CAP | 11065 | 11065-0253 | 12 | ||
ARM-SUSP,FR,LWR,LH | 39007 | 39007-0082 | 1 | ||
ARM-SUSP,FR,LWR,RH | 39007A | 39007-0094 | 1 | ||
ARM-SUSP,FR,UPP,LH | 39007B | 39007-0132 | 1 | ||
ARM-SUSP,FR,UPP,RH | 39007C | 39007-0133 | 1 | ||
KNUCKLE,FR,LH | 39186 | 39186-0086 | 1 | ||
KNUCKLE,FR,RH | 39186A | 39186-0087 | 1 | ||
SLEEVE | 42036 | 42036-0061 | 2 | ||
SLEEVE | 42036A | 42036-0062 | 4 | ||
GUARD,FR,LH | 55020 | 55020-0308 | 1 | ||
GUARD,FR,RH | 55020A | 55020-0309 | 1 | ||
JOINT-BALL | 59266 | 59266-0014 | 4 | ||
NUT,LOCK,FLANGED,12MM | 92015 | 92015-1433 | 6 | ||
WASHER,7X16X1.2 | 92022 | 92022-1344 | 6 | ||
WASHER | 92022A | 92022-1831 | 4 | ||
RING-SNAP,C-TYPE,32MM | 92033 | 92033-1262 | 4 | ||
RING-SNAP,55MM | 92033A | 92033-1274 | 2 | ||
BEARING-BALL,DAC3055W-3CS31 | 92045 | 92045-0123 | 2 | ||
BUSHING | 92139 | 92139-0231 | 12 | ||
BOLT,FLANGED,12X76.5 | 92153 | 92153-1733 | 4 | ||
BOLT,FLANGED,12X213 | 92153A | 92153-1958 | 2 | ||
NUT,CASTLE,12MM | 92210 | 92210-0395 | 4 |
