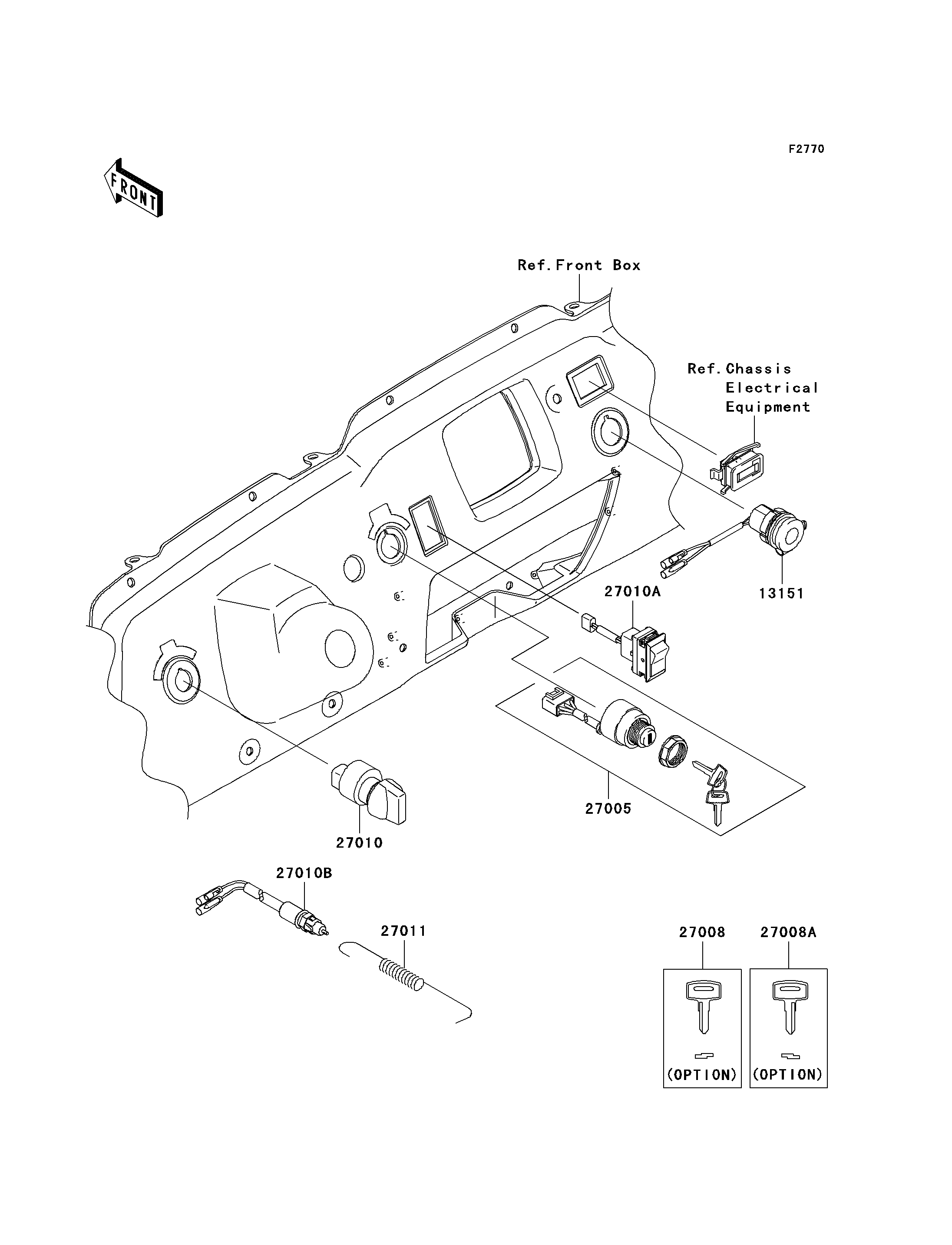

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
SWITCH-COMP,D.C.TERMINAL 13151 13151-0003 1
SWITCH-ASSY-IGNITION 27005 27005-0036 1
KEY-LOCK,BLANK 27008 27008-1153 1 (OPTION)
KEY-LOCK,BLANK 27008A 27008-1157 1 (OPTION)
SWITCH,HEAD LAMP 27010 27010-0067 1
SWITCH,2/4WD 27010A 27010-0068 1
SWITCH,REAR BRAKE 27010B 27010-1475 1
SPRING,BRAKE LAMP SWITCH 27011 27011-006 1
