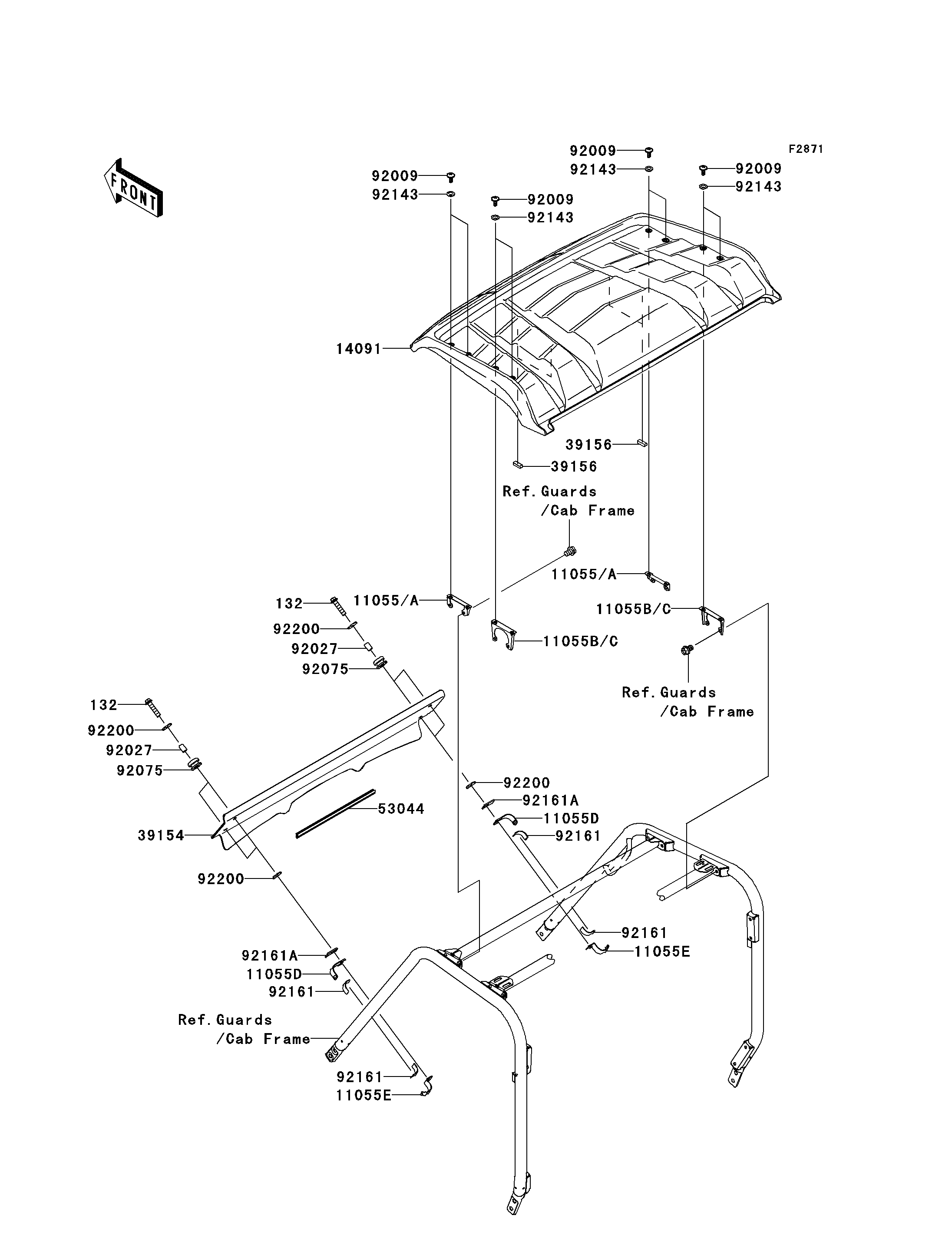

2008 Teryx® 750 4X4 LE - Cowling

DOWNLOAD PDF
SELECT A NEW PART
132
132
11055
11055
11055A
11055A
11055B
11055B
11055C
11055C
11055D
11055D
11055E
11055E
14091
39154
39156
39156
53044
92009
92009
92009
92009
92027
92027
92075
92075
92143
92143
92143
92143
92161
92161
92161
92161
92161A
92161A
92200
92200
92200
92200
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED-SMALL,6X35 132 132BB0635 4
BRACKET,SUN TOP,RED 11055 11055-0156-16I 2
BRACKET,SUN TOP,W.BLACK 11055A 11055-0156-388 2
BRACKET,SUN TOP,RED 11055B 11055-0255-16I 2
BRACKET,SUN TOP,W.BLACK 11055C 11055-0255-388 2
BRACKET,WINDSHIELD 11055D 11055-0913 4
BRACKET,WINDSHIELD 11055E 11055-0914 4
COVER,SUN TOP,F.BLACK 14091 14091-1614-6Z 1
WINDSHIELD 39154 39154-0043 1
PAD 39156 39156-0479 4
TRIM,L=450 53044 53044-0044 1
SCREW,6X16 92009 92009-1621 8
COLLAR,6.8X10X14.5 92027 92027-156 4
DAMPER 92075 92075-1787 4
COLLAR 92143 92143-1087 8
DAMPER 92161 92161-0644 8
DAMPER 92161A 92161-0681 4
WASHER,6.5X22X1.6 92200 92200-1087 8
