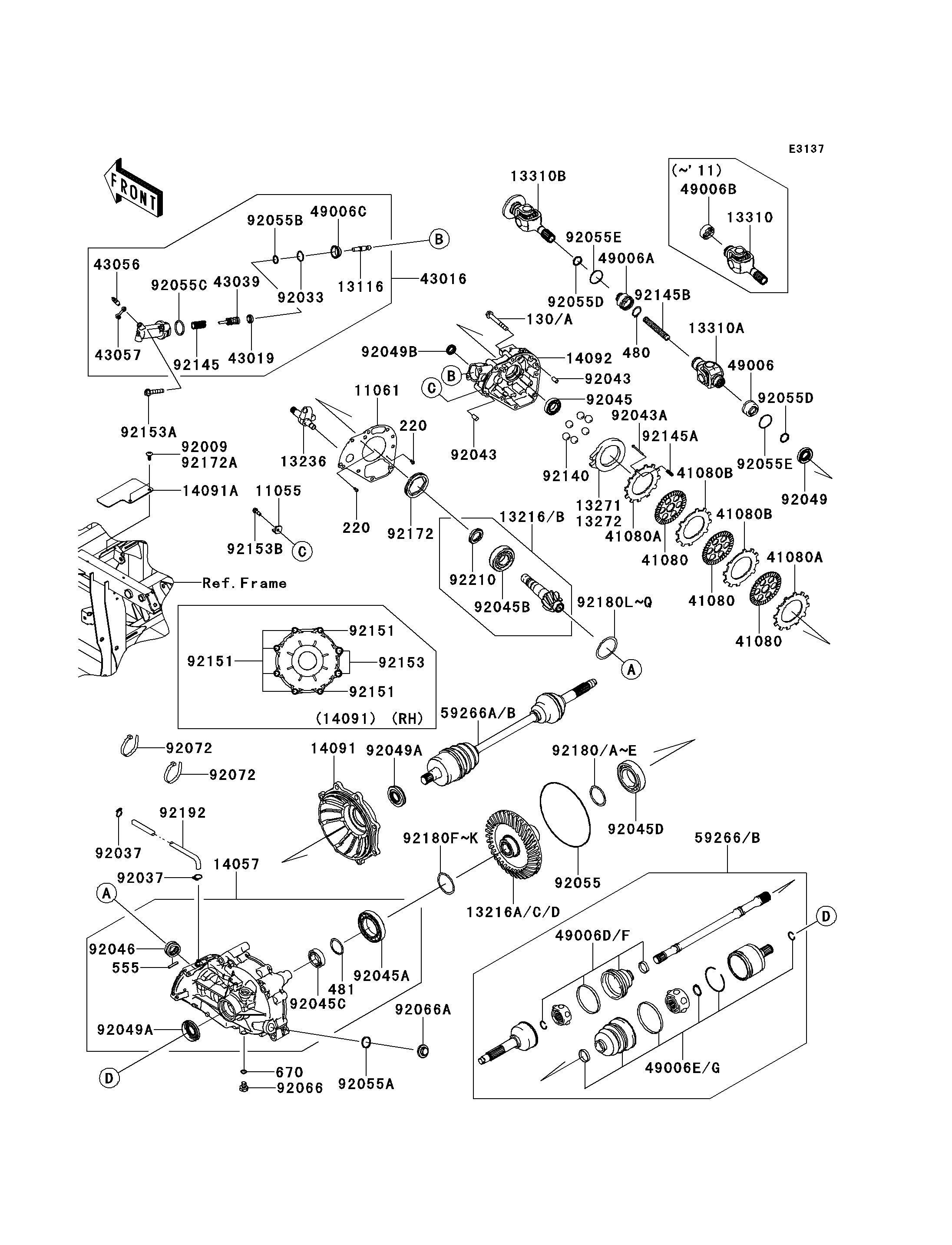

2012 TERYX® 750 FI 4x4 LE - Drive Shaft-Rear

DOWNLOAD PDF
SELECT A NEW PART
11055
11055
11055
11061
11061
11061
13116
13116
13116
13216B
13216B
13216B
13216D
13216D
13216D
13236
13236
13236
13272
13272
13272
13310A
13310A
13310A
13310B
13310B
13310B
14057
14057
14057
14091
14091
14091
14091A
14091A
14091A
14092
14092
14092
41080
41080
41080
41080
41080
41080
41080
41080
41080
41080A
41080A
41080A
41080A
41080A
41080A
41080B
41080B
41080B
41080B
41080B
41080B
43016
43016
43016
43019
43019
43019
43039
43039
43039
43056
43056
43056
43057
43057
43057
49006
49006
49006
49006A
49006A
49006A
49006C
49006C
49006C
49006F
49006F
49006F
49006G
49006G
49006G
59266B
59266B
59266B
59266B
59266B
59266B
92033
92033
92033
92037
92037
92037
92037
92037
92037
92043
92043
92043
92043
92043
92043
92043A
92043A
92043A
92045
92045
92045
92045A
92045A
92045A
92045B
92045B
92045B
92045C
92045C
92045C
92045D
92045D
92045D
92046
92046
92046
92049
92049
92049
92049A
92049A
92049A
92049A
92049A
92049A
92049B
92049B
92049B
92055
92055
92055
92055A
92055A
92055A
92055B
92055B
92055B
92055C
92055C
92055C
92055D
92055D
92055D
92055D
92055D
92055D
92055E
92055E
92055E
92055E
92055E
92055E
92066
92066
92066
92066A
92066A
92066A
92072
92072
92072
92072
92072
92072
92140
92140
92140
92145
92145
92145
92145A
92145A
92145A
92145B
92145B
92145B
92151
92151
92151
92151
92151
92151
92151
92151
92151
92153
92153
92153
92153A
92153A
92153A
92153B
92153B
92153B
92172
92172
92172
92172A
92172A
92172A
92180
92180
92180
92180A
92180A
92180A
92180B
92180B
92180B
92180C
92180C
92180C
92180D
92180D
92180D
130
130
130
220
220
220
220
220
220
480
480
480
481
481
481
555
555
555
670
670
670
92180E
92180E
92180E
92180F
92180F
92180F
92180G
92180G
92180G
92180H
92180H
92180H
92180I
92180I
92180I
92180J
92180J
92180J
92180K
92180K
92180K
92180L
92180L
92180L
92180M
92180M
92180M
92180N
92180N
92180N
92180O
92180O
92180O
92180P
92180P
92180P
92180Q
92180Q
92180Q
92192
92192
92192
92210
92210
92210
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET 11055 11055-0372 1
GASKET,FR COVER 11061 11061-0270 1
ROD-PUSH 13116 13116-0026 1
GEAR-COMP,8T 13216B 13216-0049 1 (JKARFDP1 BB502478 - )
GEAR-COMP,35T 13216D 13216-0862 1
LEVER-COMP 13236 13236-0171 1
PLATE 13272 13272-1083 1
SHAFT-ASSY,GEAR ASSY SIDE 13310A 13310-0019 1
SHAFT-ASSY,ENG SIDE 13310B 13310-0564 1
CASE-COMP-GEAR 14057 14057-0006 1
COVER,RH 14091 14091-0677 1
COVER 14091A 14091-0998 1
COVER,FR 14092 14092-0128 1
DISC,FRICTION 41080 41080-1482 3
DISC,PRESSURE 41080A 41080-1483 2
DISC,SEPARATER 41080B 41080-1484 2
CYLINDER-MASTER 43016 43016-0053 1
CUP-BRAKE 43019 43019-0002 1
PISTON-BRAKE 43039 43039-0006 1
BREATHER-BRAKE 43056 43056-1056 1
CAP-BREATHER 43057 43057-1001 1
BOOT 49006 49006-0008 1
BOOT 49006A 49006-0010 1
BOOT 49006C 49006-0072 1
BOOT 49006F 49006-0553 2
BOOT 49006G 49006-0554 2
JOINT-BALL 59266B 59266-0702 2
RING-SNAP 92033 92033-0055 1
CLAMP,HOSE 92037 92037-1104 2
PIN,8X14 92043 92043-1567 2
PIN,3X35 92043A 92043-1617 2
BEARING-BALL,#6005 92045 92045-0077 1
BEARING-BALL,55X90X18 92045A 92045-0078 1
BEARING-BALL,BX30-1C3 UR3 92045B 92045-0099 1
BEARING-BALL,60/28 92045C 92045-0111 1
BEARING-BALL,6210CM 92045D 92045-1213 1
BEARING-NEEDLE,AH502802 92046 92046-0024 1
SEAL-OIL,HTGY 24X45X9.5 92049 92049-0028 1
SEAL-OIL,28X60X7 92049A 92049-0089 2
SEAL-OIL,TC17X28X6 92049B 92049-1537 1
RING-O,190.2X4.2 92055 92055-0121 1
RING-O 92055A 92055-0122 1
RING-O 92055B 92055-0146 1
RING-O 92055C 92055-0147 1
RING-O,18X24X3 92055D 92055-1633 2
RING-O,30X35X2.5 92055E 92055-1693 2
PLUG,DRAIN,10X12 92066 92066-0085 1
PLUG 92066A 92066-1303 1
BAND,L=250 92072 92072-1237 2
BALL,D/O#12 92140 92140-1064 6
SPRING 92145 92145-0583 1
SPRING,RR BRAKE 92145A 92145-1301 2
SPRING,PROPELLER SHAFT 92145B 92145-1304 1
BOLT,10X35 92151 92151-1909 6
BOLT,12X35 92153 92153-0311 2
BOLT,FLANGED,8X40 92153A 92153-1727 2
BOLT,FLANGED-SMALL,6X16 92153B 92153-1729 1
SCREW,SET,75X10 92172 92172-0371 1
SCREW,TAPPING,6X16 92172A 92172-0739 2
SHIM,50.2X60X1.2 92180 92180-0243 AR
SHIM,50.2X60X1.0 92180A 92180-0244 AR
SHIM,50.2X60X0.8 92180B 92180-0245 AR
SHIM,50.2X60X0.5 92180C 92180-0246 AR
SHIM,50.2X60X0.2 92180D 92180-0247 AR
BOLT-FLANGED,8X60 130 130CA0860 8
SCREW-PAN-CROS,4X8 220 220AA0408 2
CIRCLIP-TYPE-C,25MM 480 480J2500 1
CIRCLIP 481 481J5200 1
PIN-SPRING 555 555A0428 1
O RING,10MM 670 670B2010 1
SHIM,50.2X60X0.15 92180E 92180-0248 AR
SHIM,55X64X0.15 92180F 92180-1417 AR
SHIM,55X64X0.20 92180G 92180-1418 AR
SHIM,55X64X0.50 92180H 92180-1419 AR
SHIM,55X64X0.80 92180I 92180-1420 AR
SHIM,55X64X1.00 92180J 92180-1421 AR
SHIM,55X64X1.20 92180K 92180-1422 AR
SHIM,60X72X0.15 92180L 92180-1423 AR
SHIM,60X72X0.20 92180M 92180-1424 AR
SHIM,60X72X0.50 92180N 92180-1425 AR
SHIM,60X72X0.80 92180O 92180-1426 AR
SHIM,60X72X1.00 92180P 92180-1427 AR
SHIM,60X72X1.20 92180Q 92180-1428 AR
TUBE,7X12X1113 92192 92192-0558 1
NUT,30MM 92210 92210-1294 1
