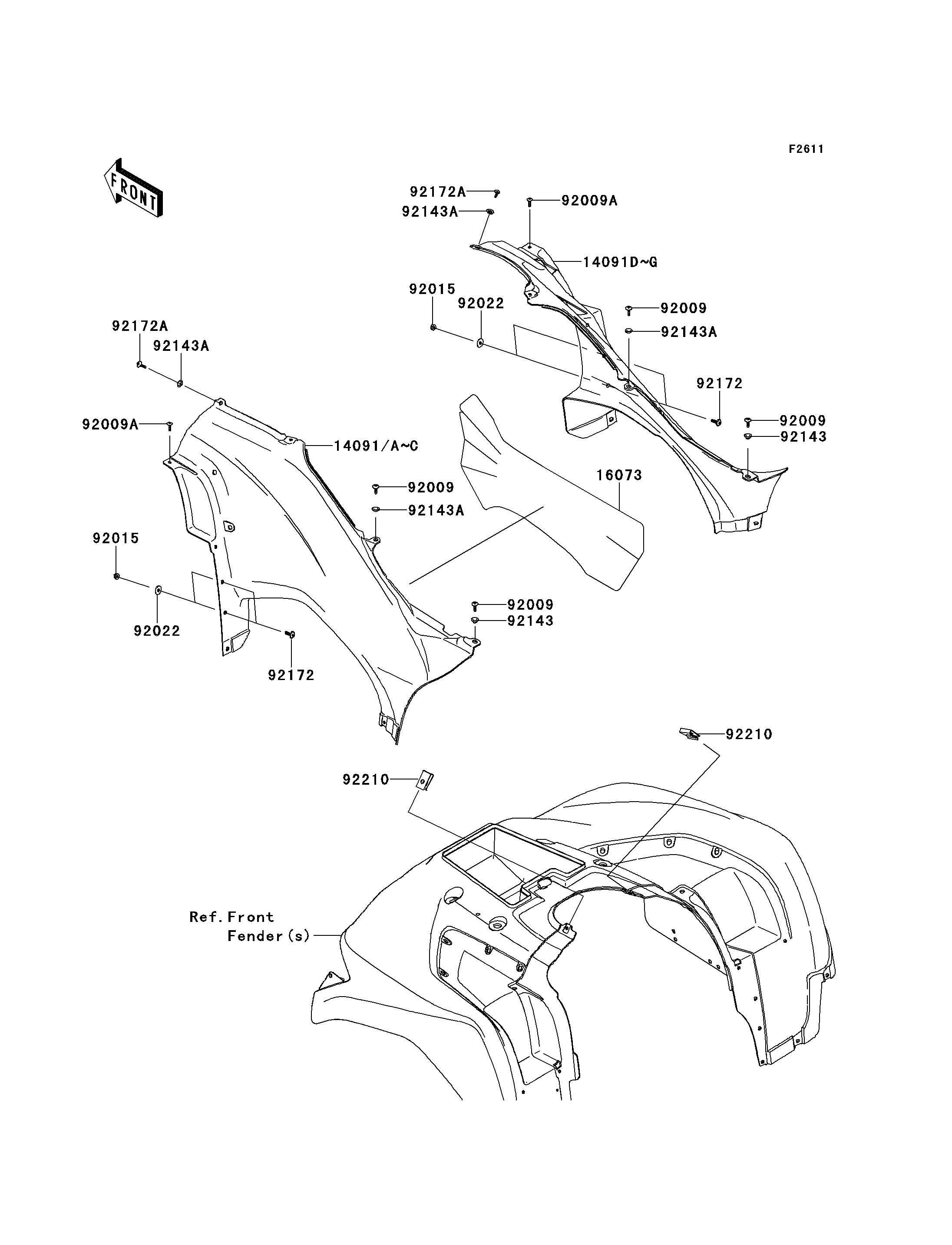

2013 BRUTE FORCE® 750 4x4i EPS - Side Covers

DOWNLOAD PDF
SELECT A NEW PART
14091B
14091C
14091F
14091G
16073
92009
92009
92009
92009
92009A
92009A
92015
92015
92022
92022
92143
92143
92143A
92143A
92143A
92143A
92172
92172
92172A
92172A
92210
92210
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
COVER,SIDE,LH,F.RED 14091B 14091-0137-6L 1
COVER,SIDE,LH,BLACK 14091C 14091-0137-839 1
COVER,SIDE,RH,F.RED 14091F 14091-0138-6L 1
COVER,SIDE,RH,BLACK 14091G 14091-0138-839 1
INSULATOR,SIDE COVER,LH 16073 16073-0723 1
SCREW,6X16 92009 92009-1621 4
SCREW,5X18 92009A 92009-1655 2
NUT,LOCK,FLANGED,6MM 92015 92015-1603 4
WASHER,6.5X20X1.6,BLACK 92022 92022-1346 4
COLLAR 92143 92143-1057 2
COLLAR 92143A 92143-1087 4
SCREW,6X18 92172 92172-0002 4
SCREW,TAPPING,6X20 92172A 92172-0488 2
NUT,LEAF SPRING,6MM 92210 92210-0624 2
