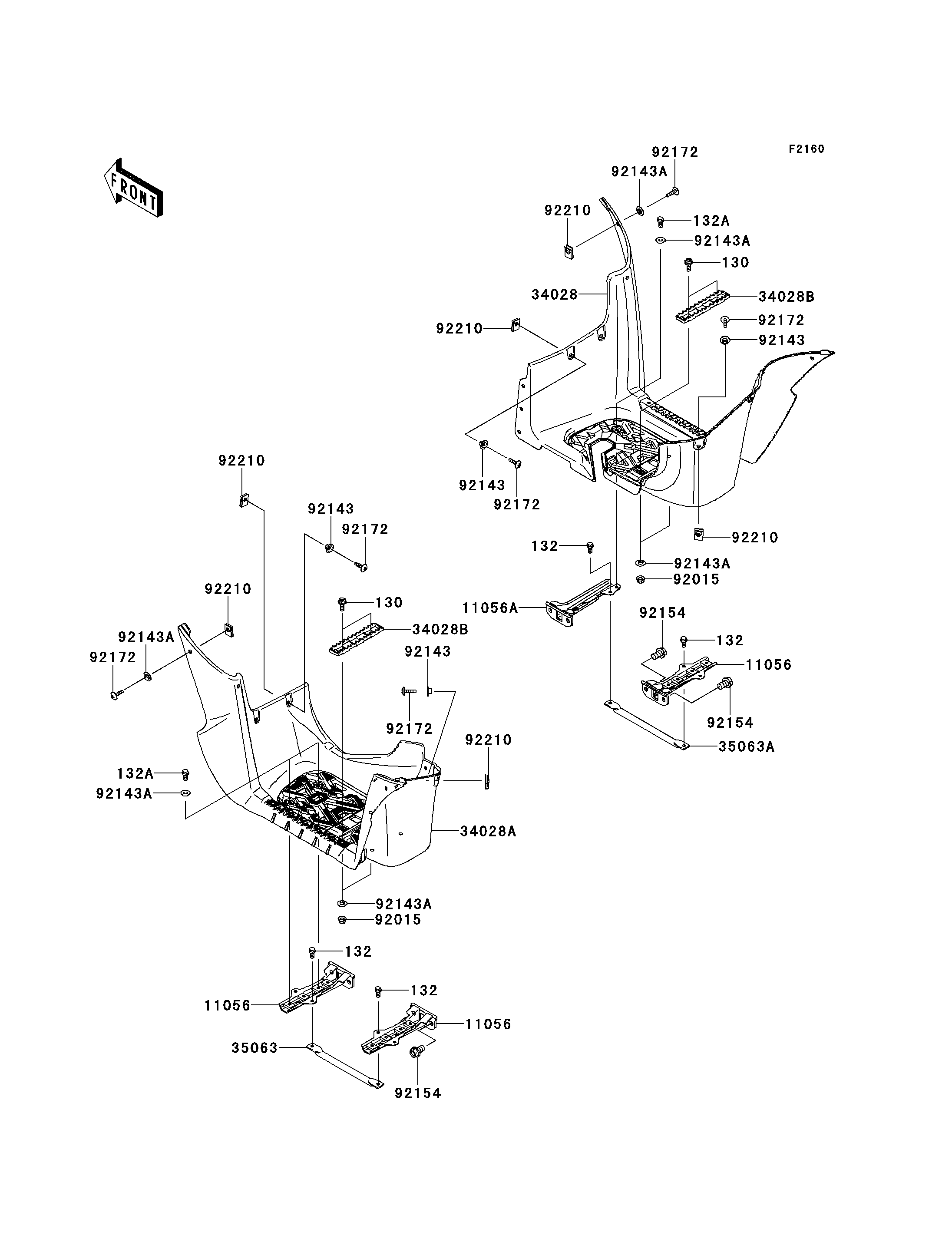

2013 BRUTE FORCE® 750 4x4i EPS - Footrests

DOWNLOAD PDF
SELECT A NEW PART
130
130
132
132
132
132
132A
132A
11056
11056
11056
11056A
34028
34028A
34028B
34028B
35063
35063A
92015
92015
92143
92143
92143
92143
92143A
92143A
92143A
92143A
92143A
92143A
92154
92154
92154
92172
92172
92172
92172
92172
92172
92210
92210
92210
92210
92210
92210
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED,6X16 130 130BB0616 4
BOLT-FLANGED-SMALL,6X12 132 132BA0612 4
BOLT-FLANGED-SMALL,6X12 132A 132BB0612 7
BRACKET,FOOT BOARD 11056 11056-1036 3
BRACKET,FOOT BOARD 11056A 11056-1037 1
STEP,FOOT BOARD,RH,F.BLACK 34028 34028-0055-6Z 1
STEP,FOOT BOARD,LH,F.BLACK 34028A 34028-0146-6Z 1
STEP,FOOT PEG,F.BLACK 34028B 34028-1487-21 2
STAY,STEP,LH 35063 35063-0394 1
STAY,STEP,RH 35063A 35063-0395 1
NUT,LOCK,FLANGED,6MM 92015 92015-1603 4
COLLAR 92143 92143-1057 4
COLLAR 92143A 92143-1087 24
BOLT,FLANGED,10X16 92154 92154-0760 8
SCREW,TAPPING,6X20 92172 92172-0488 17
NUT,LEAF SPRING,6MM 92210 92210-0624 17
