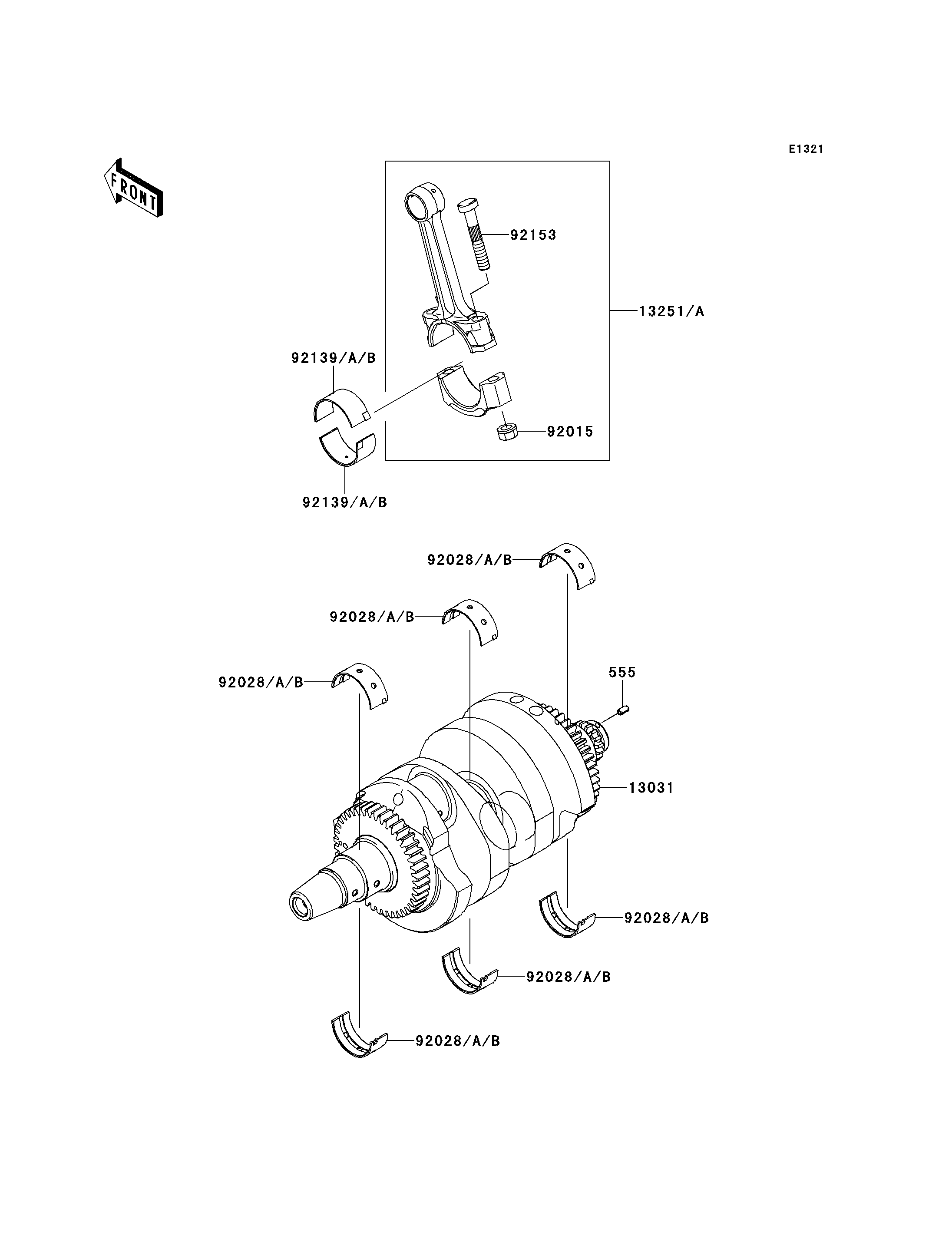

Parts Diagrams |
555
13031
13251
13251A
92015
92028
92028
92028
92028
92028
92028
92028A
92028A
92028A
92028A
92028A
92028A
92028B
92028B
92028B
92028B
92028B
92028B
92139
92139
92139A
92139A
92139B
92139B
92153
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
PIN-SPRING,4X8 | 555 | 555A0408 | 1 | ||
CRANKSHAFT-COMP | 13031 | 13031-0071 | 1 | ||
ROD-ASSY-CONNECTING,J | 13251 | 13251-0010-JJ | 2 | ||
ROD-ASSY-CONNECTING,K | 13251A | 13251-0010-KK | AR | ||
NUT,FLANGED,8MM | 92015 | 92015-1311 | 4 | ||
BUSHING,CRANKSHAFT,BLUE | 92028 | 92028-1903 | 6 | ||
BUSHING,CRANKSHAFT,BLACK | 92028A | 92028-1904 | AR | ||
BUSHING,CRANKSHAFT,BROWN | 92028B | 92028-1905 | AR | ||
BUSHING,CON-ROD,BLUE | 92139 | 92139-0114 | 4 | ||
BUSHING,CON-ROD,BLACK | 92139A | 92139-0115 | AR | ||
BUSHING,CON-ROD,BROWN | 92139B | 92139-0116 | AR | ||
BOLT,CON-ROD,8X49 | 92153 | 92153-0957 | 4 |
PIN-SPRING,4X8 | |
REF # | 555 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
CRANKSHAFT-COMP | |
REF # | 13031 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
ROD-ASSY-CONNECTING,J | |
REF # | 13251 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
ROD-ASSY-CONNECTING,K | |
REF # | 13251A |
---|---|
PART NUMBER | |
QUANTITY | AR |
DESTINATION | |
REMARKS |
NUT,FLANGED,8MM | |
REF # | 92015 |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
BUSHING,CRANKSHAFT,BLUE | |
REF # | 92028 |
---|---|
PART NUMBER | |
QUANTITY | 6 |
DESTINATION | |
REMARKS |
BUSHING,CRANKSHAFT,BLACK | |
REF # | 92028A |
---|---|
PART NUMBER | |
QUANTITY | AR |
DESTINATION | |
REMARKS |
BUSHING,CRANKSHAFT,BROWN | |
REF # | 92028B |
---|---|
PART NUMBER | |
QUANTITY | AR |
DESTINATION | |
REMARKS |
BUSHING,CON-ROD,BLUE | |
REF # | 92139 |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
BUSHING,CON-ROD,BLACK | |
REF # | 92139A |
---|---|
PART NUMBER | |
QUANTITY | AR |
DESTINATION | |
REMARKS |
BUSHING,CON-ROD,BROWN | |
REF # | 92139B |
---|---|
PART NUMBER | |
QUANTITY | AR |
DESTINATION | |
REMARKS |
BOLT,CON-ROD,8X49 | |
REF # | 92153 |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
