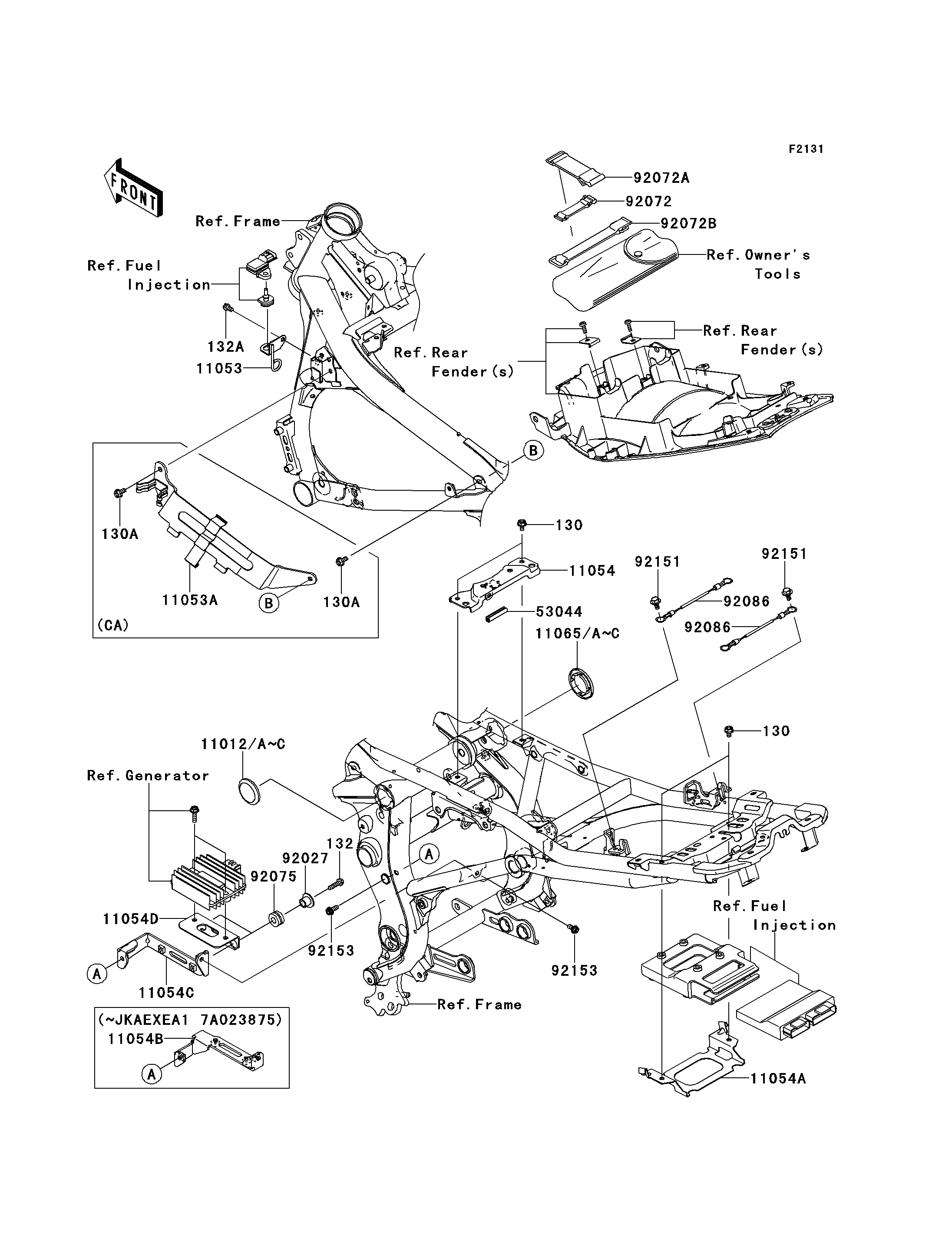

2006 Ninja® 650R - Frame Fittings

DOWNLOAD PDF
SELECT A NEW PART
130
130
130
130
11012B
11012B
11053
11053
11054
11054
11054A
11054A
11054B
11054B
11065B
11065B
53044
53044
92072
92072
92072A
92072A
92072B
92072B
92086
92086
92086
92086
92151
92151
92151
92151
92153
92153
92153
92153
132A
132A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED,6X10 130 130L0610 4
CAP,CROSS PIPE,P.RED 11012B 11012-1717-10N 1
BRACKET,BOOST SENSOR 11053 11053-1931 1
BRACKET,FUEL TANK 11054 11054-0248 1
BRACKET,ECU 11054A 11054-0347 1
BRACKET,REGULATOR 11054B 11054-0523 1 ( - JKAEXEA1 7A023875)
CAP,FRAME,P.RED 11065B 11065-0125-10N 1
TRIM,L=40 53044 53044-1174 1
BAND 92072 92072-1085 1
BAND,TOOL 92072A 92072-1176 1
BAND,L=150 92072B 92072-1203 1
WIRE,L=150 92086 92086-1075 2
BOLT,FLANGED,6X13 92151 92151-1703 2
BOLT,SOCKET,6X16 92153 92153-1517 2
BOLT-FLANGED-SMALL,6X10 132A 132L0610 1
BOLT-FLANGED,6X12 130A 130L0612 2 CA
CAP,CROSS PIPE,M.BRONZE 11012A 11012-1717-10M 1 CN
BRACKET,CANISTER 11053A 11053-1964 1 CA
CAP,FRAME,M.BRONZE 11065A 11065-0125-10M 1 CN
