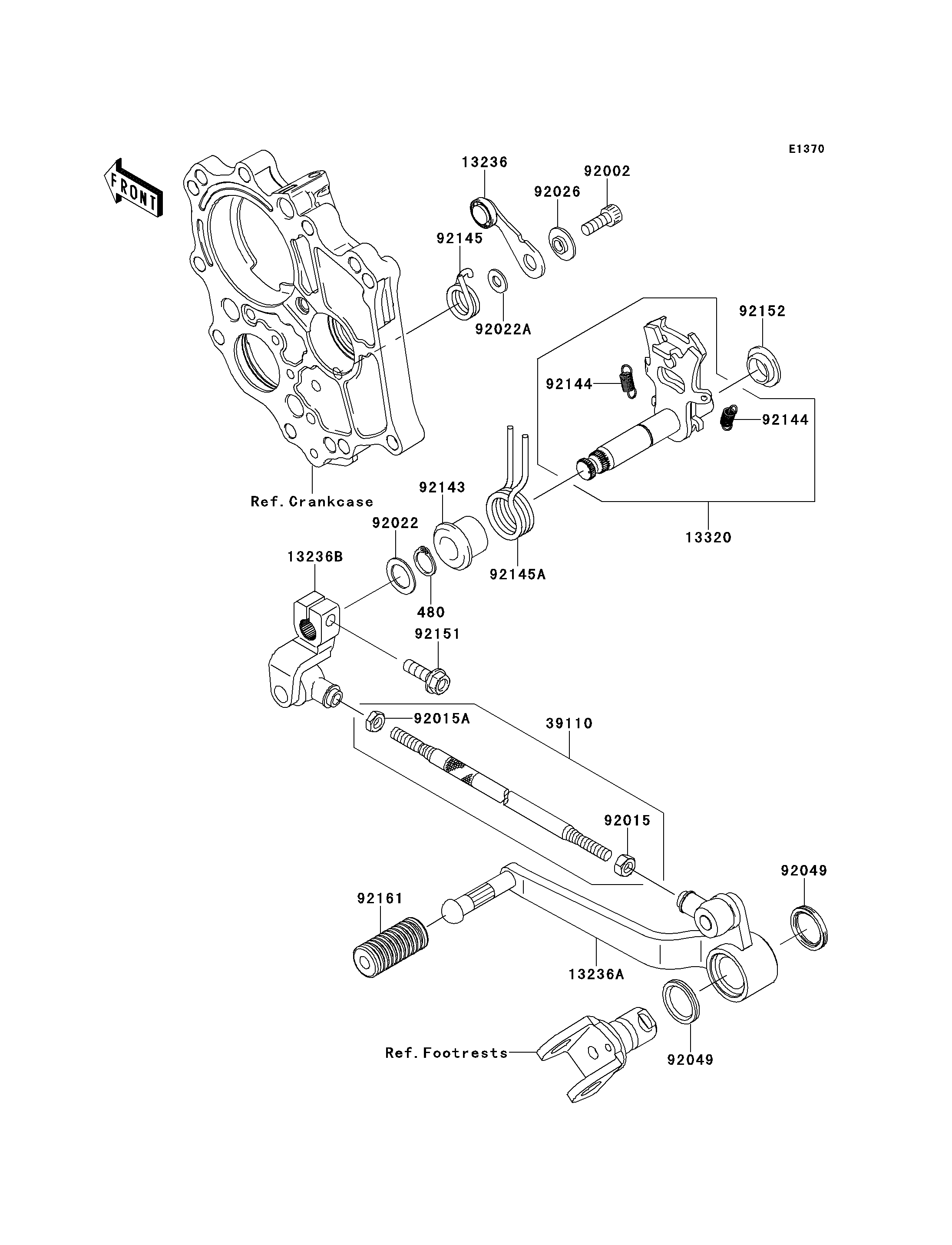

2008 Versys™ - Gear Change Mechanism

DOWNLOAD PDF
SELECT A NEW PART
480
13236
13236A
13236B
13320
39110
92002
92015
92015A
92022
92022A
92026
92049
92049
92143
92144
92144
92145
92145A
92151
92152
92161
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CIRCLIP-TYPE-C,13MM 480 480J1300 1
LEVER-COMP,POSITION 13236 13236-0094 1
LEVER-COMP,PEDAL 13236A 13236-0136 1
LEVER-COMP 13236B 13236-0137 1
LEVER-ASSY 13320 13320-0010 1
ROD-ASSY-TIE 39110 39110-1124 1
BOLT,SOCKET,6X16 92002 92002-1778 1
NUT,6MM 92015 92015-1443 1
NUT,LEFT HANDED,6MM 92015A 92015-1444 1
WASHER,13.3X20X1 92022 92022-1496 1
WASHER,6X12.8X1.2 92022A 92022-1827 1
SPACER 92026 92026-1217 1
SEAL-OIL 92049 92049-0103 2
COLLAR,RETURN SPRING 92143 92143-1498 1
SPRING,CHANGE LEVER 92144 92144-1975 2
SPRING,POSITION 92145 92145-0304 1
SPRING,RETURN 92145A 92145-0326 1
BOLT,FLANGED,6X20 92151 92151-1226 1
COLLAR 92152 92152-1075 1
DAMPER,CHANGE PEDAL 92161 92161-1300 1
