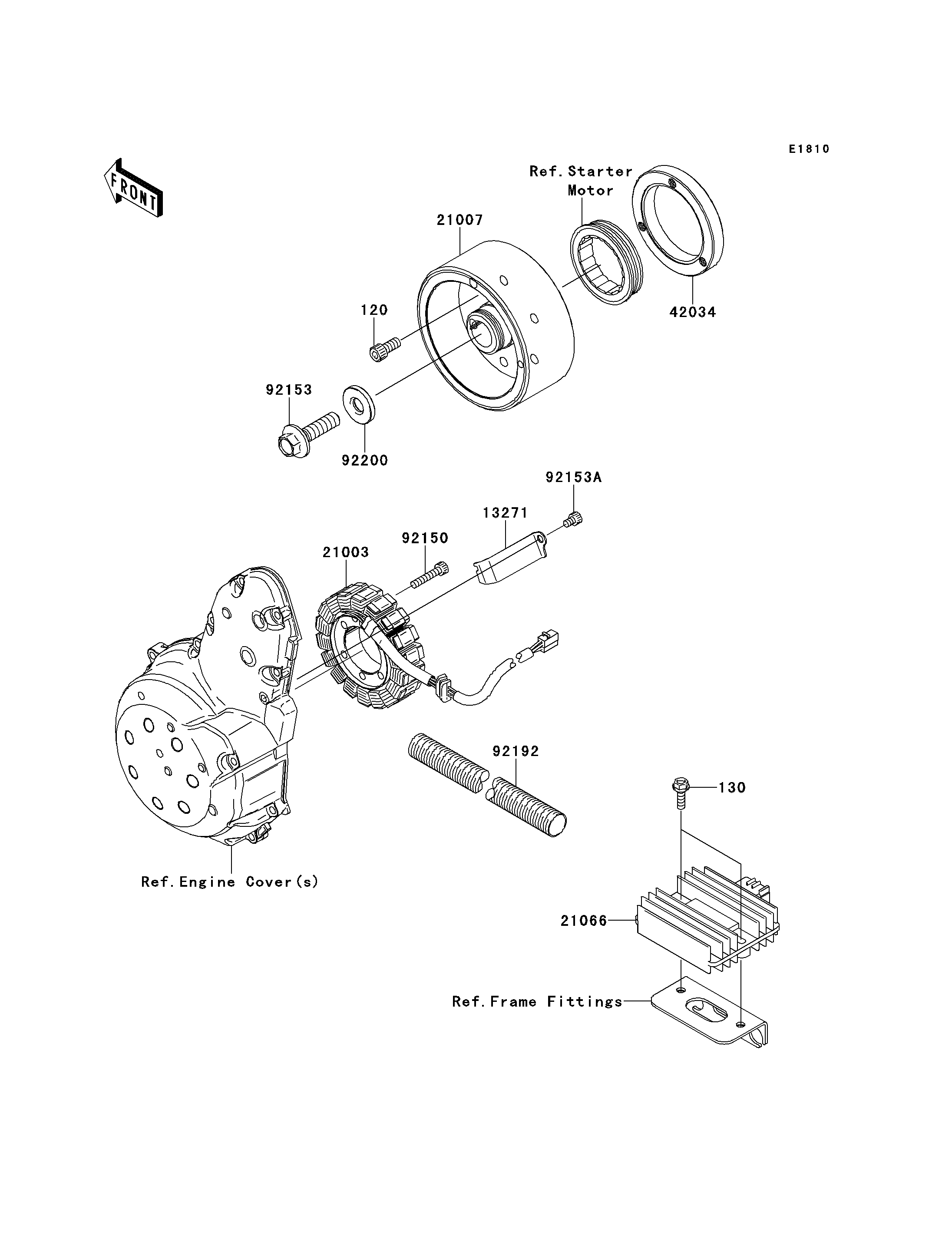

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-SOCKET,8X18 120 120CA0818 3
BOLT-FLANGED,6X20 130 130BB0620 2
PLATE 13271 13271-0952 1
STATOR 21003 21003-0042 1
ROTOR 21007 21007-0075 1
REGULATOR-VOLTAGE 21066 21066-1127 1
COUPLING 42034 42034-1143 1
BOLT,SOCKET,6X30 92150 92150-1433 3
BOLT,FLANGED,12X45 92153 92153-0951 1
BOLT,SOCKET,6X8 92153A 92153-1414 1
TUBE,CORRUGATED,L=175 92192 92192-0315 1
WASHER,12X33X5 92200 92200-0220 1
