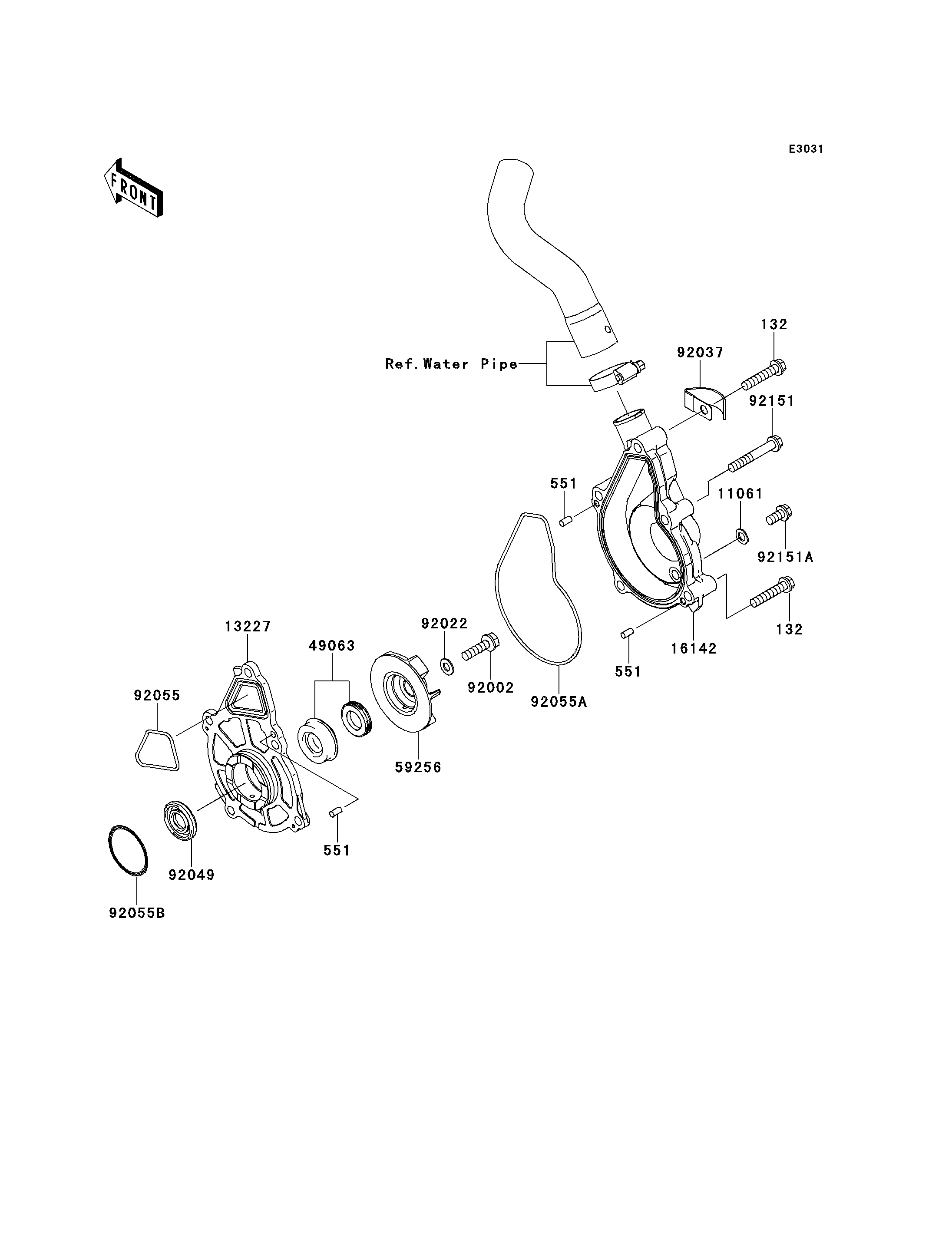

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED-SMALL,6X30 132 132BC0630 2
PIN-DOWEL,4X8 551 551A0408 3
GASKET 11061 11061-0107 1
HOUSING 13227 13227-0012 1
COVER-PUMP 16142 16142-0046 1
SEAL-MECHANICAL,WATER 49063 49063-1055 1
IMPELLER 59256 59256-0007 1
BOLT,6X22 92002 92002-1154 1
WASHER,6.1X12X1 92022 92022-077 1
CLAMP 92037 92037-1680 1
SEAL-OIL,12X28.55X5 92049 92049-0115 1
RING-O,CASE-HOUSING 92055 92055-0082 1
RING-O,HOUSING-PUMP COVER 92055A 92055-0083 1
RING-O,33.2MM 92055B 92055-1155 1
BOLT,6X40 92151 92151-1131 3
BOLT,6X12 92151A 92151-1133 1
