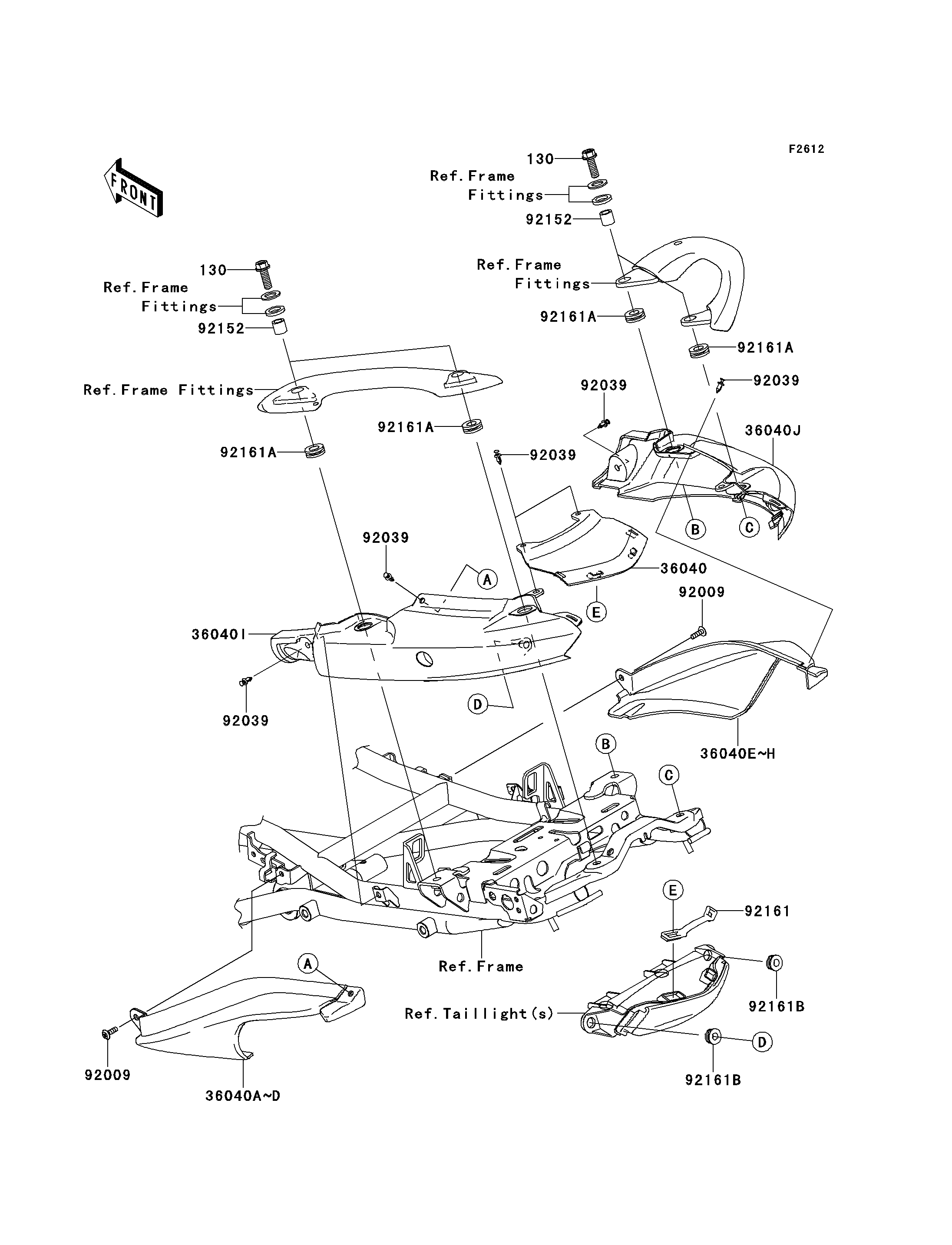

Parts Diagrams |
130
130
36040
36040C
36040G
36040I
36040J
92009
92009
92039
92039
92039
92039
92039
92152
92152
92161
92161A
92161A
92161A
92161A
92161B
92161B
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BOLT-FLANGED,8X25 | 130 | 130CB0825 | 4 | ||
| COVER-TAIL,CNT,F.BLACK | 36040 | 36040-0052-6Z | 1 | ||
| COVER-TAIL,FR,LH,P.RED | 36040C | 36040-0064-234 | 1 | ||
| COVER-TAIL,FR,RH,P.RED | 36040G | 36040-0065-234 | 1 | ||
| COVER-TAIL,RR,LH,F.BLACK | 36040I | 36040-0069-6Z | 1 | ||
| COVER-TAIL,RR,RH,F.BLACK | 36040J | 36040-0070-6Z | 1 | ||
| SCREW,5X16 | 92009 | 92009-1909 | 2 | ||
| RIVET | 92039 | 92039-0023 | 6 | ||
| COLLAR,9.2X13.8X12.5 | 92152 | 92152-0546 | 4 | ||
| DAMPER,TAIL LAMP | 92161 | 92161-0191 | 1 | ||
| DAMPER | 92161A | 92161-0279 | 4 | ||
| DAMPER | 92161B | 92161-0317 | 2 | ||
| COVER-TAIL,FR,LH,C.P.BLUE | 36040D | 36040-0064-723 | 1 | CN | |
| COVER-TAIL,FR,RH,C.P.BLUE | 36040H | 36040-0065-723 | 1 | CN |
| BOLT-FLANGED,8X25 | |
| REF # | 130 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| COVER-TAIL,CNT,F.BLACK | |
| REF # | 36040 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COVER-TAIL,FR,LH,P.RED | |
| REF # | 36040C |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COVER-TAIL,FR,RH,P.RED | |
| REF # | 36040G |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COVER-TAIL,RR,LH,F.BLACK | |
| REF # | 36040I |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COVER-TAIL,RR,RH,F.BLACK | |
| REF # | 36040J |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SCREW,5X16 | |
| REF # | 92009 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| RIVET | |
| REF # | 92039 |
|---|---|
| PART NUMBER | |
| QUANTITY | 6 |
| DESTINATION | |
| REMARKS | |
| COLLAR,9.2X13.8X12.5 | |
| REF # | 92152 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| DAMPER,TAIL LAMP | |
| REF # | 92161 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| DAMPER | |
| REF # | 92161A |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| DAMPER | |
| REF # | 92161B |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| COVER-TAIL,FR,LH,C.P.BLUE | |
| REF # | 36040D |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CN |
| REMARKS | |
| COVER-TAIL,FR,RH,C.P.BLUE | |
| REF # | 36040H |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CN |
| REMARKS | |
