550
550
32054
32054A
34028
34028A
92022
92022
92043
92043
92145
92145A
92153
92153
92153A
92153A

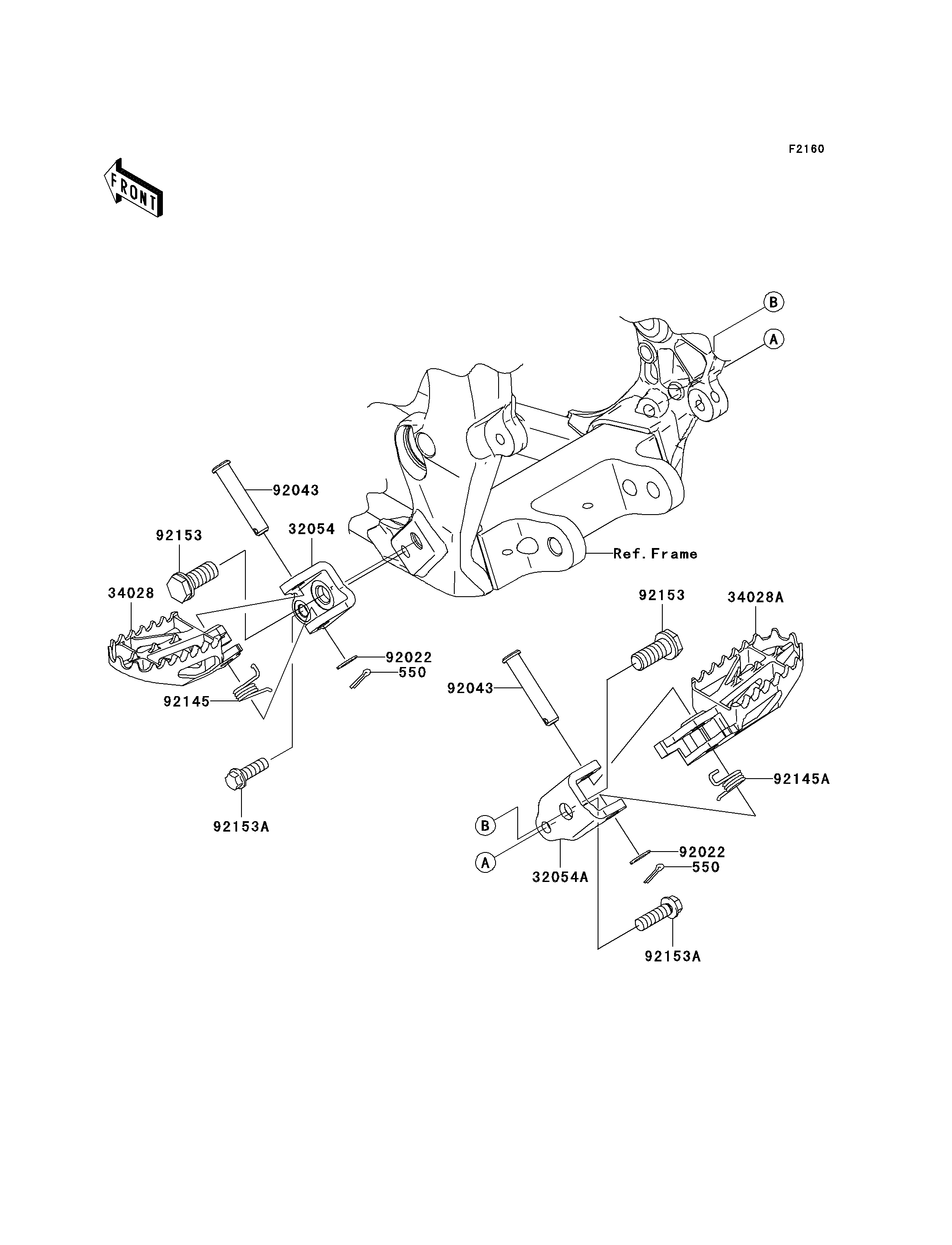

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
PIN-COTTER,3.0X20 550 550S3020 2
BRACKET-STEP,LH 32054 32054-0020 1
BRACKET-STEP,RH 32054A 32054-0021 1
STEP,LH 34028 34028-0014 1
STEP,RH 34028A 34028-0015 1
WASHER,10.2X16X1 92022 92022-1829 2
PIN,10X42.5 92043 92043-0074 2
SPRING,STEP,LH 92145 92145-0198 1
SPRING,STEP,RH 92145A 92145-0199 1
BOLT,FLANGED,12X23 92153 92153-0653 2
BOLT,FLANGED,8X25 92153A 92153-0838 2
