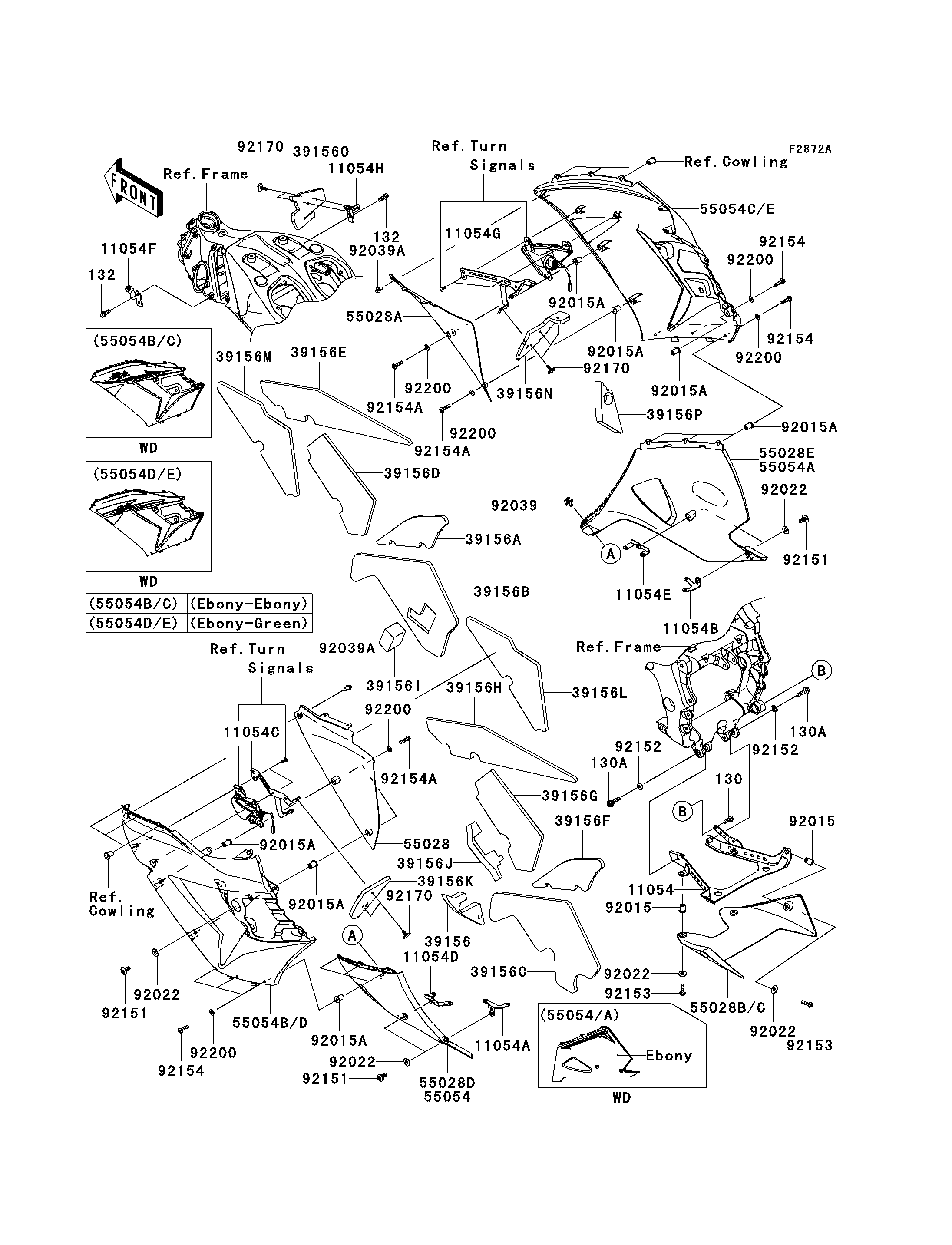

2011 NINJA® ZX™-14 - Cowling Lowers(CBF)

DOWNLOAD PDF
SELECT A NEW PART
11054
11054
11054A
11054A
11054B
11054B
11054C
11054C
11054D
11054D
11054E
11054E
11054F
11054F
11054G
11054G
11054H
11054H
39156
39156
39156A
39156A
39156B
39156B
39156C
39156C
39156D
39156D
39156E
39156E
39156F
39156F
39156G
39156G
39156H
39156H
39156I
39156I
39156J
39156J
39156K
39156K
39156L
39156L
39156M
39156M
39156N
39156N
39156O
39156O
39156P
39156P
55028
55028
55028A
55028A
55028B
55028B
55028C
55028C
55028D
55028D
55028E
55028E
130
130
130A
130A
130A
130A
132
132
132
132
55054
55054
55054A
55054A
55054B
55054B
55054C
55054C
55054D
55054D
55054E
55054E
92015
92015
92015
92015
92015A
92015A
92015A
92015A
92015A
92015A
92015A
92015A
92015A
92015A
92015A
92015A
92015A
92015A
92022
92022
92022
92022
92022
92022
92022
92022
92022
92022
92039
92039
92039A
92039A
92039A
92039A
92151
92151
92151
92151
92151
92151
92152
92152
92152
92152
92153
92153
92153
92153
92154
92154
92154
92154
92154
92154
92154A
92154A
92154A
92154A
92154A
92154A
92170
92170
92170
92170
92170
92170
92200
92200
92200
92200
92200
92200
92200
92200
92200
92200
92200
92200
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET,LWR COWLING 11054 11054-0042 1
BRACKET,CNT COWLING,RR,LH 11054A 11054-0562 1
BRACKET,CNT COWLING,RR,RH 11054B 11054-0563 1
BRACKET,HOT WIND COVER,LH 11054C 11054-0677 1
BRACKET,CNT COWLING,FR,LH 11054D 11054-0722 1
BRACKET,CNT COWLING,FR,RH 11054E 11054-0723 1
BRACKET,CNT COWLING,HEAD PIPE 11054F 11054-0770 1
BRACKET,HOT WIND COVER,RH 11054G 11054-0842 1
BRACKET,CNT COWLING,HEAD PIPE 11054H 11054-0843 1
PAD,CNT COWLING,LH 39156 39156-0151 1
PAD,CNT COWLING,RH,LWR 39156A 39156-0152 1
PAD,LWR COWLING,RH 39156B 39156-0153 1
PAD,LWR COWLING,LH 39156C 39156-0154 1
PAD,CNT COWLING,RH,FR 39156D 39156-0162 1
PAD,CNT COWLING,RH,UPP 39156E 39156-0163 1
PAD,CNT COWLING,LH,LWR 39156F 39156-0164 1
PAD,CNT COWLING,LH,FR 39156G 39156-0165 1
PAD,CNT COWLING,LH,UPP 39156H 39156-0166 1
PAD,LWR COWLING,RH 39156I 39156-0167 1
PAD,CNT COWLING,LH 39156J 39156-0171 1
PAD,HOT WIND COVER 39156K 39156-0175 1
PAD,FR COWLING,LH 39156L 39156-0177 1
PAD,FR COWLING,RH 39156M 39156-0178 1
PAD,HOT WIND COVER 39156N 39156-0182 1
PAD 39156O 39156-0183 1
PAD,CNT COWLING,RH 39156P 39156-0196 1
COWLING,FR,LH 55028 55028-0059 1
COWLING,FR,RH 55028A 55028-0060 1
COWLING,LWR,RR,EBONY 55028B 55028-0063-H8 1
COWLING,LWR,RR,C.L.GREEN 55028C 55028-0063-17P 1
COWLING,LWR,LH,C.L.GREEN 55028D 55028-0084-17P 1
COWLING,LWR,RH,C.L.GREEN 55028E 55028-0085-17P 1
BOLT-FLANGED,6X14 130 130BA0614 1
BOLT-FLANGED,6X22 130A 130BA0622 2
BOLT-FLANGED-SMALL,6X16 132 132BA0616 2
COWLING,LWR,LH,EBONY 55054 55054-5103-H8 1
COWLING,LWR,RH,EBONY 55054A 55054-5104-H8 1
COWLING,CNT,LH,EBONY 55054B 55054-5105-H8 1
COWLING,CNT,RH,EBONY 55054C 55054-5106-H8 1
COWLING,CNT,LH,EBONY 55054D 55054-5107-H8 1
COWLING,CNT,RH,EBONY 55054E 55054-5108-H8 1
NUT 92015 92015-1700 4
NUT,WELL,5MM 92015A 92015-1757 11
WASHER,6.5X16X1 92022 92022-1143 9
RIVET,HOLE 8MM 92039 92039-0014 1
RIVET 92039A 92039-0023 2
BOLT,SOCKET,6X14 92151 92151-1654 5
COLLAR 92152 92152-0378 2
BOLT,SOCKET,6X23 92153 92153-1267 4
BOLT,SOCKET,5X16 92154 92154-0209 7
BOLT,SOCKET,5X20 92154A 92154-0210 4
CLAMP 92170 92170-1442 7
WASHER,NYLONE,5.3X11.5X0.5 92200 92200-0006 11
