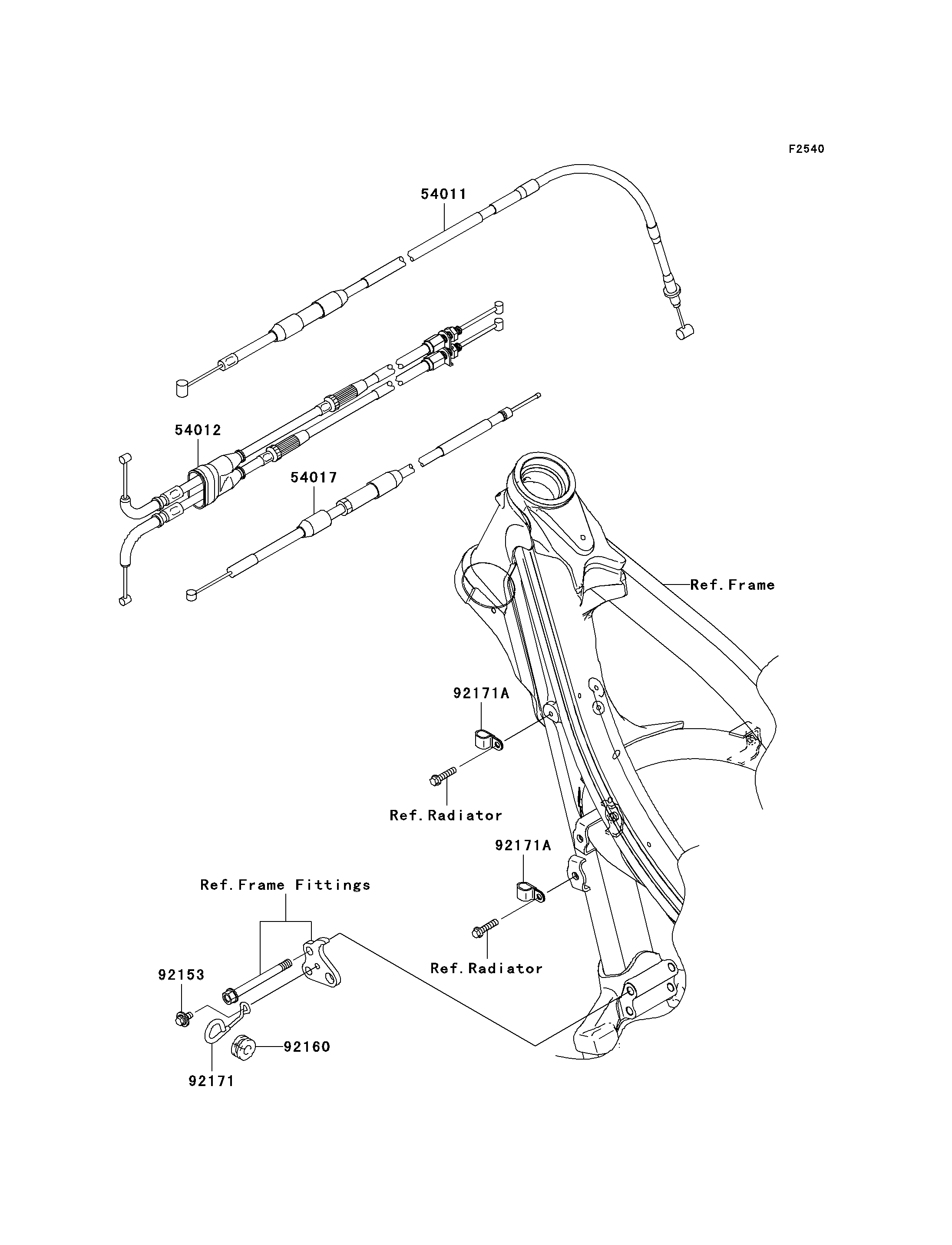

54011
54012
54017
92153
92160
92171
92171A
92171A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CABLE-CLUTCH 54011 54011-0044 1
CABLE-THROTTLE 54012 54012-0156 1
CABLE-STARTER 54017 54017-0014 1
BOLT,6X12 92153 92153-0503 1
DAMPER 92160 92160-1913 1
CLAMP,CABLE 92171 92171-0253 1
CLAMP 92171A 92171-0614 2
