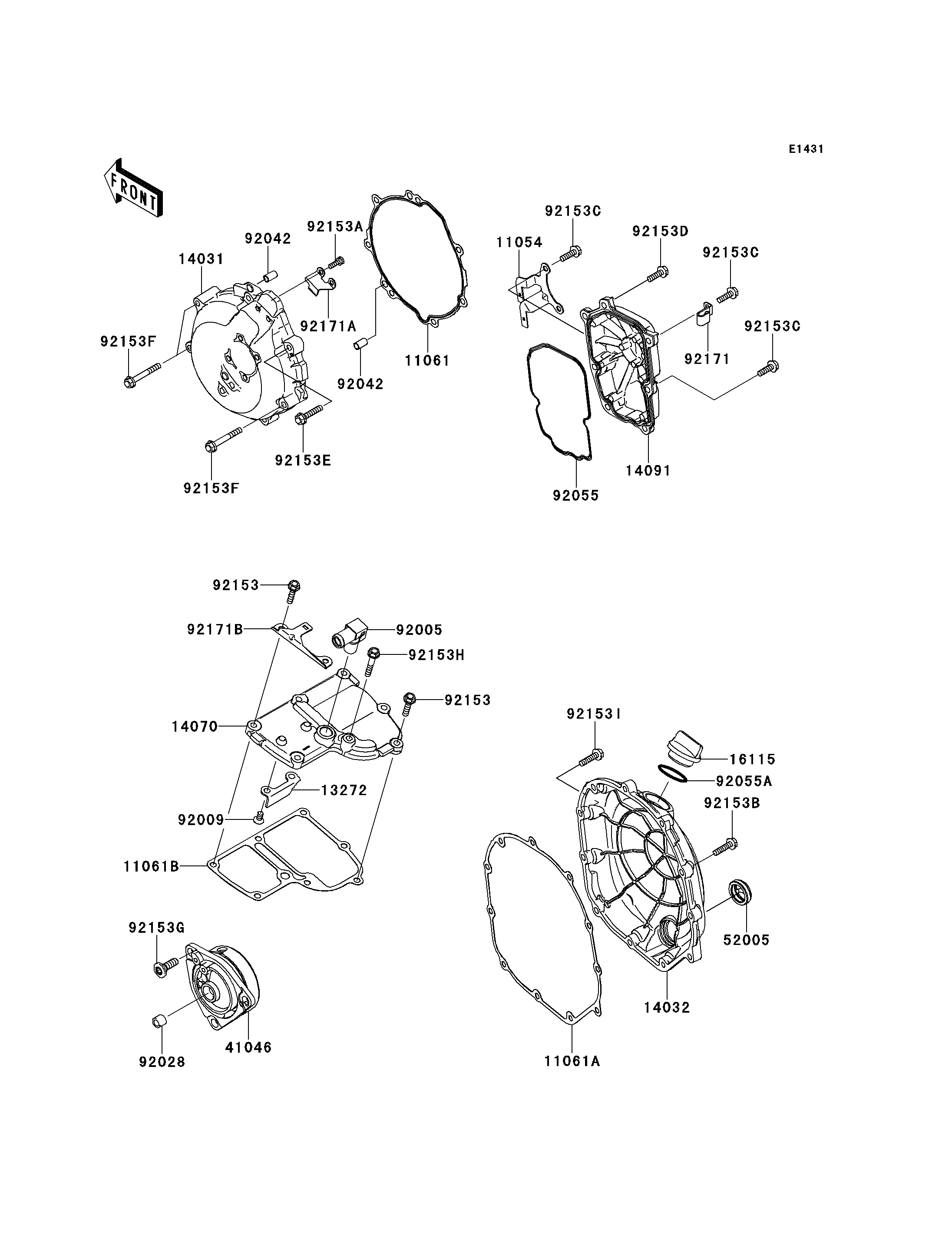

2010 Concours™ 14 - Engine Cover(s)

DOWNLOAD PDF
SELECT A NEW PART
11054
11061
11061A
11061B
13272
14031
14032
14070
14091
16115
41046
52005
92005
92009
92028
92042
92042
92055
92055A
92153
92153
92153A
92153B
92153C
92153C
92153C
92153D
92153E
92153F
92153F
92153G
92153H
92153I
92171
92171A
92171B
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET 11054 11054-1364 1
GASKET,GENERATOR COVER 11061 11061-0197 1
GASKET,CLUTCH COVER 11061A 11061-0198 1
GASKET,BREATHER BODY 11061B 11061-0200 1
PLATE 13272 13272-0155 1
COVER-GENERATOR 14031 14031-0083 1
COVER-CLUTCH 14032 14032-0110 1
BODY-BREATHER 14070 14070-0004 1
COVER,PULSER 14091 14091-0896 1
CAP-OIL FILLER 16115 16115-1009 1
HOUSING-BEARING 41046 41046-0023 1
GAUGE 52005 52005-0024 1
FITTING 92005 92005-0044 1
SCREW,6X12 92009 92009-1880 2
BUSHING,8X12X10 92028 92028-1750 1
PIN,DOWEL,6.3X8X14 92042 92042-007 2
RING-O,PULSER COVER 92055 92055-0086 1
RING-O,31.7X2.4 92055A 92055-049 1
BOLT,6X25 92153 92153-1071 6
BOLT,SOCKET,5X14 92153A 92153-1286 2
BOLT-FLANGED,6X25 92153B 92153-1569 10
BOLT-FLANGED,6X20 92153C 92153-1572 6
BOLT-FLANGED,6X20 92153D 92153-1573 1
BOLT-FLANGED,6X30 92153E 92153-1574 4
BOLT-FLANGED,6X45 92153F 92153-1575 3
BOLT,SOCKET,8X25 92153G 92153-1578 3
BOLT-FLANGED,6X35 92153H 92153-1579 1
BOLT,FLANGED,6X25 92153I 92153-1719 1
CLAMP 92171 92171-0761 1
CLAMP 92171A 92171-0768 1
CLAMP 92171B 92171-0769 1
