Parts Diagrams |
235
235
11054
23005
23008
39156
39156A
39156B
55022
92069
92144
92151
92152
92152A
92152A
92161
92161A
92170
92172
92172A

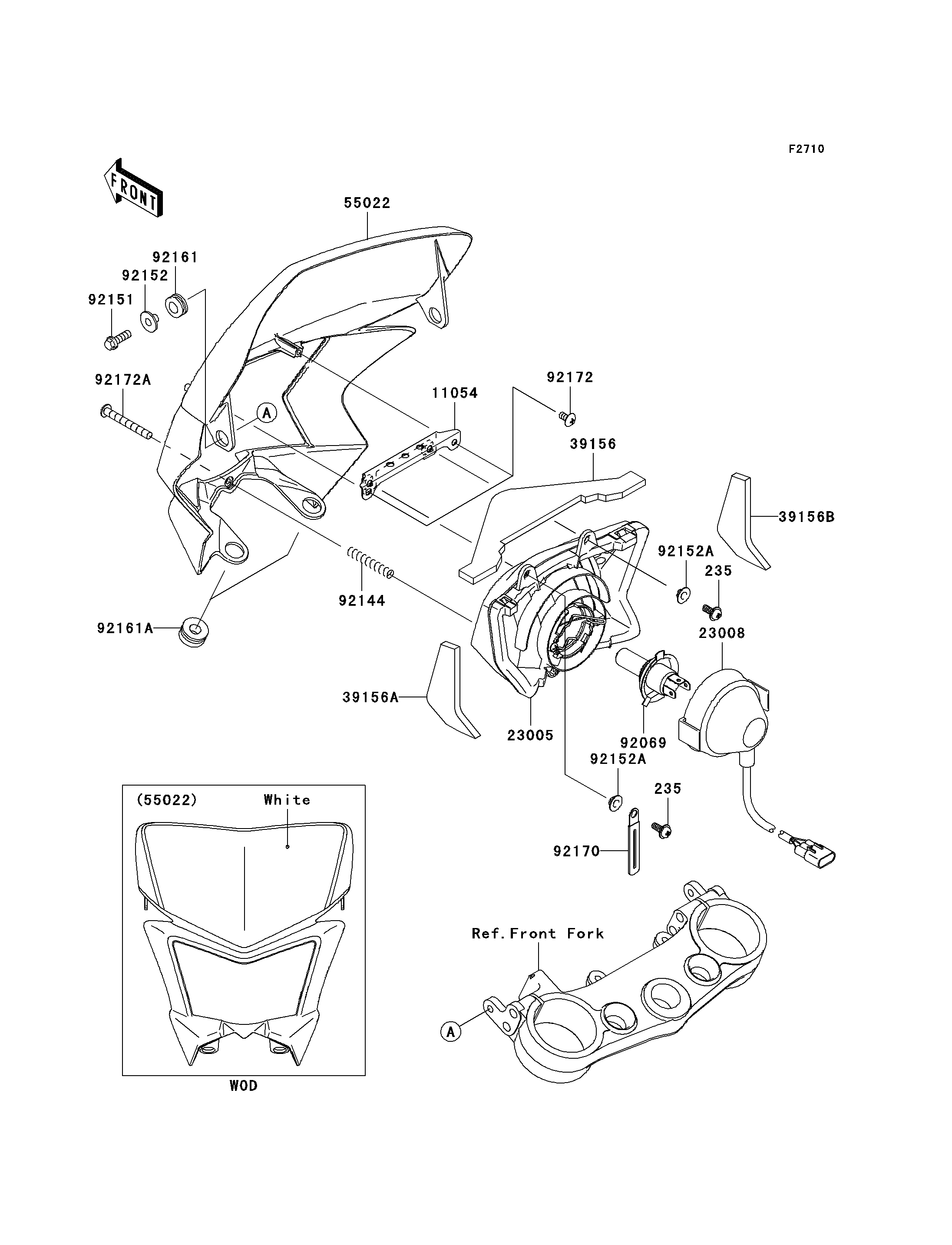

ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
SCREW-PAN-WP-CROS,5X12 | 235 | 235AA0512 | 2 | ||
BRACKET,HEAD LAMP | 11054 | 11054-1069 | 1 | ||
BODY-COMP-HEAD LAMP | 23005 | 23005-0020 | 1 | ||
SOCKET-ASSY,HEAD LAMP | 23008 | 23008-0064 | 1 | ||
PAD,HEAD LAMP,TOP | 39156 | 39156-0267 | 1 | ||
PAD,HEAD LAMP,LH | 39156A | 39156-0268 | 1 | ||
PAD,HEAD LAMP,RH | 39156B | 39156-0269 | 1 | ||
COVER-HEAD LAMP,B.WHITE | 55022 | 55022-0038-266 | 1 | ||
BULB,12V 35/35W | 92069 | 92069-1120 | 1 | ||
SPRING | 92144 | 92144-2266 | 1 | ||
BOLT,6X18 | 92151 | 92151-1311 | 2 | ||
COLLAR | 92152 | 92152-0295 | 2 | ||
COLLAR | 92152A | 92152-0573 | 2 | ||
DAMPER | 92161 | 92161-0266 | 2 | ||
DAMPER | 92161A | 92161-0537 | 2 | ||
CLAMP | 92170 | 92170-1514 | 1 | ||
SCREW,TAPPING,5X10 | 92172 | 92172-0262 | 2 | ||
SCREW,TAPPING,4X40 | 92172A | 92172-0311 | 1 |
SCREW-PAN-WP-CROS,5X12 | |
REF # | 235 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
BRACKET,HEAD LAMP | |
REF # | 11054 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BODY-COMP-HEAD LAMP | |
REF # | 23005 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SOCKET-ASSY,HEAD LAMP | |
REF # | 23008 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
PAD,HEAD LAMP,TOP | |
REF # | 39156 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
PAD,HEAD LAMP,LH | |
REF # | 39156A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
PAD,HEAD LAMP,RH | |
REF # | 39156B |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
COVER-HEAD LAMP,B.WHITE | |
REF # | 55022 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BULB,12V 35/35W | |
REF # | 92069 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SPRING | |
REF # | 92144 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BOLT,6X18 | |
REF # | 92151 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
COLLAR | |
REF # | 92152 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
COLLAR | |
REF # | 92152A |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
DAMPER | |
REF # | 92161 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
DAMPER | |
REF # | 92161A |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
CLAMP | |
REF # | 92170 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SCREW,TAPPING,5X10 | |
REF # | 92172 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
SCREW,TAPPING,4X40 | |
REF # | 92172A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
