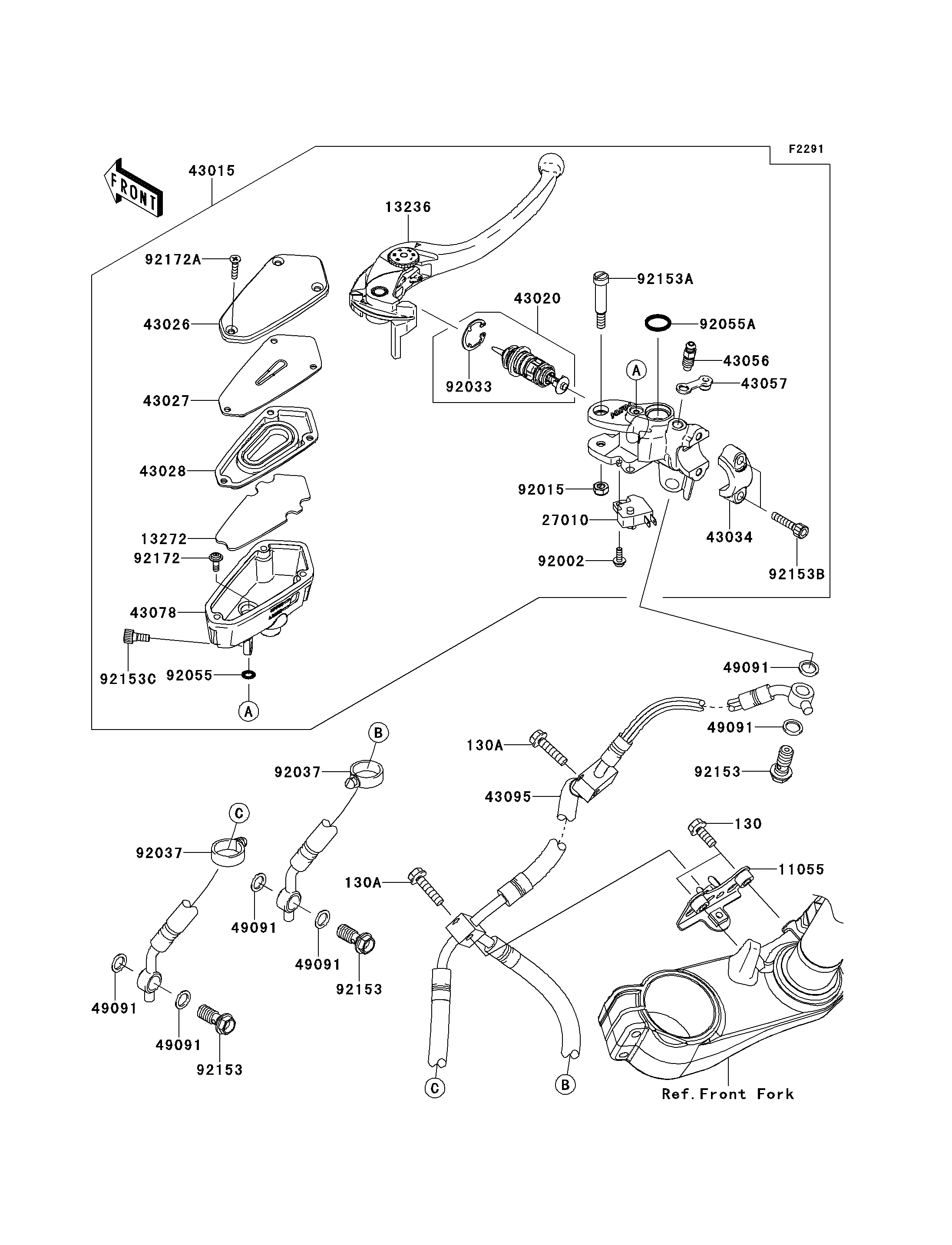

2010 Concours™ 14 - Front Master Cylinder

DOWNLOAD PDF
SELECT A NEW PART
130
130A
130A
11055
13236
13272
27010
43015
43020
43026
43027
43028
43034
43056
43057
43078
43095
49091
49091
49091
49091
49091
49091
92002
92015
92033
92037
92037
92055
92055A
92153
92153
92153
92153A
92153B
92153C
92172
92172A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED,6X18 130 130BA0618 2
BOLT-FLANGED,6X25 130A 130BB0625 2
BRACKET,UNDER FORK 11055 11055-1717 1
LEVER-COMP,FRONT BRAKE 13236 13236-0103 1
PLATE 13272 13272-0220 1
SWITCH,BRAKE 27010 27010-0025 1
CYLINDER-ASSY-MASTER,FR 43015 43015-0148 1
PISTON-COMP-BRAKE 43020 43020-0010 1
CAP-BRAKE 43026 43026-0011 1
PLATE-DIAPHRAGM 43027 43027-0003 1
DIAPHRAGM 43028 43028-0008 1
HOLDER-BRAKE,MASTER CYLINDER 43034 43034-0056 1
BREATHER-BRAKE 43056 43056-1056 1
CAP-BREATHER 43057 43057-1001 1
RESERVOIR 43078 43078-0048 1
HOSE-BRAKE,FR 43095 43095-0501 1
WASHER-SEAL,10.1X14.5X1.5 49091 49091-0001 6
BOLT,SCREW,4X12 92002 92002-1323 1
NUT,FLANGED,6MM,BLACK 92015 92015-1233 1
RING-SNAP 92033 92033-0034 1
CLAMP,HOSE 92037 92037-1827 2
RING-O 92055 92055-0137 1
RING-O,MASTER CYLINDER 92055A 92055-1251 1
BOLT,OIL,L=23 92153 92153-0627 3
BOLT,LEVER 92153A 92153-0868 1
BOLT,SOCKET,6X22 92153B 92153-1518 2
BOLT,SOCKET,6X12 92153C 92153-1853 1
SCREW 92172 92172-0319 1
SCREW,4X20 92172A 92172-0320 3
