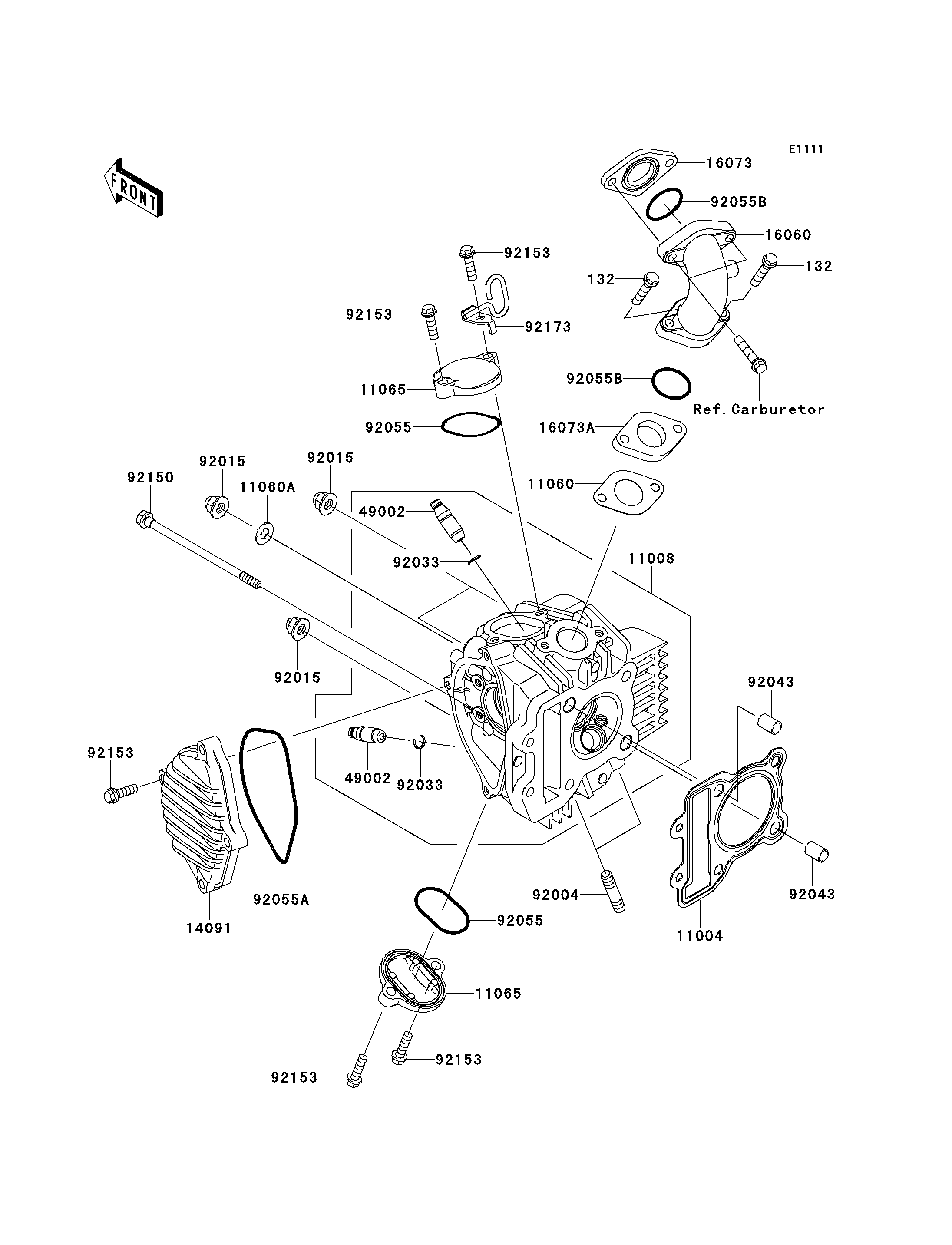

Parts Diagrams |
132
132
11004
11008
11060
11060A
11065
11065
14091
16060
16073
16073A
49002
49002
92004
92015
92015
92015
92033
92033
92043
92043
92055
92055
92055A
92055B
92055B
92150
92153
92153
92153
92153
92153
92173
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
BOLT-FLANGED-SMALL,6X30 | 132 | 132BD0630 | 2 | ||
GASKET-HEAD | 11004 | 11004-1338 | 1 | ||
HEAD-COMP-CYLINDER | 11008 | 11008-0184 | 1 | ||
GASKET,INTAKE PIPE | 11060 | 11060-1753 | 1 | ||
GASKET | 11060A | 11060-1862 | 1 | ||
CAP,VALVE ADJUSTING | 11065 | 11065-1177 | 2 | ||
COVER,CAMSHAFT | 14091 | 14091-1447 | 1 | ||
PIPE-INTAKE | 16060 | 16060-0021 | 1 | ||
INSULATOR,CARBURETOR | 16073 | 16073-1102 | 1 | ||
INSULATOR,HEAD | 16073A | 16073-1108 | 1 | ||
GUIDE-VALVE | 49002 | 49002-1130 | 2 | ||
STUD,8X28.5 | 92004 | 92004-1284 | 2 | ||
NUT,CAP,8MM | 92015 | 92015-1151 | 4 | ||
RING-SNAP | 92033 | 92033-1247 | 2 | ||
PIN,8.2X10X14 | 92043 | 92043-0100 | 2 | ||
RING-O,ADJUST CAP | 92055 | 92055-1231 | 2 | ||
RING-O,91X2.5 | 92055A | 92055-1527 | 1 | ||
RING-O,25.5X2.0 | 92055B | 92055-1528 | 2 | ||
BOLT,6X106 | 92150 | 92150-1761 | 2 | ||
BOLT,6X20 | 92153 | 92153-1184 | 8 | ||
CLAMP | 92173 | 92173-0156 | 1 |
