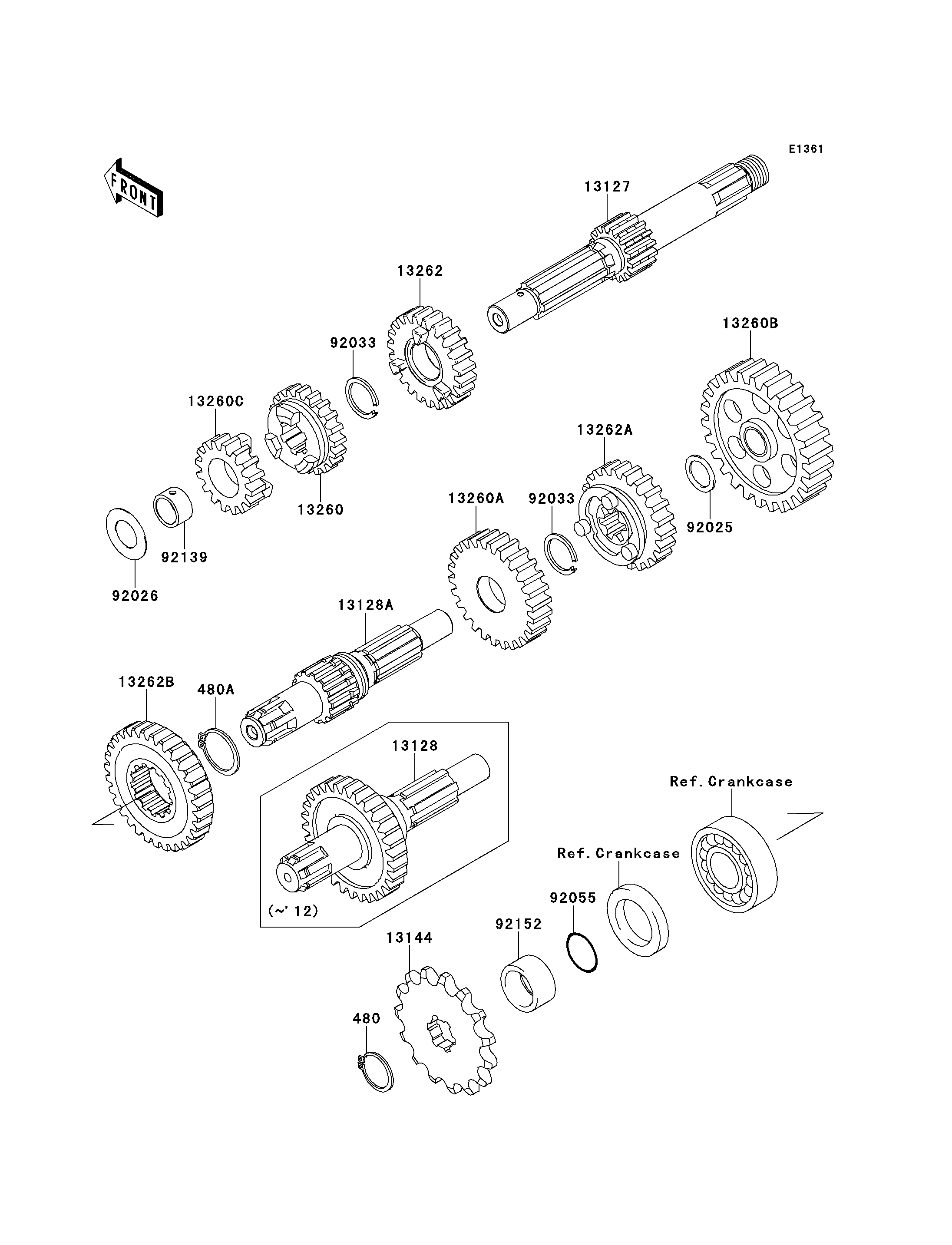

2013 KLX®110L - Transmission

DOWNLOAD PDF
SELECT A NEW PART
480
480A
13127
13128A
13144
13260
13260A
13260B
13260C
13262
13262A
13262B
92025
92026
92033
92033
92055
92139
92152
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CIRCLIP-TYPE-C,17MM 480 480J1700 1
CIRCLIP-TYPE-C,24MM 480A 480J2400 1
SHAFT-TRANSMISSION INPUT,12T 13127 13127-1280 1
SHAFT-TRANSMISSION OUTPUT 13128A 13128-0672 1
SPROCKET-OUTPUT,13T 13144 13144-1043 1
GEAR,INPUT 3RD,20T 13260 13260-1839 1
GEAR,OUTPUT 3RD,27T 13260A 13260-1842 1
GEAR,OUTPUT LOW,36T 13260B 13260-1862 1
GEAR,INPUT 2ND,16T 13260C 13260-1986 1
GEAR,INPUT 4TH,23T 13262 13262-0666 1
GEAR,OUTPUT 4TH,25T 13262A 13262-0667 1
GEAR,OUTPUT 2ND,31T 13262B 13262-0913 1
SHIM 92025 92025-1280 1
SPACER 92026 92026-1091 1
RING-SNAP,17MM 92033 92033-1060 2
RING-O,16.8MM 92055 92055-1235 1
BUSHING 92139 92139-1102 1
COLLAR,SPROCKET 92152 92152-0998 1
