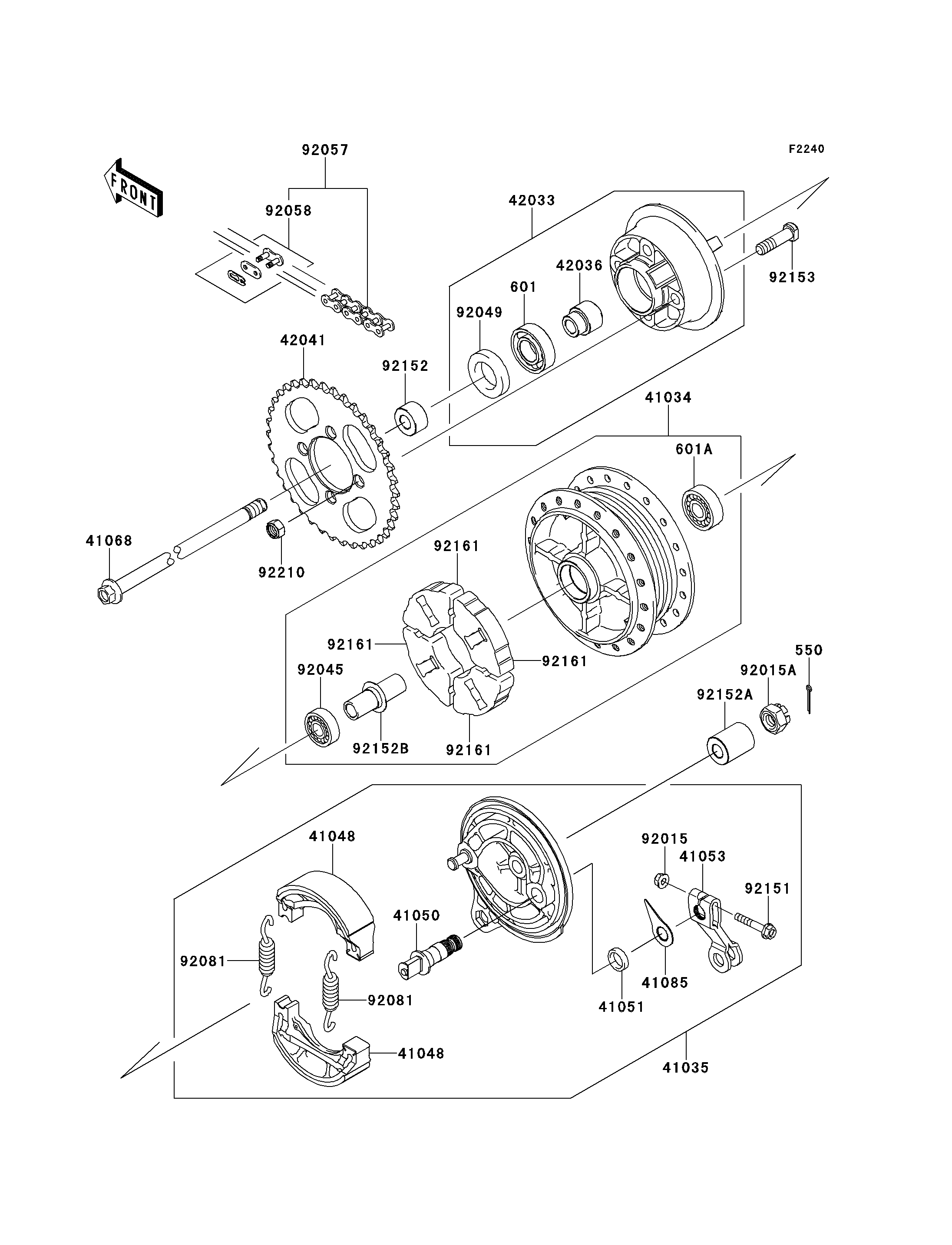

Parts Diagrams |
550
601
601A
41034
41035
41048
41048
41050
41051
41053
41068
41085
42033
42036
42041
92015
92015A
92045
92049
92057
92058
92081
92081
92151
92152
92152A
92152B
92153
92161
92161
92161
92161
92210
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
PIN-COTTER,2.5X20 | 550 | 550S2520 | 1 | ||
BEARING-BALL,#6004UG | 601 | 601B6004UG | 1 | ||
BEARING-BALL,#6301UG | 601A | 601B6301UG | 1 | ||
DRUM-ASSY,REAR BRAKE | 41034 | 41034-0010 | 1 | ||
PANEL-ASSY-BRAKE,RR | 41035 | 41035-0084 | 1 | ||
SHOE-BRAKE | 41048 | 41048-1141 | 2 | ||
CAM-BRAKE | 41050 | 41050-1082 | 1 | ||
SEAL,BRAKE CAM | 41051 | 41051-001 | 1 | ||
LEVER-BRAKE CAM | 41053 | 41053-0021 | 1 | ||
AXLE,RR | 41068 | 41068-0016 | 1 | ||
INDICATOR | 41085 | 41085-1085 | 1 | ||
COUPLING-ASSY,RR HUB | 42033 | 42033-1223 | 1 | ||
SLEEVE,RR HUB COUPLING,L=29 | 42036 | 42036-1292 | 1 | ||
SPROCKET-HUB,38T | 42041 | 42041-0082 | 1 | ||
NUT,FLANGED,6MM | 92015 | 92015-1367 | 1 | ||
NUT,CASTLE,12MM | 92015A | 92015-1870 | 1 | ||
BEARING-BALL,6201ZC3/5C | 92045 | 92045-1308 | 1 | ||
SEAL-OIL,SC26X42X8 | 92049 | 92049-1490 | 1 | ||
CHAIN,DRIVE,DID420DXX90L | 92057 | 92057-0183 | 1 | ||
JOINT-CHAIN,DRIVE | 92058 | 92058-0006 | 1 | ||
SPRING,BRAKE SHOE | 92081 | 92081-1766 | 2 | ||
BOLT,FLANGED,6X34 | 92151 | 92151-1209 | 1 | ||
COLLAR,RR AXLE,LH,L=14.8 | 92152 | 92152-1405 | 1 | ||
COLLAR,RR AXLE,RH,L=32 | 92152A | 92152-1406 | 1 | ||
COLLAR,REAR BRAKE DRUM,L=58 | 92152B | 92152-1409 | 1 | ||
BOLT,10X36 | 92153 | 92153-1120 | 4 | ||
DAMPER,RR HUB SHOCK | 92161 | 92161-0084 | 4 | ||
NUT,LOCK,10MM | 92210 | 92210-1351 | 4 |
PIN-COTTER,2.5X20 | |
REF # | 550 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BEARING-BALL,#6004UG | |
REF # | 601 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BEARING-BALL,#6301UG | |
REF # | 601A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
DRUM-ASSY,REAR BRAKE | |
REF # | 41034 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
PANEL-ASSY-BRAKE,RR | |
REF # | 41035 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SHOE-BRAKE | |
REF # | 41048 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
CAM-BRAKE | |
REF # | 41050 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SEAL,BRAKE CAM | |
REF # | 41051 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
LEVER-BRAKE CAM | |
REF # | 41053 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
AXLE,RR | |
REF # | 41068 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
INDICATOR | |
REF # | 41085 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
COUPLING-ASSY,RR HUB | |
REF # | 42033 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SLEEVE,RR HUB COUPLING,L=29 | |
REF # | 42036 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SPROCKET-HUB,38T | |
REF # | 42041 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
NUT,FLANGED,6MM | |
REF # | 92015 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
NUT,CASTLE,12MM | |
REF # | 92015A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BEARING-BALL,6201ZC3/5C | |
REF # | 92045 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SEAL-OIL,SC26X42X8 | |
REF # | 92049 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
CHAIN,DRIVE,DID420DXX90L | |
REF # | 92057 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
JOINT-CHAIN,DRIVE | |
REF # | 92058 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SPRING,BRAKE SHOE | |
REF # | 92081 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
BOLT,FLANGED,6X34 | |
REF # | 92151 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
COLLAR,RR AXLE,LH,L=14.8 | |
REF # | 92152 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
COLLAR,RR AXLE,RH,L=32 | |
REF # | 92152A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
COLLAR,REAR BRAKE DRUM,L=58 | |
REF # | 92152B |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BOLT,10X36 | |
REF # | 92153 |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
DAMPER,RR HUB SHOCK | |
REF # | 92161 |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
NUT,LOCK,10MM | |
REF # | 92210 |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
