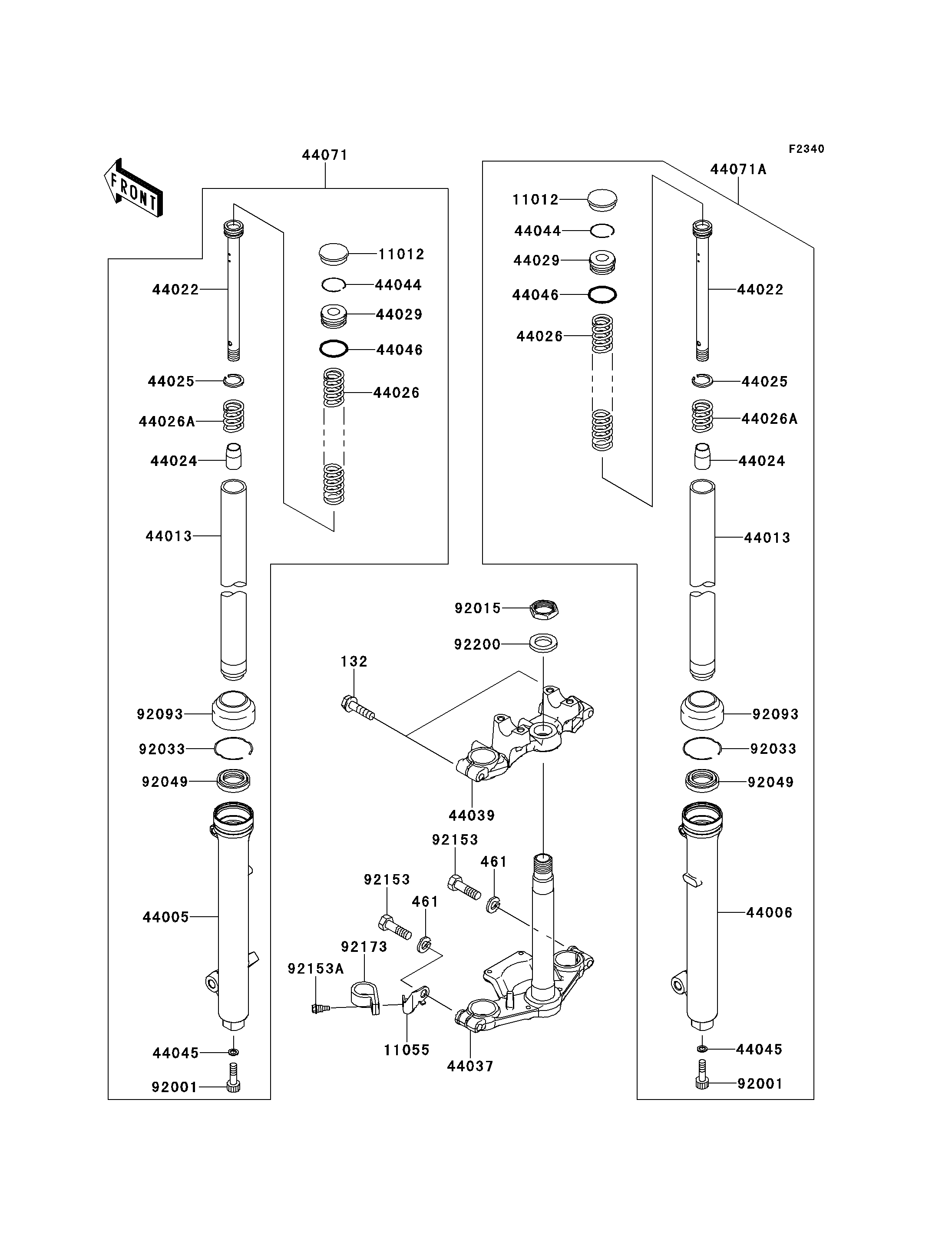

Parts Diagrams |
132
461
461
11012
11012
11055
44005
44006
44013
44013
44022
44022
44024
44024
44025
44025
44026
44026
44026A
44026A
44029
44029
44037
44039
44044
44044
44045
44045
44046
44046
44071
44071A
92001
92001
92015
92033
92033
92049
92049
92093
92093
92153
92153
92153A
92173
92200
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
BOLT-FLANGED-SMALL,8X35 | 132 | 132BA0835 | 2 | ||
WASHER-SPRING,10MM | 461 | 461DA1000 | 2 | ||
CAP,RUBBER,FORK TOP | 11012 | 11012-1067 | 2 | ||
BRACKET | 11055 | 11055-1631 | 1 | ||
PIPE-LEFT FORK OUTER,P.SILVER | 44005 | 44005-0078-458 | 1 | ||
PIPE-RIGHT FORK OUTER,P.SILVER | 44006 | 44006-0072-458 | 1 | ||
PIPE-FORK INNER | 44013 | 44013-0144 | 2 | ||
CYLINDER-FORK | 44022 | 44022-0027 | 2 | ||
CAP-OIL-LOCK | 44024 | 44024-1071 | 2 | ||
RING-FORK PISTON | 44025 | 44025-1061 | 2 | ||
SPRING-FRONT FORK | 44026 | 44026-0145 | 2 | ||
SPRING-FRONT FORK,REBOUND | 44026A | 44026-060 | 2 | ||
SEAT-FORK SPRING | 44029 | 44029-022 | 2 | ||
HOLDER-FORK UNDER,P.SILVER | 44037 | 44037-0105-458 | 1 | ||
HOLDER-FORK UPPER | 44039 | 44039-0093 | 1 | ||
RING-SNAP | 44044 | 44044-023 | 2 | ||
GASKET,FORK CYLINDER BOLT | 44045 | 44045-051 | 2 | ||
RING-O | 44046 | 44046-025 | 2 | ||
DAMPER-ASSY,FORK,LH,P.SILVER | 44071 | 44071-0653-458 | 1 | ||
DAMPER-ASSY,FORK,RH,P.SILVER | 44071A | 44071-0654-458 | 1 | ||
BOLT,FORK CYLINDER | 92001 | 92001-1464 | 2 | ||
NUT,STEERING STEM,22MM | 92015 | 92015-1653 | 1 | ||
RING-SNAP,FORK OUTER TUBE | 92033 | 92033-1028 | 2 | ||
SEAL-OIL,FORK OUTER TUBE | 92049 | 92049-1069 | 2 | ||
DUST SHIELD,FORK | 92093 | 92093-1054 | 2 | ||
BOLT,10X35 | 92153 | 92153-1199 | 2 | ||
BOLT,FLANGED | 92153A | 92153-1397 | 1 | ||
CLAMP | 92173 | 92173-0166 | 1 | ||
WASHER,STEERING STEM | 92200 | 92200-0517 | 1 |
BOLT-FLANGED-SMALL,8X35 | |
REF # | 132 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
WASHER-SPRING,10MM | |
REF # | 461 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
CAP,RUBBER,FORK TOP | |
REF # | 11012 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
BRACKET | |
REF # | 11055 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
PIPE-LEFT FORK OUTER,P.SILVER | |
REF # | 44005 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
PIPE-RIGHT FORK OUTER,P.SILVER | |
REF # | 44006 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
PIPE-FORK INNER | |
REF # | 44013 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
CYLINDER-FORK | |
REF # | 44022 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
CAP-OIL-LOCK | |
REF # | 44024 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
RING-FORK PISTON | |
REF # | 44025 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
SPRING-FRONT FORK | |
REF # | 44026 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
SPRING-FRONT FORK,REBOUND | |
REF # | 44026A |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
SEAT-FORK SPRING | |
REF # | 44029 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
HOLDER-FORK UNDER,P.SILVER | |
REF # | 44037 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
HOLDER-FORK UPPER | |
REF # | 44039 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
RING-SNAP | |
REF # | 44044 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
GASKET,FORK CYLINDER BOLT | |
REF # | 44045 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
RING-O | |
REF # | 44046 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
DAMPER-ASSY,FORK,LH,P.SILVER | |
REF # | 44071 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
DAMPER-ASSY,FORK,RH,P.SILVER | |
REF # | 44071A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BOLT,FORK CYLINDER | |
REF # | 92001 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
NUT,STEERING STEM,22MM | |
REF # | 92015 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
RING-SNAP,FORK OUTER TUBE | |
REF # | 92033 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
SEAL-OIL,FORK OUTER TUBE | |
REF # | 92049 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
DUST SHIELD,FORK | |
REF # | 92093 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
BOLT,10X35 | |
REF # | 92153 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
BOLT,FLANGED | |
REF # | 92153A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
CLAMP | |
REF # | 92173 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
WASHER,STEERING STEM | |
REF # | 92200 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
