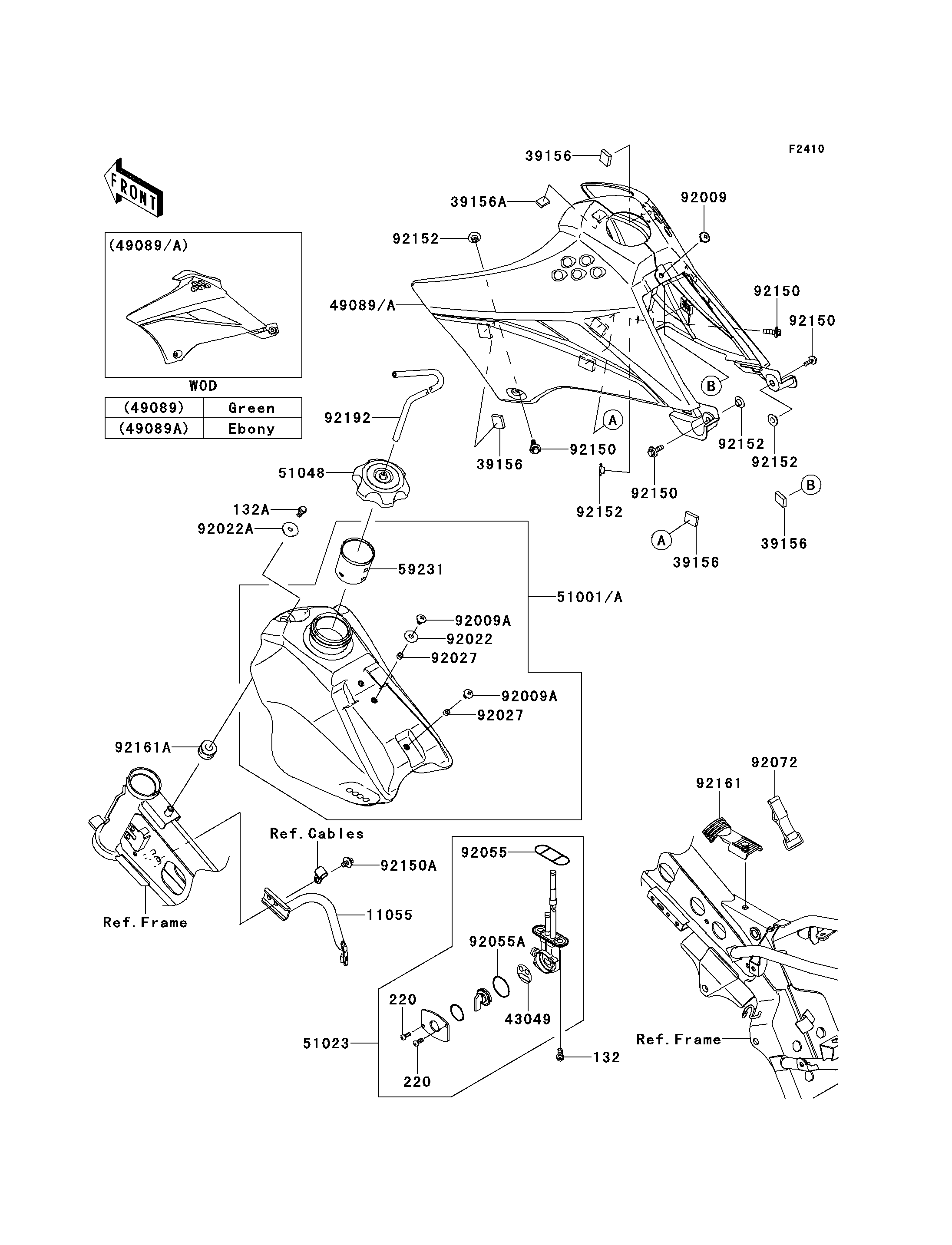

2013 KLX®110L - Fuel Tank

DOWNLOAD PDF
SELECT A NEW PART
132
132A
220
220
11055
39156
39156
39156
39156
39156A
43049
49089
51001A
51023
51048
59231
92009
92009A
92009A
92022
92022A
92027
92027
92055
92055A
92072
92150
92150
92150
92150
92150A
92152
92152
92152
92152
92161
92161A
92192
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED-SMALL,6X12 132 132BA0612 2
BOLT-FLANGED-SMALL,6X14 132A 132BA0614 1
SCREW-PAN-CROS,3X8 220 220AA0308 2
BRACKET,SHROUD,RH 11055 11055-1636 1
PAD,16X20X5 39156 39156-0580 6
PAD,12X17X4 39156A 39156-0581 1
PACKING,TAP VALVE 43049 43049-1091 1
SHROUD-ENGINE,L.GREEN 49089 49089-0081-290 1
TANK-COMP-FUEL 51001A 51001-0771 1
TAP-ASSY 51023 51023-0036 1
CAP-ASSY-TANK,FUEL 51048 51048-0009 1
FILLER 59231 59231-0051 1
SCREW,6X10,WHITE 92009 92009-1286 1
SCREW,6X10 92009A 92009-1530 2
WASHER,PLAIN,6MM 92022 92022-165 1
WASHER,6.5X24X2 92022A 92022-1690 1
COLLAR,6.2X7.8X5 92027 92027-2096 2
RING-O,FUEL TAP PACKING 92055 92055-1348 1
RING-O,TAP LEVER 92055A 92055-1419 1
BAND,FUEL TANK 92072 92072-1229 1
BOLT,FLANGED,6X20 92150 92150-1339 4
BOLT,6X12 92150A 92150-1435 1
COLLAR 92152 92152-0427 4
DAMPER,FUEL TANK 92161 92161-0779 1
DAMPER 92161A 92161-1523 1
TUBE,5X8X380 92192 92192-0884 1
