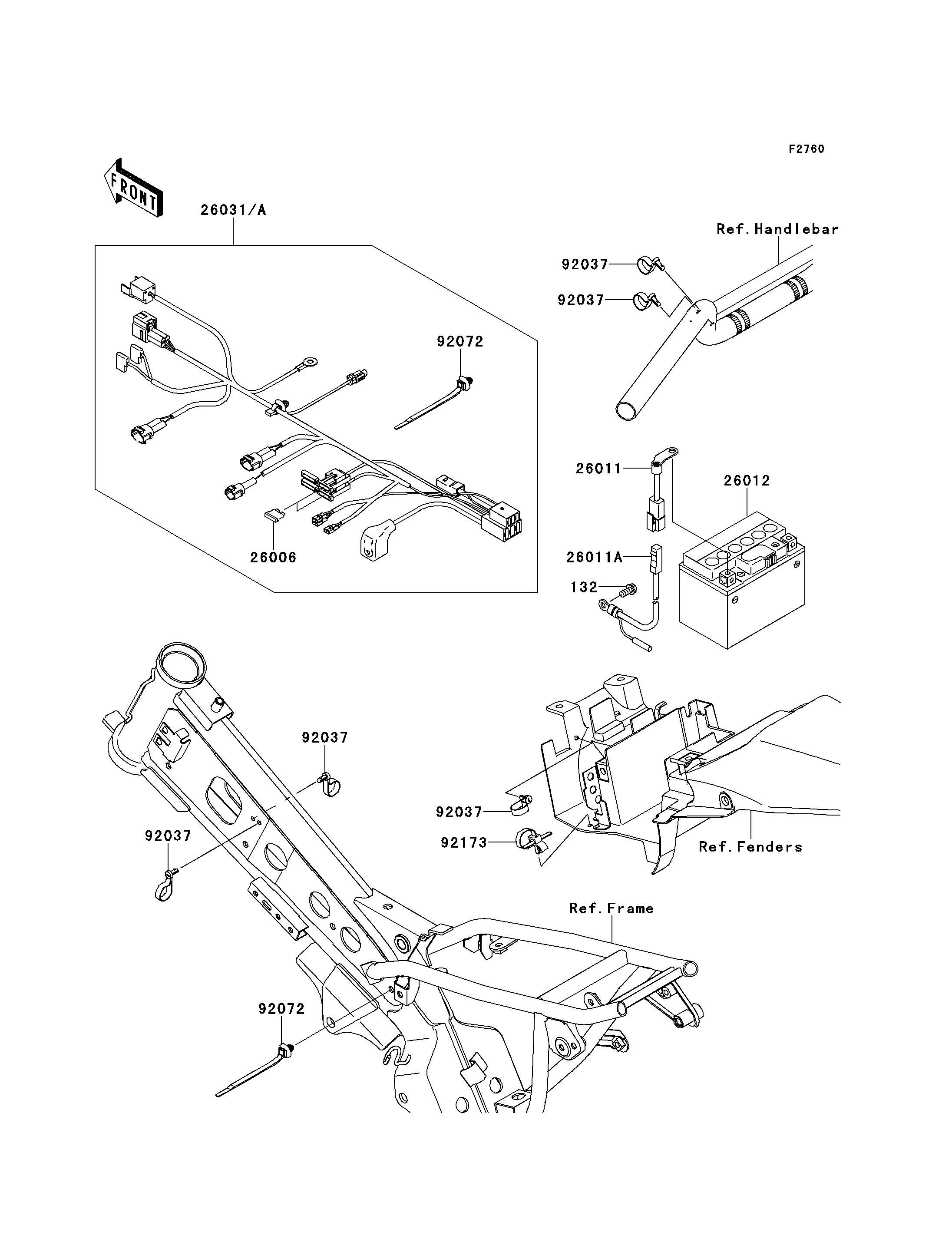

132
26006
26011
26011A
26012
26031A
92037
92037
92037
92037
92037
92072
92072
92173
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED-SMALL,6X12 132 132BA0612 1
FUSE,MINI BLADE,10A,RED 26006 26006-0009 2
WIRE-LEAD 26011 26011-0245 1
WIRE-LEAD 26011A 26011-0289 1
BATTERY,FTH4L-BS,12V 3AH 26012 26012-0116 1
HARNESS,MAIN 26031A 26031-1106 1
CLAMP,SPEED,L=58 92037 92037-1163 5
BAND 92072 92072-1414 2
CLAMP 92173 92173-0191 1
