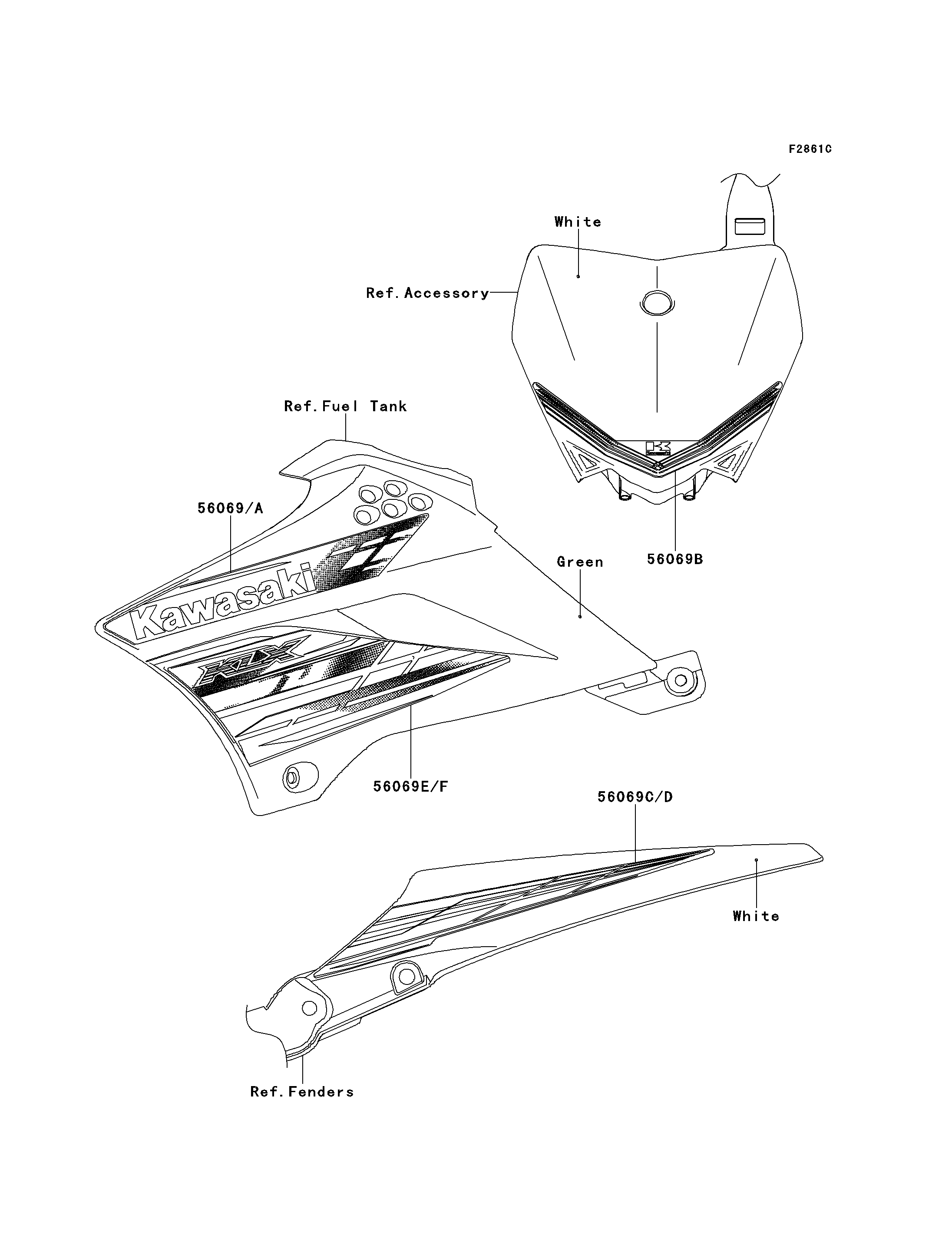

56069
56069A
56069B
56069C
56069D
56069E
56069F
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
PATTERN,SHROUD,UPP,LH 56069 56069-2020 1
PATTERN,SHROUD,UPP,RH 56069A 56069-2021 1
PATTERN,NUMBER PLATE 56069B 56069-2024 1
PATTERN,RR FENDER,LH 56069C 56069-2025 1
PATTERN,RR FENDER,RH 56069D 56069-2026 1
PATTERN,SHROUD,LWR,LH 56069E 56069-2027 1
PATTERN,SHROUD,LWR,RH 56069F 56069-2028 1
