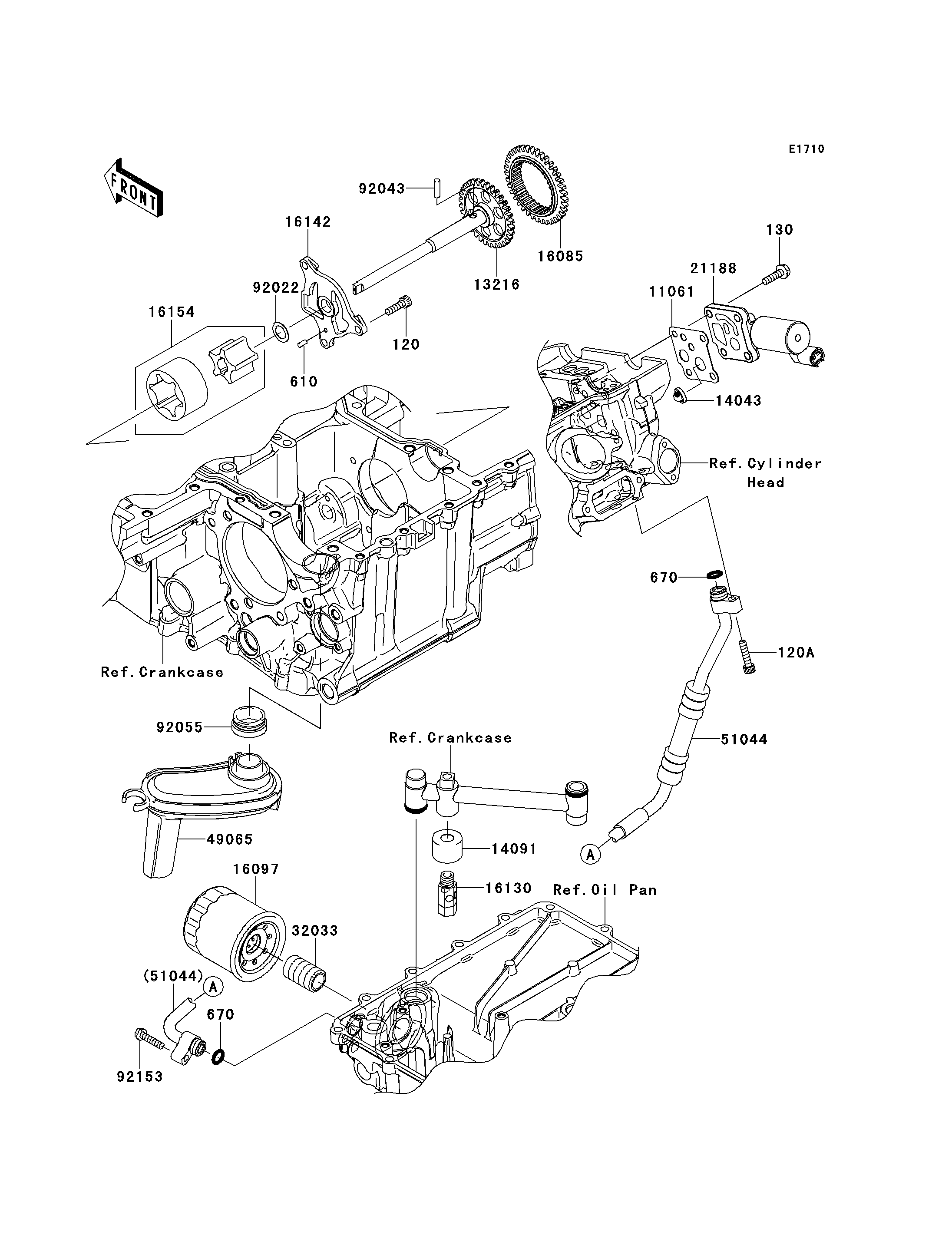

2010 Concours® 14 ABS - Oil Pump/Oil Filter

DOWNLOAD PDF
SELECT A NEW PART
120
120A
130
610
670
670
11061
13216
14043
14091
16085
16097
16130
16142
16154
21188
32033
49065
51044
92022
92043
92055
92153
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-SOCKET,6X20 120 120CA0620 3
BOLT-SOCKET,6X25 120A 120CA0625 1
BOLT-FLANGED,6X22 130 130BA0622 4
ROLLER,4X8 610 610A0408 1
O RING,10.8X2.4 670 670D2011 2
GASKET,SOLENOID 11061 11061-0419 1
GEAR-COMP,OIL PUMP 13216 13216-0024 1
FILTER,ELEMENT 14043 14043-0009 1
COVER,VALVE 14091 14091-0497 1
GEAR 16085 16085-0103 1
FILTER-ASSY-OIL 16097 16097-0004 1
VALVE-ASSY-RELIEF 16130 16130-1059 1
COVER-PUMP 16142 16142-0027 1
ROTOR-PUMP 16154 16154-0047 1
SOLENOID,VVT 21188 21188-0006 1
PIPE,OIL FILTER 32033 32033-1535 1
FILTER-OIL 49065 49065-0014 1
TUBE-ASSY,EG OIL 51044 51044-0049 1
WASHER,13.2X20X0.5 92022 92022-1224 1
PIN,17.9X5.0 92043 92043-1444 1
RING-O,OIL FILTER 92055 92055-1503 1
BOLT,FLANGED,6X25 92153 92153-1795 1
