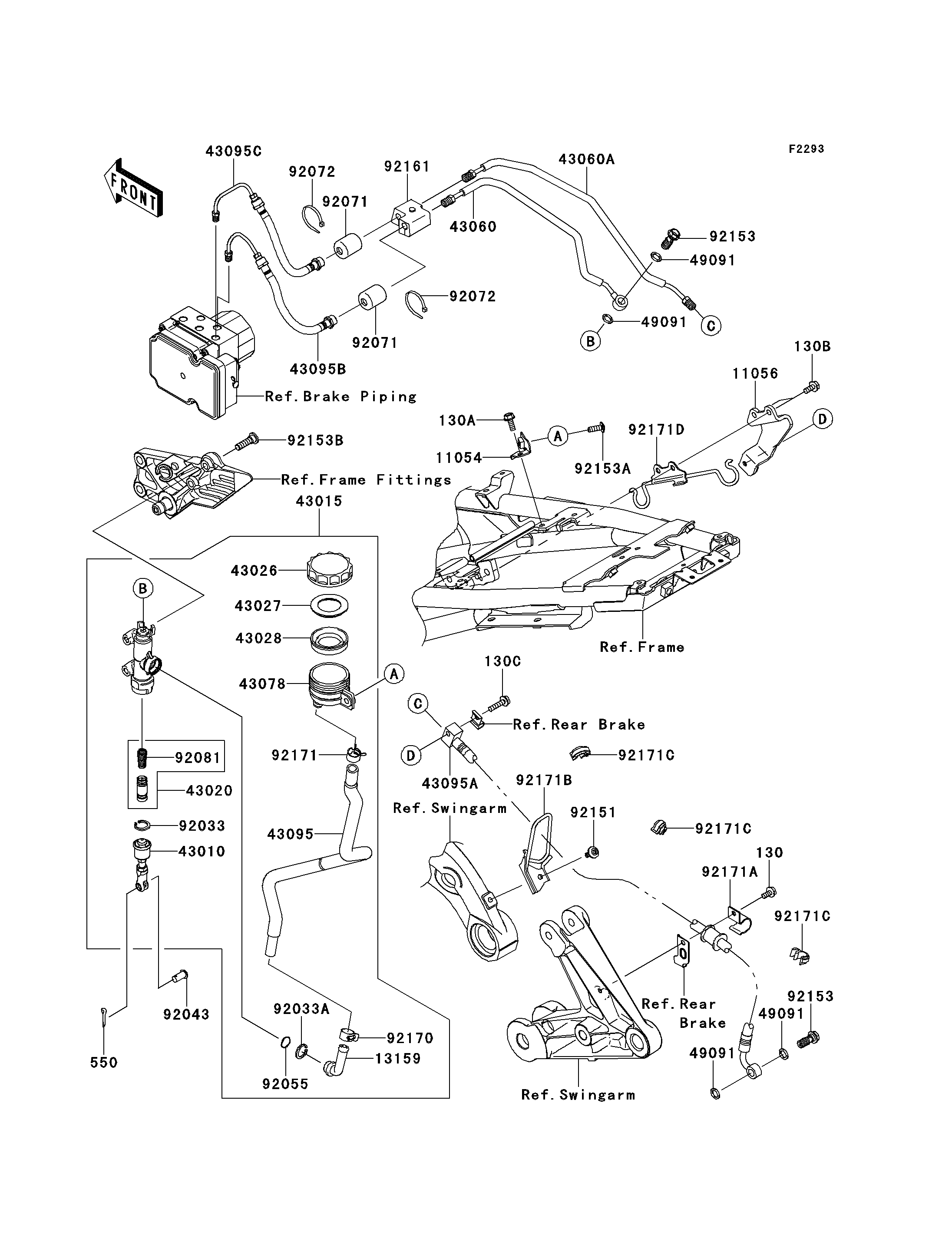

2010 Concours® 14 ABS - Rear Master Cylinder

DOWNLOAD PDF
SELECT A NEW PART
130
130A
130B
130C
550
11054
11056
13159
43010
43015
43020
43026
43027
43028
43060
43060A
43078
43095
43095A
43095B
43095C
49091
49091
49091
49091
92033
92033A
92043
92055
92071
92071
92072
92072
92081
92151
92153
92153
92153A
92153B
92161
92170
92171
92171A
92171B
92171C
92171C
92171C
92171D
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED,6X12 130 130BA0612 1
BOLT-FLANGED,6X16 130A 130BA0616 1
BOLT-FLANGED,6X14 130B 130BB0614 2
BOLT-FLANGED,6X25 130C 130BB0625 1
PIN-COTTER,2.0X15 550 550AA2015 1
BRACKET,RESERVOIR TANK,RR 11054 11054-1915 1
BRACKET,HOSE JOINT,RR 11056 11056-0037 1
CONNECTOR 13159 13159-1056 1
ROD-ASSY-BRAKE 43010 43010-0013 1
CYLINDER-ASSY-MASTER 43015 43015-0585 1
PISTON-COMP-BRAKE 43020 43020-1057 1
CAP-BRAKE 43026 43026-1051 1
PLATE-DIAPHRAGM 43027 43027-1051 1
DIAPHRAGM,MASTER CYLINDER 43028 43028-1057 1
PIPE-BRAKE,HU-RR M/CYLINDER 43060 43060-0074 1
PIPE-BRAKE,HU-RR CALIPER,JNT. 43060A 43060-0075 1
RESERVOIR,RR MASTER CYLINDER 43078 43078-1082 1
HOSE-BRAKE,RR,MASTER CYLINDER 43095 43095-0334 1
HOSE-BRAKE,HU-RR CALIPER 43095A 43095-0498 1
HOSE-BRAKE,HU-RR M/CYLINDER 43095B 43095-0561 1
HOSE-BRAKE,HU-RR CALIPER 43095C 43095-0562 1
WASHER-SEAL,10.1X14.5X1.5 49091 49091-0001 4
RING-SNAP,20.9X24.6X1.2 92033 92033-0079 1
RING-SNAP,20.5MM 92033A 92033-1186 1
PIN,8X17 92043 92043-0104 1
RING-O,14.8X2.4 92055 92055-0741 1
GROMMET 92071 92071-1143 2
BAND,L=148 92072 92072-3768 2
SPRING,MASTER CYLINDER 92081 92081-1737 1
BOLT,SOCKET,6X14 92151 92151-1654 1
BOLT,OIL,L=23 92153 92153-0627 2
BOLT,6X18 92153A 92153-0756 1
BOLT,SOCKET,8X30 92153B 92153-1624 2
DAMPER,HOSE CLAMP 92161 92161-0314 1
CLAMP,HOSE 92170 92170-1091 1
CLAMP,HOSE 92171 92171-0463 1
CLAMP,BRAKE HOSE 92171A 92171-0880 1
CLAMP,BRAKE HOSE 92171B 92171-1713 1
CLAMP,BRAKE HOSE 92171C 92171-1819 3
CLAMP,RESERVE TANK HOSE 92171D 92171-1935 1
