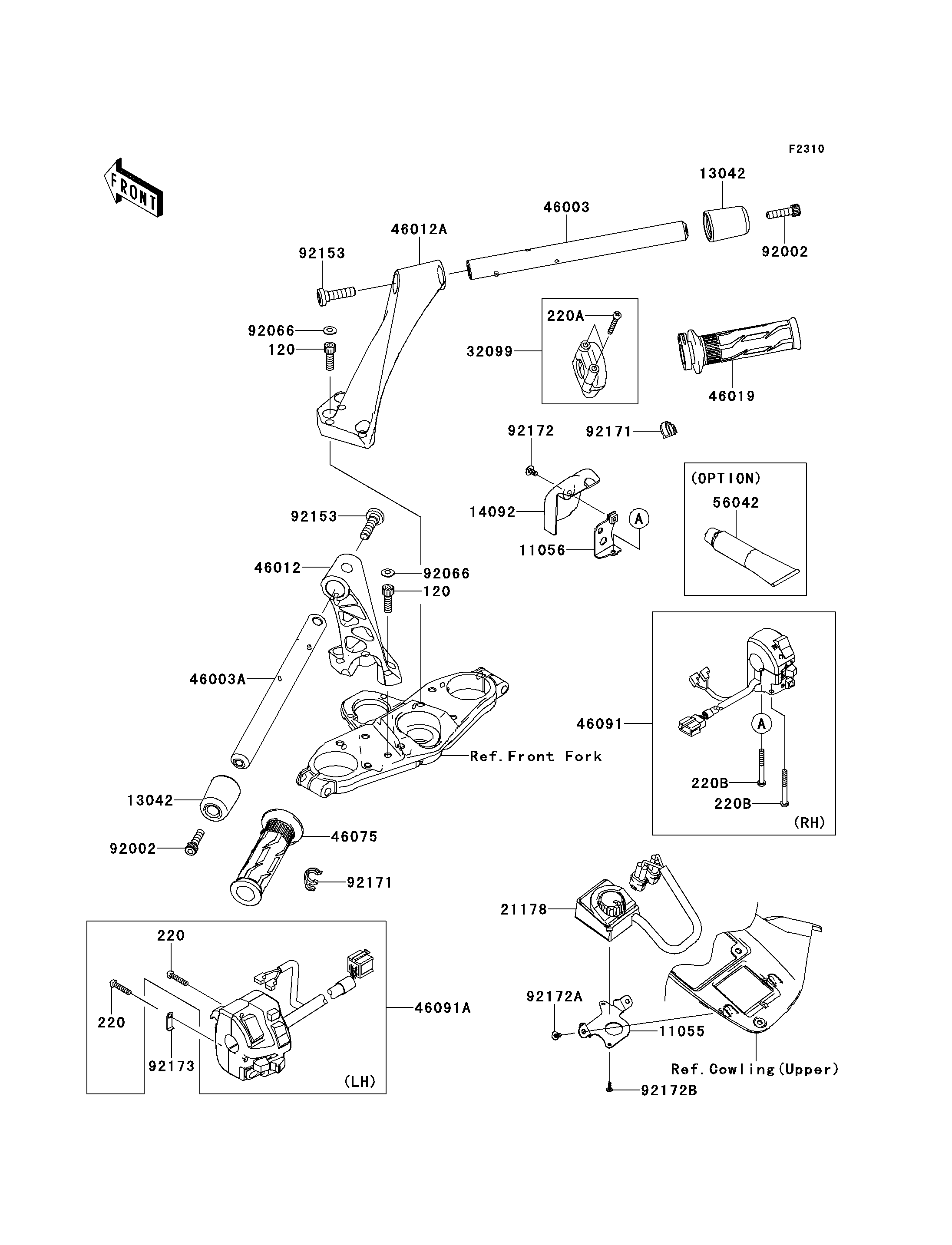

2010 Concours® 14 ABS - Handlebar

DOWNLOAD PDF
SELECT A NEW PART
120
120
220
220
220A
220B
220B
11055
11056
13042
13042
14092
21178
32099
46003
46003A
46012
46012A
46019
46075
46091
46091A
56042
92002
92002
92066
92066
92153
92153
92171
92171
92172
92172A
92172B
92173
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-SOCKET,8X25 120 120CA0825 6
SCREW-PAN-CROS,5X25 220 220AB0525 2
SCREW-PAN-CROS,5X35 220A 220AB0535 2
SCREW-PAN-CROS,5X45 220B 220AB0545 2
BRACKET,CONTROL SWITCH 11055 11055-1753 1
BRACKET 11056 11056-0154 1
WEIGHT,HANDLE 13042 13042-5002 2
COVER 14092 14092-0126 1
CONTROL-SWITCH,GRIP HEATERS 21178 21178-0002 1
CASE,THROTTLE 32099 32099-0027 1
HANDLE,RH 46003 46003-0177 1
HANDLE,LH 46003A 46003-0191 1
HOLDER-HANDLE,LH,P.SILVER 46012 46012-0086-458 1
HOLDER-HANDLE,RH,P.SILVER 46012A 46012-0087-458 1
GRIP-ASSY,THROTTLE,HEATER 46019 46019-0029 1
GRIP,LH,HEATER 46075 46075-0093 1
HOUSING-ASSY-CONTROL,RH 46091 46091-0189 1
HOUSING-ASSY-CONTROL,LH 46091A 46091-0202 1
ADHESIVE,TB1530C 56042 56042-0001 1 (OPTION)
BOLT,SOCKET,8X30 92002 92002-1844 2
PLUG 92066 92066-1216 6
BOLT,SOCKET,10X37 92153 92153-1440 2
CLAMP,BRAKE HOSE 92171 92171-1819 2
SCREW,5X10 92172 92172-0007 1
SCREW,TAPPING,4X10 92172A 92172-0172 2
SCREW,TAPPING,3X10 92172B 92172-0351 2
CLAMP 92173 92173-0177 1
