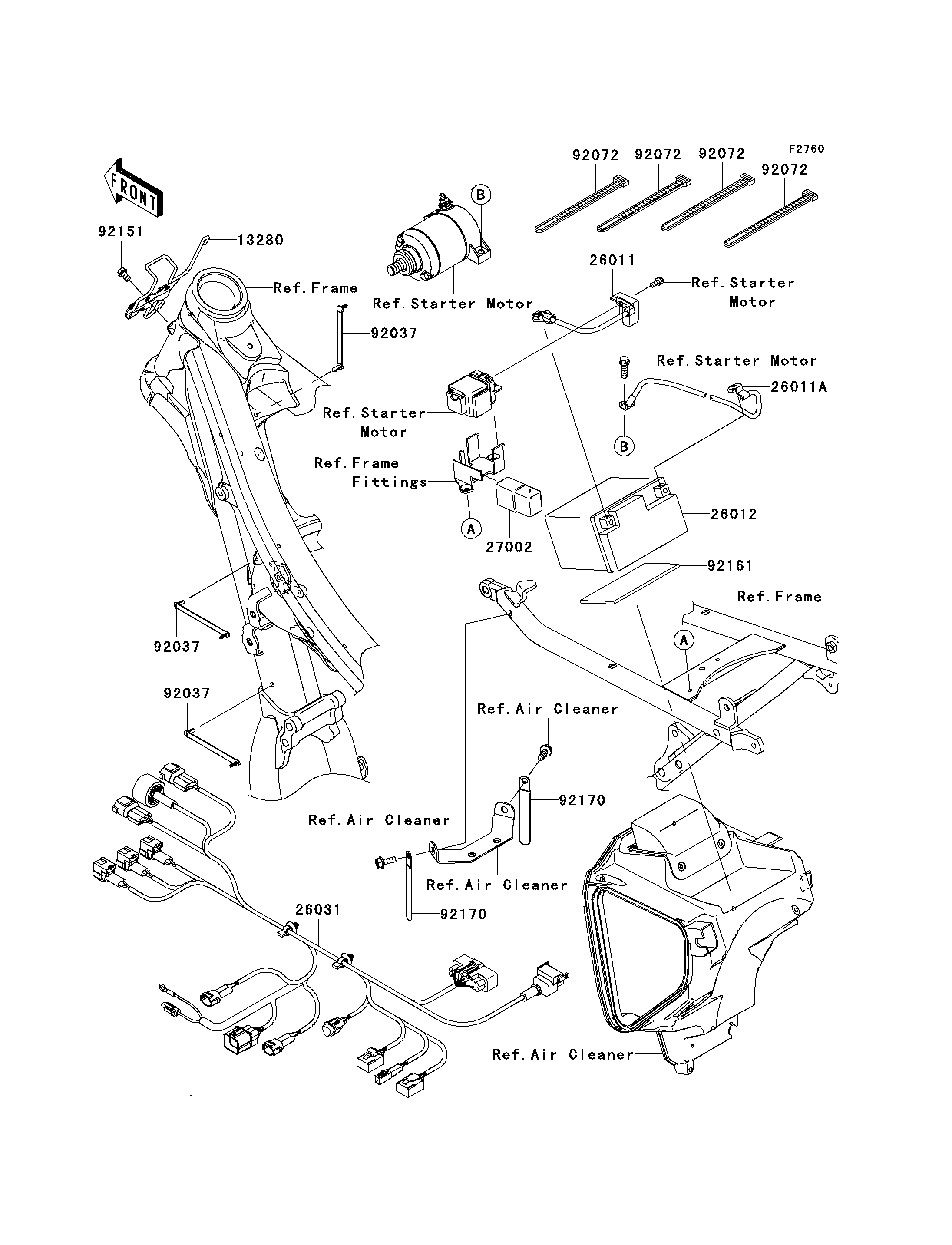

2008 KLX®450R - Chassis Electrical Equipment
13280
26011
26011A
26012
26031
27002
92037
92037
92037
92072
92072
92072
92072
92151
92161
92170
92170
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| HOLDER,CONNECTOR&CABLE | 13280 | 13280-0214 | 1 | ||
| WIRE-LEAD,BATTERY(+) | 26011 | 26011-0131 | 1 | ||
| WIRE-LEAD,BATTERY(-) | 26011A | 26011-0132 | 1 | ||
| BATTERY,YTZ7S(F),12V 6AH | 26012 | 26012-0098 | 1 | ||
| HARNESS,MAIN | 26031 | 26031-0601 | 1 | ||
| RELAY-ASSY | 27002 | 27002-1086 | 1 | ||
| CLAMP,SPEED,L=80.5 | 92037 | 92037-1903 | 3 | ||
| BAND,L=140 | 92072 | 92072-1293 | 4 | ||
| BOLT,FLANGED,6X10 | 92151 | 92151-1233 | 2 | ||
| DAMPER | 92161 | 92161-0456 | 1 | ||
| CLAMP | 92170 | 92170-1925 | 2 |
| HOLDER,CONNECTOR&CABLE | |
| REF # | 13280 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| WIRE-LEAD,BATTERY(+) | |
| REF # | 26011 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| WIRE-LEAD,BATTERY(-) | |
| REF # | 26011A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BATTERY,YTZ7S(F),12V 6AH | |
| REF # | 26012 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| HARNESS,MAIN | |
| REF # | 26031 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| RELAY-ASSY | |
| REF # | 27002 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CLAMP,SPEED,L=80.5 | |
| REF # | 92037 |
|---|---|
| PART NUMBER | |
| QUANTITY | 3 |
| DESTINATION | |
| REMARKS | |
| BAND,L=140 | |
| REF # | 92072 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| BOLT,FLANGED,6X10 | |
| REF # | 92151 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| DAMPER | |
| REF # | 92161 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CLAMP | |
| REF # | 92170 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
