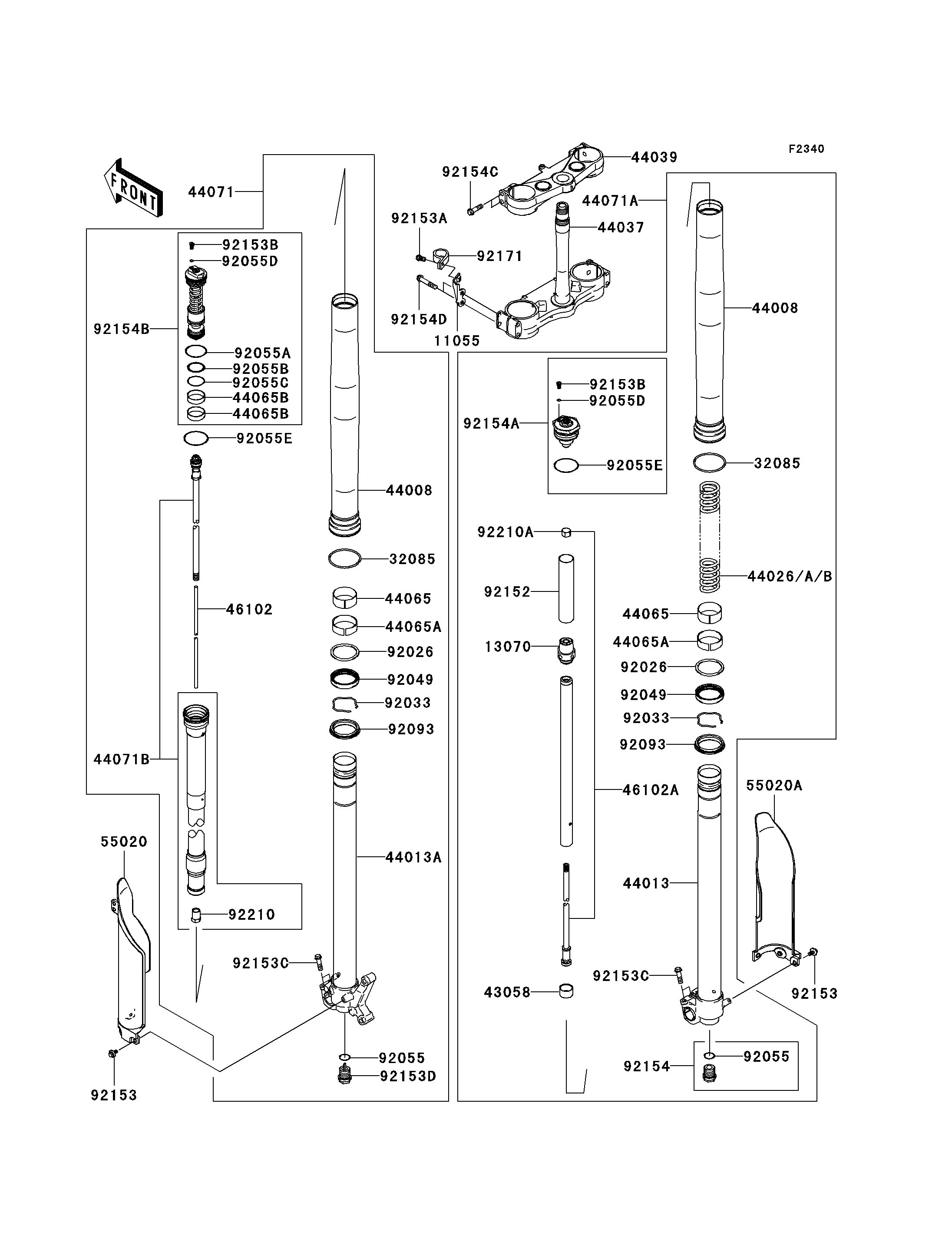

2011 KX™250F - Front Fork

DOWNLOAD PDF
SELECT A NEW PART
11055
11055
13070
13070
32085
32085
32085
32085
43058
43058
44008
44008
44008
44008
44013
44013
44013A
44013A
44026
44026
44026A
44026A
44026B
44026B
44037
44037
44039
44039
44065
44065
44065
44065
44065A
44065A
44065A
44065A
44065B
44065B
44065B
44065B
44071
44071
44071A
44071A
44071B
44071B
46102
46102
46102A
46102A
55020
55020
55020A
55020A
92026
92026
92026
92026
92033
92033
92033
92033
92049
92049
92049
92049
92055
92055
92055
92055
92055A
92055A
92055B
92055B
92055C
92055C
92055D
92055D
92055D
92055D
92055E
92055E
92055E
92055E
92093
92093
92093
92093
92152
92152
92153
92153
92153
92153
92153A
92153A
92153B
92153B
92153B
92153B
92153C
92153C
92153C
92153C
92153D
92153D
92154
92154
92154A
92154A
92154B
92154B
92154C
92154C
92154D
92154D
92171
92171
92210
92210
92210A
92210A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET,BRAKE HOSE 11055 11055-1405 1
GUIDE 13070 13070-0125 1
STOPPER,RING 32085 32085-0073 2
RING 43058 43058-0037 1
PIPE-FORK OUTER 44008 44008-0016 2
PIPE-FORK INNER 44013 44013-0164 1
PIPE-FORK INNER 44013A 44013-0165 1
SPRING-FRONT FORK 44026 44026-0152 1
SPRING-FRONT FORK,K=8.7N/MM 44026A 44026-0156 1 (OPTION)
SPRING-FRONT FORK,K=9.5N/MM 44026B 44026-0157 1 (OPTION)
HOLDER-FORK UNDER,F.BLACK 44037 44037-0113-21 1
HOLDER-FORK UPPER,F.BLACK 44039 44039-0103-21 1
BUSHING-FRONT FORK,SLIDE 44065 44065-0027 2
BUSHING-FRONT FORK,GUIDE 44065A 44065-0028 2
BUSHING-FRONT FORK,SLIDE 44065B 44065-0029 2
DAMPER-ASSY,FORK,LH 44071 44071-0695 1
DAMPER-ASSY,FORK,RH 44071A 44071-0696 1
DAMPER-ASSY,FORK,LH 44071B 44071-0708 1
ROD,PUSH 46102 46102-0107 1
ROD 46102A 46102-0153 1
GUARD,FORK,LH,EBONY 55020 55020-0441-6C 1
GUARD,FORK,RH,EBONY 55020A 55020-0442-6C 1
SPACER,SEAL 92026 92026-0144 2
RING-SNAP 92033 92033-0039 2
SEAL-OIL 92049 92049-0074 2
RING-O,CENTER BOLT 92055 92055-0090 2
RING-O 92055A 92055-0091 1
RING-O 92055B 92055-0092 1
RING-O 92055C 92055-0093 1
RING-O 92055D 92055-0094 2
RING-O 92055E 92055-0095 2
SEAL,DUST 92093 92093-0059 2
COLLAR 92152 92152-0889 1
BOLT,FLANGED,6X14 92153 92153-0936 6
BOLT,FLANGED 92153A 92153-1397 1
BOLT,PLUG 92153B 92153-1398 2
BOLT,FLANGED,8X40 92153C 92153-1399 4
BOLT,CENTER 92153D 92153-1778 1
BOLT 92154 92154-0409 1
BOLT,ADJ,BLUE 92154A 92154-0410-KW 1
BOLT,FORK,COMP,BLUE 92154B 92154-0411-KW 1
BOLT 92154C 92154-0463 4
BOLT 92154D 92154-0464 4
CLAMP,BRAKE HOSE 92171 92171-0506 1
NUT,LOCK 92210 92210-0430 1
NUT 92210A 92210-0619 1
