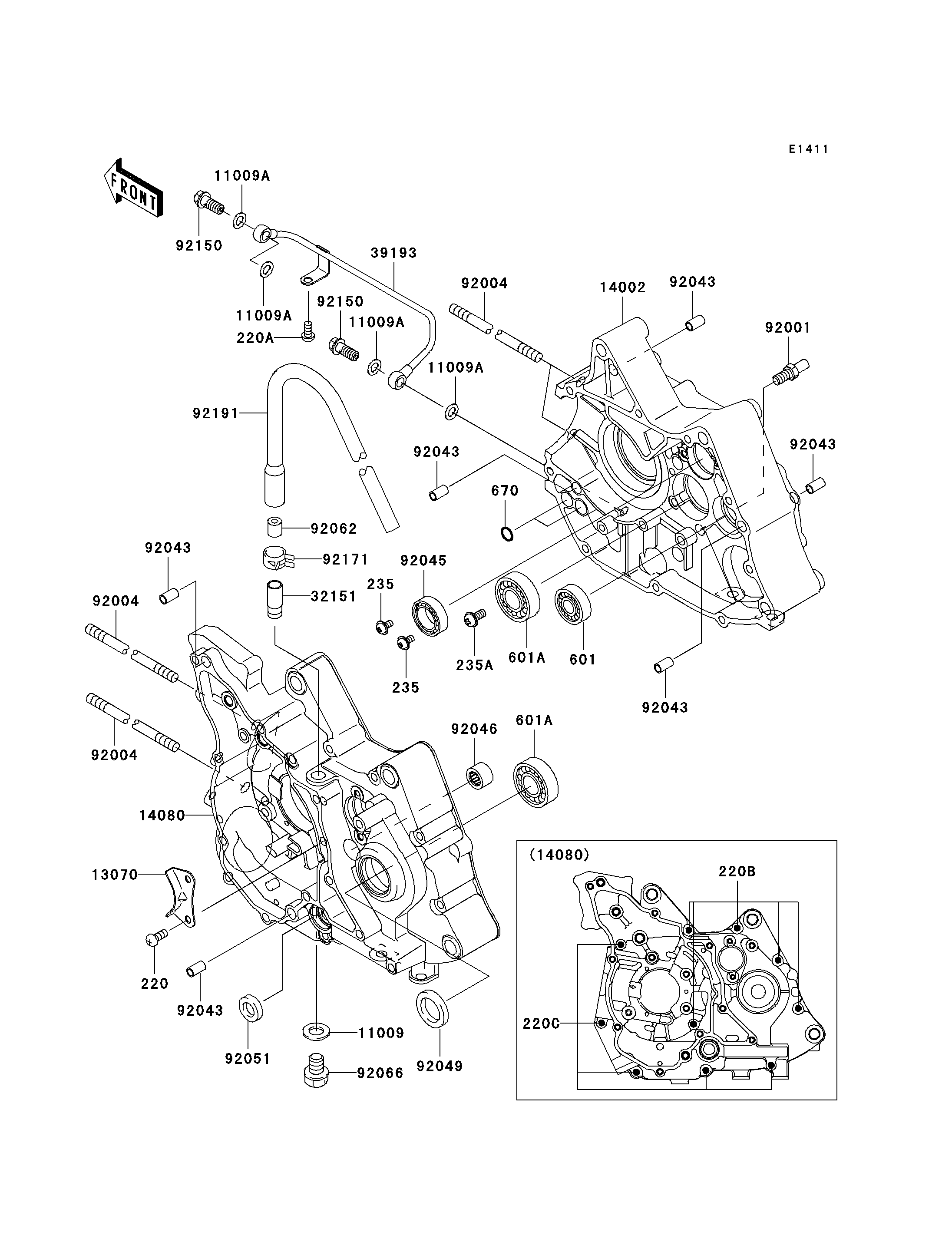

Parts Diagrams |
220
220A
220B
220C
235
235
235A
601
601A
601A
670
11009
11009A
11009A
11009A
11009A
13070
14002
14080
32151
39193
92001
92004
92004
92004
92043
92043
92043
92043
92043
92043
92045
92046
92049
92051
92062
92066
92150
92150
92171
92191
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
SCREW-PAN-CROSS,6X14 | 220 | 220AA0614 | 2 | ||
SCREW-PAN-CROS,6X12 | 220A | 220AD0612 | 1 | ||
SCREW-PAN-CROS,6X50 | 220B | 220AD0650 | 5 | ||
SCREW-PAN-CROS,6X75 | 220C | 220AD0675 | 5 | ||
SCREW-PAN-WP-CROS,5X10 | 235 | 235AA0510 | 2 | ||
SCREW-PAN-WP-CROS,6X14 | 235A | 235AA0614 | 1 | ||
BEARING-BALL | 601 | 601A6201 | 1 | ||
BEARING-BALL,#6203 | 601A | 601A6203 | 2 | ||
O RING,10MM | 670 | 670B1510 | 2 | ||
GASKET,DRAIN PLUG | 11009 | 11009-1332 | 1 | ||
GASKET,8.2X14X1.0 | 11009A | 11009-1344 | 4 | ||
GUIDE | 13070 | 13070-1319 | 1 | ||
CRANKCASE,RH | 14002 | 14002-1971 | 1 | ||
CRANKCASE,LH | 14080 | 14080-0106 | 1 | ||
PIPE | 32151 | 32151-1961 | 1 | ||
PIPE-OIL | 39193 | 39193-1042 | 1 | ||
BOLT,RETURN SPRING | 92001 | 92001-1455 | 1 | ||
STUD,8X190 | 92004 | 92004-1281 | 4 | ||
PIN,6.2X8X14 | 92043 | 92043-1263 | 6 | ||
BEARING-BALL,6804 | 92045 | 92045-1171 | 1 | ||
BEARING-NEEDLE,HK1312 | 92046 | 92046-1148 | 1 | ||
SEAL-OIL,SC22325 | 92049 | 92049-1048 | 1 | ||
SEAL-OIL,TB13225.5 | 92051 | 92051-005 | 1 | ||
NOZZLE,5X11.5X12 | 92062 | 92062-1090 | 1 | ||
PLUG,OIL DRAIN,12X15 | 92066 | 92066-1174 | 1 | ||
BOLT,BANJO,8X20 | 92150 | 92150-1556 | 2 | ||
CLAMP | 92171 | 92171-1055 | 1 | ||
TUBE,BREATHER | 92191 | 92191-1724 | 1 |
SCREW-PAN-CROSS,6X14 | |
REF # | 220 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
SCREW-PAN-CROS,6X12 | |
REF # | 220A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SCREW-PAN-CROS,6X50 | |
REF # | 220B |
---|---|
PART NUMBER | |
QUANTITY | 5 |
DESTINATION | |
REMARKS |
SCREW-PAN-CROS,6X75 | |
REF # | 220C |
---|---|
PART NUMBER | |
QUANTITY | 5 |
DESTINATION | |
REMARKS |
SCREW-PAN-WP-CROS,5X10 | |
REF # | 235 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
SCREW-PAN-WP-CROS,6X14 | |
REF # | 235A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BEARING-BALL | |
REF # | 601 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BEARING-BALL,#6203 | |
REF # | 601A |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
O RING,10MM | |
REF # | 670 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
GASKET,DRAIN PLUG | |
REF # | 11009 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
GASKET,8.2X14X1.0 | |
REF # | 11009A |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
GUIDE | |
REF # | 13070 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
CRANKCASE,RH | |
REF # | 14002 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
CRANKCASE,LH | |
REF # | 14080 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
PIPE | |
REF # | 32151 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
PIPE-OIL | |
REF # | 39193 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BOLT,RETURN SPRING | |
REF # | 92001 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
STUD,8X190 | |
REF # | 92004 |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
PIN,6.2X8X14 | |
REF # | 92043 |
---|---|
PART NUMBER | |
QUANTITY | 6 |
DESTINATION | |
REMARKS |
BEARING-BALL,6804 | |
REF # | 92045 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BEARING-NEEDLE,HK1312 | |
REF # | 92046 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SEAL-OIL,SC22325 | |
REF # | 92049 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SEAL-OIL,TB13225.5 | |
REF # | 92051 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
NOZZLE,5X11.5X12 | |
REF # | 92062 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
PLUG,OIL DRAIN,12X15 | |
REF # | 92066 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BOLT,BANJO,8X20 | |
REF # | 92150 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
CLAMP | |
REF # | 92171 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
TUBE,BREATHER | |
REF # | 92191 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
