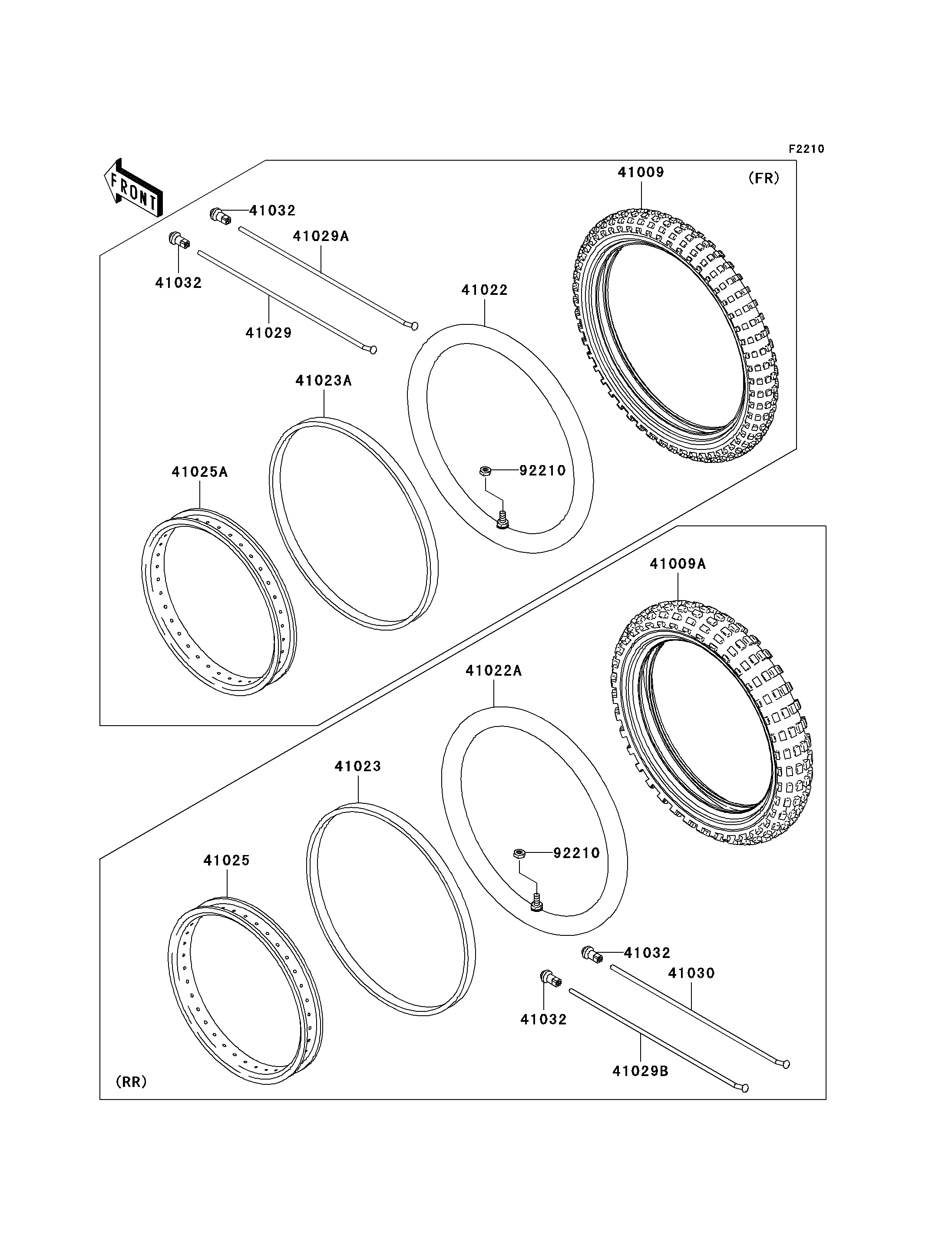

2008 KLX®110 - Wheels/Tires

DOWNLOAD PDF
SELECT A NEW PART
41009
41009A
41022
41022A
41023
41023A
41025
41025A
41029
41029A
41029B
41030
41032
41032
41032
41032
92210
92210
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
TIRE,FR,2.50-14 4PR,C-803(CHEN 41009 41009-1404 1
TIRE,RR,3.00-12 4PR,C-803(CHEN 41009A 41009-1405 1
TUBE-TIRE,2.50-14(CHENG SHIN) 41022 41022-1239 1
TUBE-TIRE,3.00-12(CHENG SHIN) 41022A 41022-1240 1
BAND-RIM,80/100-12(D) 41023 41023-1066 1
BAND-RIM,80/100-14(D) 41023A 41023-1068 1
RIM,RR,1.60X12 41025 41025-0009 1
RIM,FR,1.40X14 41025A 41025-0013 1
SPOKE-INNER,FR,144MMX118D 41029 41029-1067 16
SPOKE-INNER,FR,133.5MMX97D 41029A 41029-1068 16
SPOKE-INNER,RR,98MMX105.5D 41029B 41029-1329 18
SPOKE-OUTER,RR,98MMX77.5D 41030 41030-1182 18
NIPPLE-SPOKE 41032 41032-0004 68
NUT 92210 92210-1371 2
