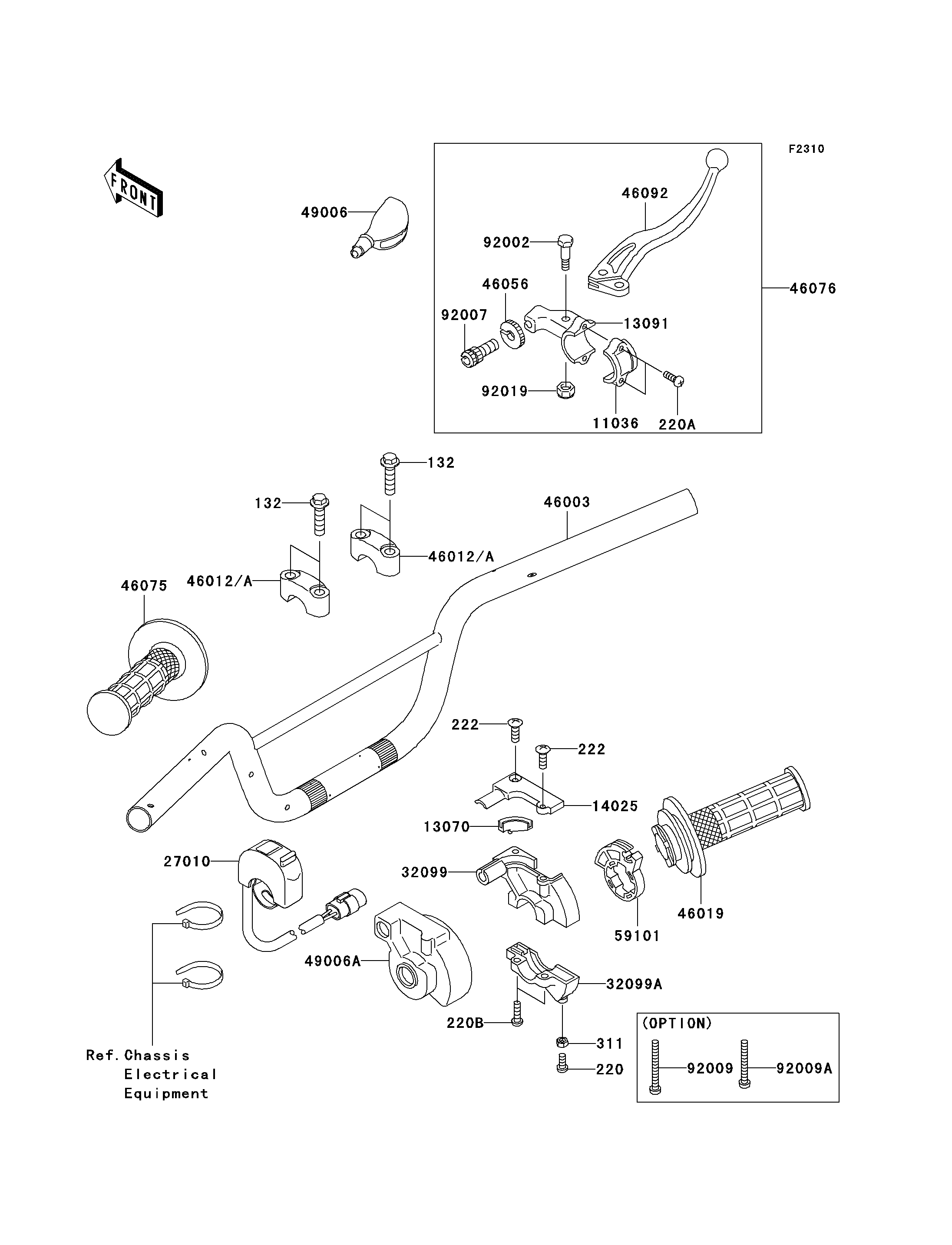

2008 KLX®110 - Handlebar

DOWNLOAD PDF
SELECT A NEW PART
132
132
220
220A
220B
222
222
311
11036
13070
13091
14025
27010
32099
32099A
46003
46012A
46012A
46019
46056
46075
46076
46092
49006
49006A
59101
92002
92007
92009
92009A
92019
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED-SMALL,8X30 132 132BA0830 4
SCREW-PAN-CROS,5X12 220 220AB0512 1
SCREW-PAN-CROSS,5X14 220A 220AB0514 2
SCREW-PAN-CROS,5X18 220B 220AB0518 2
SCREW-CSK-RD-CROS,4X12 222 222E0412 2
NUT-HEX 311 311AB0500 1
BRACKET-A,LEVER HOLDER 11036 11036-1297 1
GUIDE,THROTTLE PEACE 13070 13070-1117 1
HOLDER,BRAKE LEVER 13091 13091-1135 1
COVER,THROTTLE CASE UPP 14025 14025-1646 1
SWITCH,ENGINE STOP 27010 27010-1332 1
CASE,THROTTLE UPP 32099 32099-1036 1
CASE,THROTTLE,LWR 32099A 32099-1220 1
HANDLE,P.SILVER 46003 46003-0056-458 1
HOLDER-HANDLE,UPP,P.SILVER 46012A 46012-0011-458 2
GRIP-ASSY,THROTTLE 46019 46019-1054 1
NUT,CABLE ADJUST 46056 46056-006 1
GRIP,LH 46075 46075-1024 1
LEVER-ASSY-GRIP,RH 46076 46076-1107 1
LEVER-GRIP,BRAKE 46092 46092-1048 1
BOOT,LEVER HOLDER 49006 49006-1017 1
BOOT,THROTTLE CASE 49006A 49006-1097 1
REEL,THROTTLE 59101 59101-1104 1
BOLT,LEVER SET 92002 92002-1150 1
SCREW,CABLE ADJUST,7MM 92007 92007-1143 1
SCREW,5X47 92009 92009-1989 1 (OPTION)
SCREW,5X42 92009A 92009-1998 1 (OPTION)
NUT,LOCK,6MM 92019 92019-008 1
