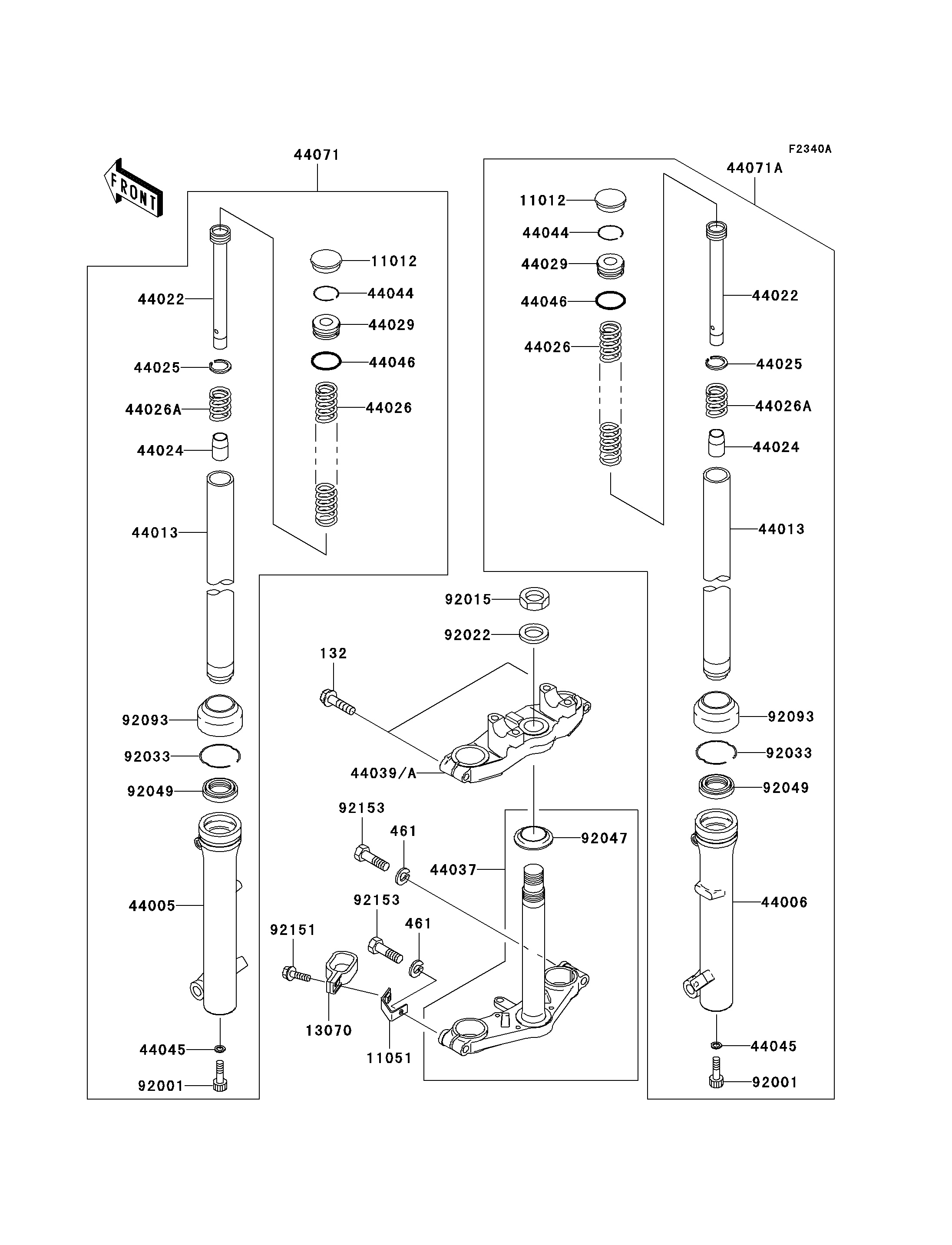

2008 KLX®110 - Front Fork(A7F-A9FA)

DOWNLOAD PDF
SELECT A NEW PART
132
461
461
11012
11012
11051
13070
44005
44006
44013
44013
44022
44022
44024
44024
44025
44025
44026
44026
44026A
44026A
44029
44029
44037
44039
44044
44044
44045
44045
44046
44046
44071
44071A
92001
92001
92015
92022
92033
92033
92047
92049
92049
92093
92093
92151
92153
92153
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED-SMALL,8X35 132 132BA0835 2
WASHER-SPRING,10MM 461 461DA1000 2
CAP,RUBBER,FORK TOP 11012 11012-1067 2
BRACKET,BRAKE HOSE GUIDE 11051 11051-1892 1
GUIDE,BRAKE HOSE 13070 13070-1349 1
PIPE-LEFT FORK OUTER,P.SILVER 44005 44005-0039-458 1
PIPE-RIGHT FORK OUTER,P.SILVER 44006 44006-0038-458 1
PIPE-FORK INNER 44013 44013-0018 2
CYLINDER-FORK 44022 44022-1346 2
CAP-OIL-LOCK 44024 44024-1071 2
RING-FORK PISTON 44025 44025-1061 2
SPRING-FRONT FORK 44026 44026-0034 2
SPRING-FRONT FORK,REBOUND 44026A 44026-060 2
SEAT-FORK SPRING 44029 44029-022 2
HOLDER-FORK UNDER 44037 44037-0016 1
HOLDER-FORK UPPER 44039 44039-0013 1
RING-SNAP 44044 44044-023 2
GASKET,FORK CYLINDER BOLT 44045 44045-051 2
RING-O 44046 44046-025 2
DAMPER-ASSY,FORK,LH,P.SILVER 44071 44071-0266-458 1
DAMPER-ASSY,FORK,RH,P.SILVER 44071A 44071-0267-458 1
BOLT,FORK CYLINDER 92001 92001-1464 2
NUT,STEERING STEM,22MM 92015 92015-1653 1
WASHER,STEERING STEM 92022 92022-1873 1
RING-SNAP,FORK OUTER TUBE 92033 92033-1028 2
RACE,STEERING STEM BEARING 92047 92047-013 1
SEAL-OIL,FORK OUTER TUBE 92049 92049-1069 2
DUST SHIELD,FORK 92093 92093-1054 2
BOLT,FLANGED,5X16 92151 92151-1637 1
BOLT,10X35 92153 92153-1199 2
